Eaton Bussmann

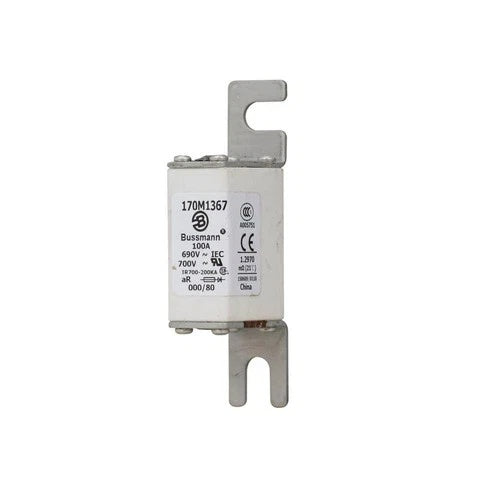

Bussmann 170M1367 Fuse

PRODUCT PRICE USD

$29.01

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1367
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	100 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Bolt Down
Standards	IEC 60269, DIN 43653

Key Features

100 A Amperage Rating

Published specifications identify a 100 A current rating for the 170M1367 fuse.

High Speed Fault Clearing

Designed as a high speed fuse to rapidly interrupt fault currents and protect semiconductors.

200 kA Breaking Capacity

Rated for 200 kA breaking capacity to handle severe fault conditions in industrial circuits.

gR Full-Range Class

Class gR provides full-range protection for both overload and short-circuit events.

Applications

Semiconductor protection
DC bus systems
Power converters
Rectifier circuits
DC drives
Industrial power electronics

Purchase Information

We support online purchase of the Bussmann 170M1367 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1367? The 170M1367 is a high speed square body fuse from the 170M series, rated 100 A and 690 V AC.

What is the amperage rating? The amperage rating is 100 A.

What is the voltage rating? It is rated for 690 V AC.

What is the breaking capacity? The breaking capacity is 200 kA.

What is the fuse class? It is Class gR.

What is the fuse size? The fuse size is DIN 000.

How is it mounted? It is a bolt-down mounted blade fuse.

What are its typical applications? It is used for semiconductor protection, DC bus protection, and in converters and rectifiers.

Need help confirming a model?

Send us your part number and technical requirements.

Contact Our Team

Technical Specifications

Brand	Bussmann
Model Number	170M1367
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	100 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Bolt Down
Standards	IEC 60269, DIN 43653
