Eaton Bussmann

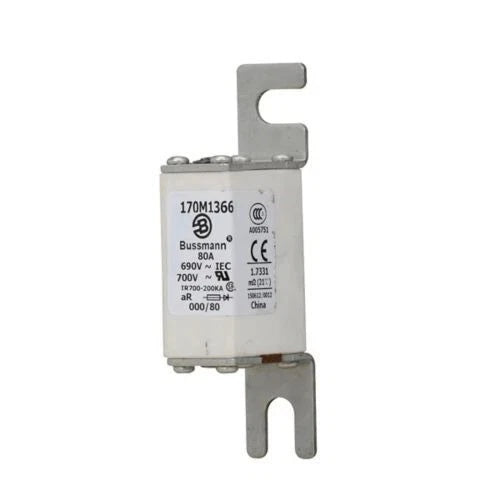

Bussmann 170M1366 Fuse

PRODUCT PRICE USD

$34.65

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1366
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	80 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA at 690 V
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Bolt Down
Standards	IEC 60269, DIN 43653

Key Features

80 A High Speed Rating

Published specifications identify an 80 A amperage rating for this 170M series square body fuse.

200 kA Breaking Capacity

Provides 200 kA breaking capacity at 690 V for high fault current interruption.

gR Protection Class

Class gR full-range high speed fuse suitable for semiconductor and DC bus protection.

DIN 000 Square Body

Square body blade fuse in DIN 000 size with bolt-down mounting style.

Applications

Semiconductor protection
DC bus protection
Converters and rectifiers
DC drive systems
Industrial power supplies
Power electronics circuits

Purchase Information

We support online purchase of the Bussmann 170M1366 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1366? The 170M1366 is a high speed square body blade fuse from the Bussmann 170M series, DIN 000 size, gR class.

What is the current rating? The current rating is 80 A.

What is the voltage rating? It is rated for 690 V AC.

What is the breaking capacity? The breaking capacity is 200 kA at 690 V.

What is the fuse class? It is Class gR.

What fuse size is used? The fuse size is DIN 000.

How is the fuse mounted? It uses a bolt-down mounting style with blade end terminals.

What applications does this fuse serve? It is used for semiconductor protection, DC bus protection, and in converters and rectifiers.

Need help confirming a model?

Send us your part number and technical requirements.

Contact Our Team

Technical Specifications

Brand	Bussmann
Model Number	170M1366
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	80 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA at 690 V
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Bolt Down
Standards	IEC 60269, DIN 43653
