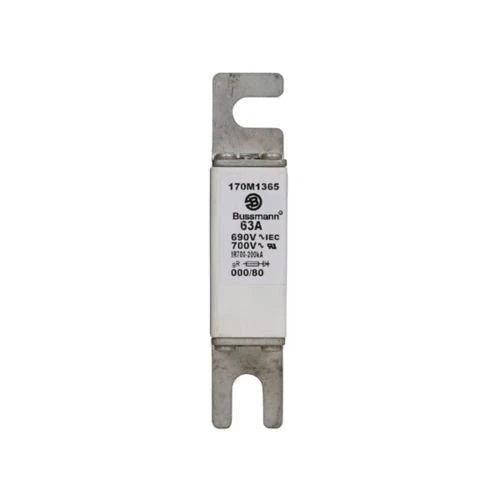

Bussmann 170M1365 Fuse

PRODUCT PRICE USD

$28.91

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1365
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	63 A
Voltage Rating AC	690 V (IEC), 700 V (UL)
Breaking Capacity	200 kA
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End X Blade End
Mounting Style	Bolt Down
Standards	IEC 60269, DIN 43620, UL Recognized, CE Marked, RoHS Compliant

Key Features

High Speed Square Body Design

Eaton Bussmann series high speed square body fuse with 63 A rating, optimized for semiconductor protection.

200 kAIC Interrupting Rating

Provides a 200 kA interrupting capacity at 690 V (IEC) and 700 V (UL) for robust fault protection.

Top Fuse Status Indicator

Equipped with a top fuse status indicator for visual identification of fuse operation.

Class gR Utilization

Class gR full-range protection for semiconductor and DC applications requiring high speed clearing.

Applications

Semiconductor protection
DC bus protection
Power converters
Rectifiers
DC drive systems
Industrial power electronics

Purchase Information

We support online purchase of the Bussmann 170M1365 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
