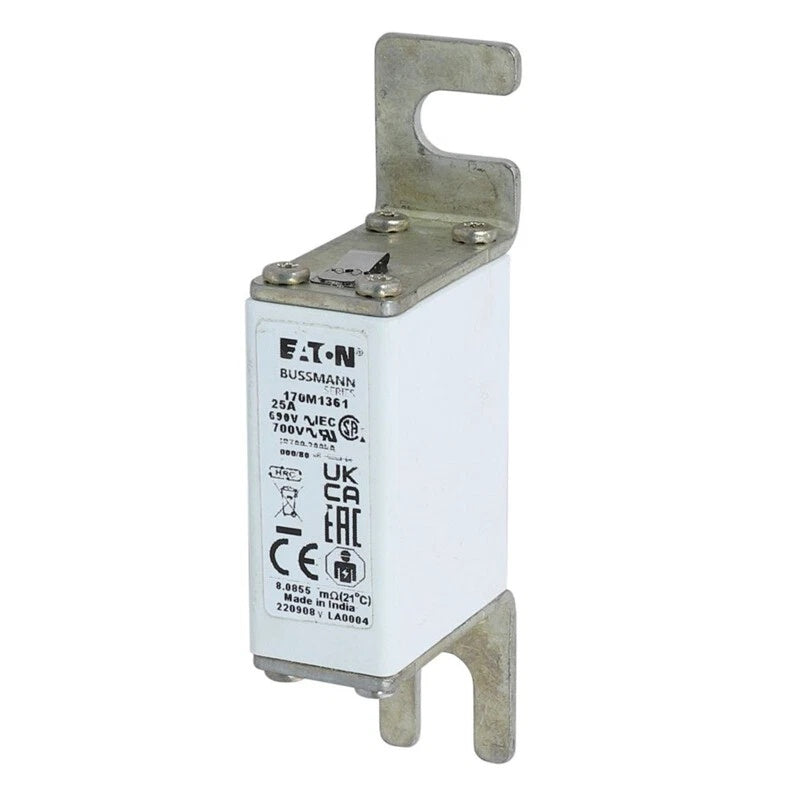

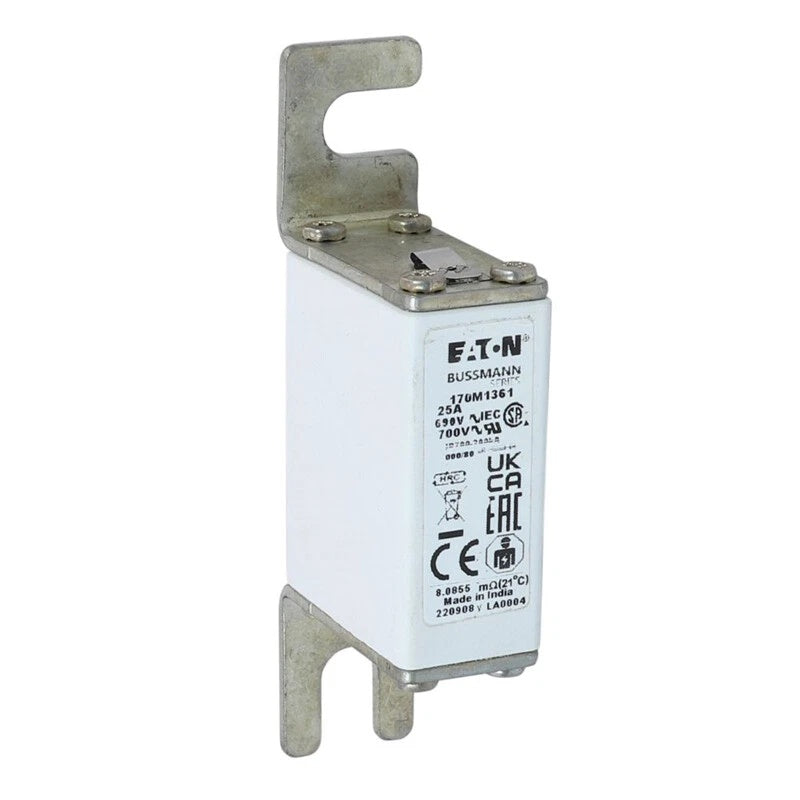

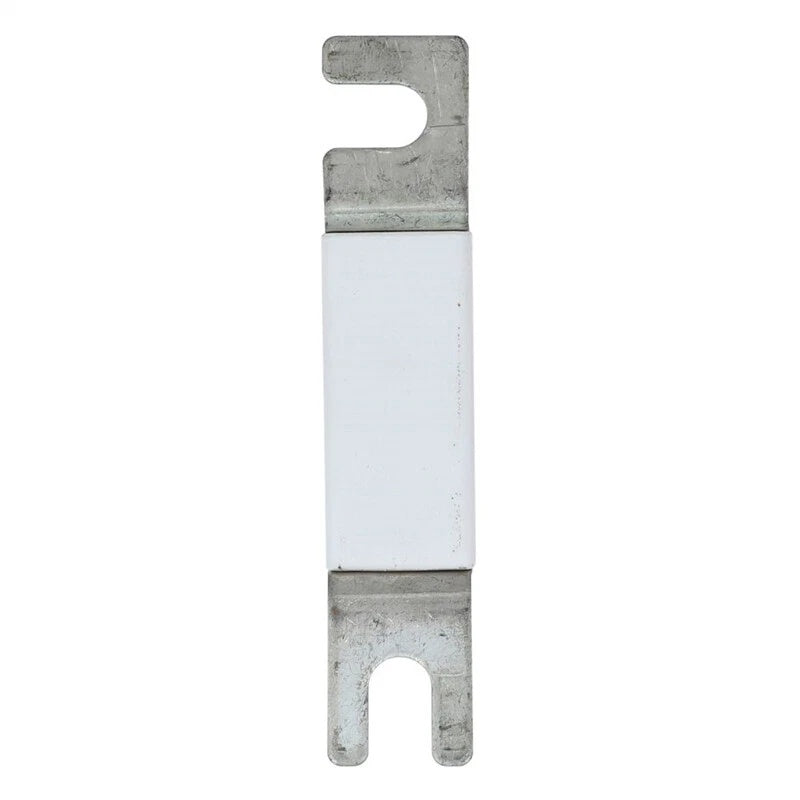

Bussmann 170M1361 Fuse

PRODUCT PRICE USD

$50.96

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1361
Product Category	High Speed Square Body Fuse
Product Family	170M Series
Amperage Rating	25 A
Voltage Rating	690 V (IEC) / 700 V (UL)
Voltage Type	AC
Breaking Capacity	200 kA
Class	gR
Fuse Size	000
Clearing I²t at 660 V	130 A²s
Watt Losses	9 W
Fuse Type	DIN 43653 /80, single indicator
Mounting	Bolted tag
Product Length/Depth	105 mm
Product Height	46 mm
Product Width	300 mm
Product Weight	143.4 g

Key Features

25 A gR Fuse

Rated 25 A with gR class for comprehensive semiconductor protection.

690 V AC / 700 V AC

Voltage rating for IEC and UL industrial systems.

200 kA Breaking Capacity

High interrupting rating for demanding fault conditions.

Single Indicator

DIN 43653 /80 body with a single visual indicator.

130 A²s Clearing I²t

Clearing I²t at 660 V for coordinated protection.

DC Bus and Drive Protection

Used in DC common bus, DC drives, and power converter circuits.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters and rectifiers
Industrial variable frequency drives
Power supplies
Battery systems
Renewable energy inverters

Purchase Information

We support online purchase of the Bussmann 170M1361 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
