20 A gR Protection
gR class fuse rated 20 A for overload and short-circuit protection of power semiconductors.
1 / 3
Eaton Bussmann

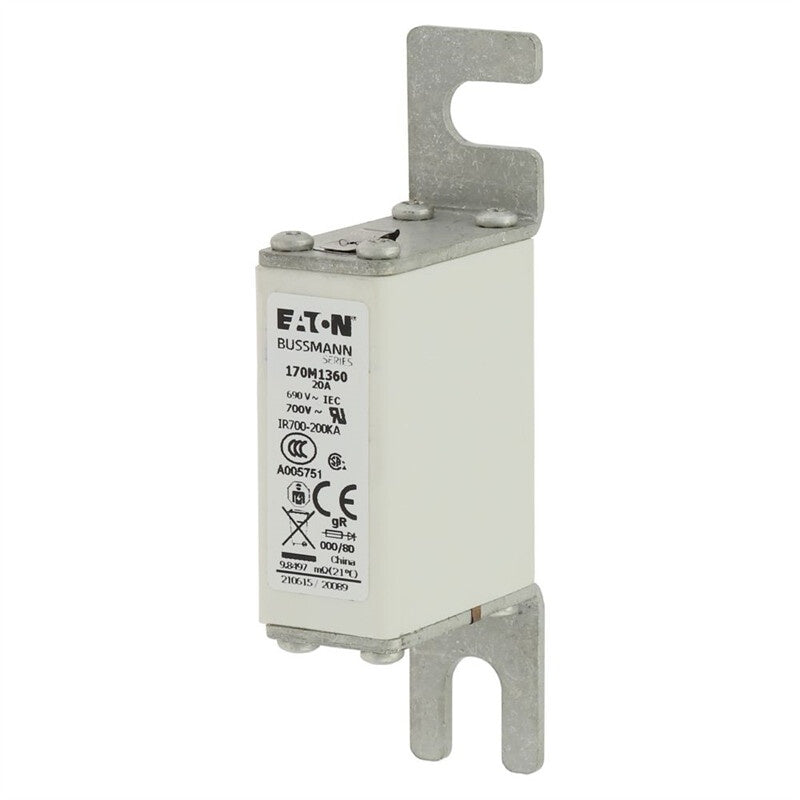

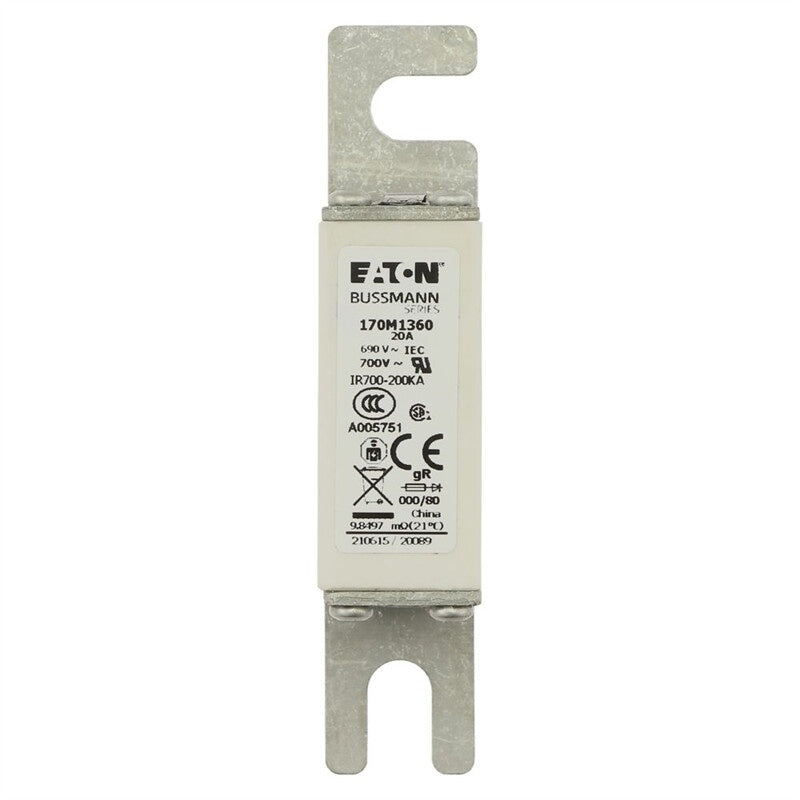

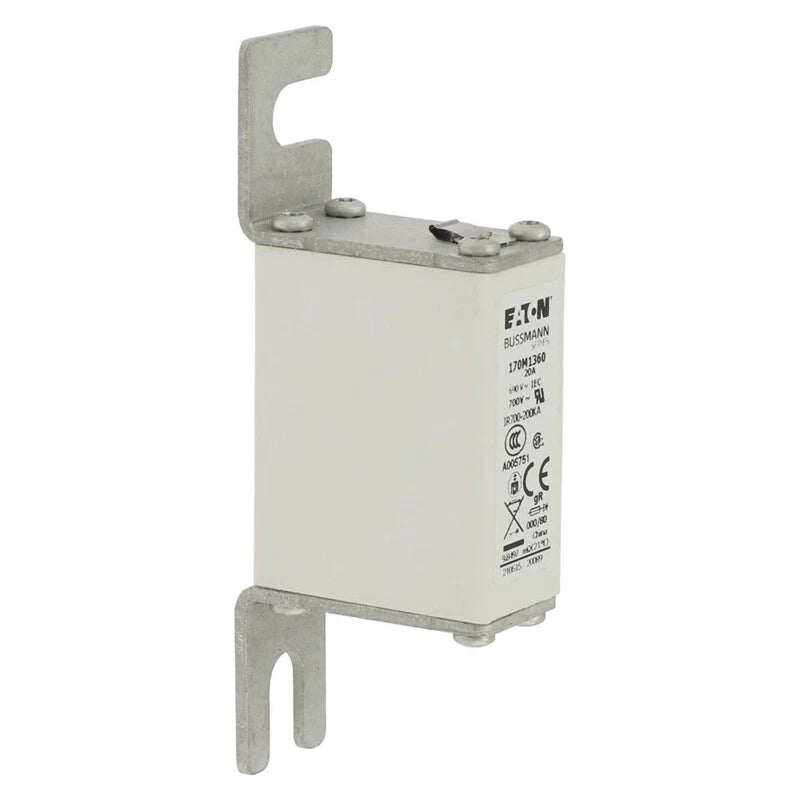

Bussmann 170M1360 Fuse
PRODUCT PRICE
USD
$48.56
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Bussmann |
| Model Number | 170M1360 |
| Product Category | High Speed Square Body Fuse |
| Product Family | 170M Series |
| Amperage Rating | 20 A |
| Voltage Rating | 690 V (IEC) / 700 V (UL) |
| Voltage Type | AC |
| Breaking Capacity | 200 kA |
| Class | gR |
| Fuse Size | 000 |
| Clearing I²t at 660 V | 78 A²s |
| Pre-arc I²t | 11.5 A²s |
| Watt Losses | 7 W |
| Fuse Type | DIN 43653 /80, single indicator |
| Mounting | Bolted tag |
| Product Length/Depth | 105 mm |
| Product Height | 46 mm |
| Product Width | 300 mm |
Key Features
690 V AC / 700 V AC
Dual voltage rating for IEC and UL applications.
200 kA Breaking Capacity
High fault current interruption capability.
Single Indicator
DIN 43653 /80 body with a single visual indicator.
Low Watt Loss
7 W power dissipation at rated current.
Semiconductor Applications
Designed for DC common bus, DC drives, and power converters.
Applications
- Semiconductor protection
- DC common bus
- DC drives
- Power converters and rectifiers
- Industrial drives
- Power supplies
- Battery management
- Renewable energy systems
Purchase Information
We support online purchase of the Bussmann 170M1360 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Bussmann 170M1360? The 170M1360 is a high speed square body fuse rated 20 A at 690 V AC (IEC) / 700 V AC (UL).
What is the amperage rating? 20 A.
What is the voltage rating? 690 V AC (IEC) and 700 V AC (UL).
What is the breaking capacity? 200 kA.
What is the clearing I²t at 660 V? 78 A²s.
What is the pre-arc I²t? 11.5 A²s.
What class is the 170M1360? gR.
What indicator does it have? Single indicator, DIN 43653 /80 body.
What is the watt loss? 7 W.
Where is the 170M1360 used? Semiconductor protection, DC bus, DC drives, and power converters.
What should be checked before ordering? Confirm voltage, current, fault level, fuse size, indicator type, and mounting configuration.
Need help confirming a model?
Send us your part number and technical requirements.
