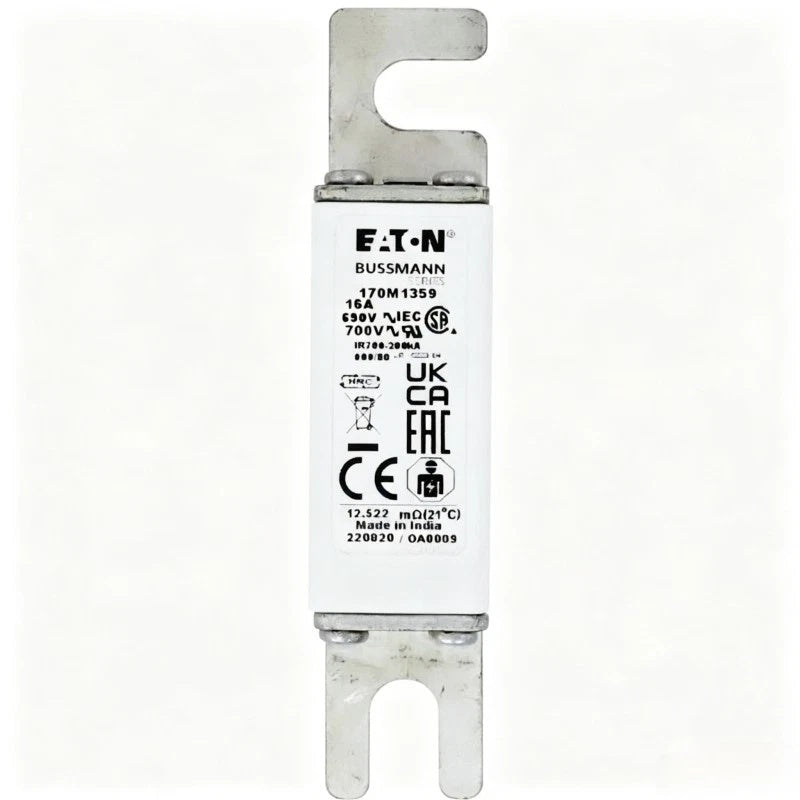

Bussmann 170M1359 Fuse

PRODUCT PRICE USD

$42.88

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1359
Product Category	High Speed Square Body Fuse
Product Family	170M Series
Amperage Rating	16 A
Voltage Rating	690 V (IEC) / 700 V (UL)
Voltage Type	AC
Breaking Capacity	200 kA
Class	gR
Fuse Size	000
Clearing I²t at 660 V	48 A²s
Pre-arc I²t	7.2 A²s
Watt Losses	5.5 W
Fuse Type	DIN 43653 /80, single indicator
Mounting	Bolted tag
Product Length/Depth	105 mm
Product Height	46 mm
Product Weight	144.5 g

Key Features

16 A gR Fuse

Rated 16 A with gR class for full-range semiconductor protection.

690 V AC / 700 V AC

Voltage rating suitable for IEC and UL systems.

200 kA Breaking Capacity

High interrupting rating for industrial fault levels.

Single Indicator

DIN 43653 /80 body with a single visual indicator for fuse status.

Low Power Dissipation

5.5 W watt loss at rated current.

DC Bus and Drive Protection

Used for semiconductor, DC bus, and DC drive circuits.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters and rectifiers
Industrial drives
Power supplies
Control panels
Instrumentation circuits

Purchase Information

We support online purchase of the Bussmann 170M1359 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1359? It is a high speed square body fuse rated 16 A at 690 V AC (IEC) / 700 V AC (UL).

What is the current rating? 16 A.

What is the voltage rating? 690 V AC (IEC) and 700 V AC (UL).

What is the breaking capacity? 200 kA.

What is the clearing I²t at 660 V? 48 A²s.

What is the pre-arc I²t? 7.2 A²s.

What class is the 170M1359? gR.

What type of indicator does it have? Single indicator, DIN 43653 /80 body.

What is the watt loss? 5.5 W.

What applications is it suited for? Semiconductor protection, DC bus, DC drives, and power converters.

What should be verified before purchase? Confirm voltage, current, fault current, fuse size, indicator type, and mounting.
