Eaton Bussmann

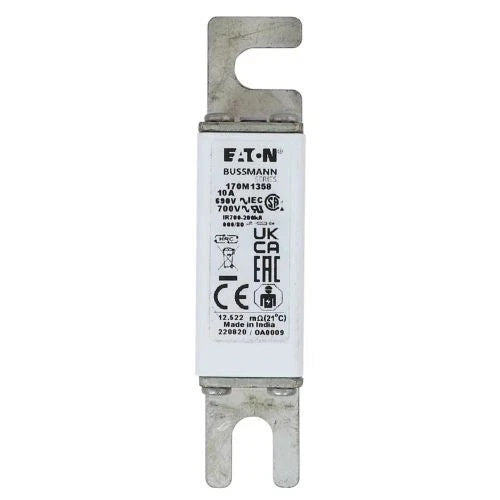

Bussmann 170M1358 Fuse

PRODUCT PRICE USD

$40.52

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1358
Product Category	High Speed Square Body Fuse
Product Family	170M Series
Amperage Rating	10 A
Voltage Rating	690 V (IEC) / 700 V (UL)
Voltage Type	AC
Breaking Capacity	200 kA
Class	gR
Fuse Size	000
Clearing I²t at 660 V	25.5 A²s
Pre-arc I²t	3.8 A²s
Watt Losses	3 W
Fuse Type	DIN 43653 /80, visual indicator
Mounting	Bolted tag
Product Length/Depth	105 mm
Product Height	46 mm
Product Weight	144.5 g

Key Features

10 A gR Fuse

Rated 10 A with gR class for both overload and short-circuit protection of semiconductors.

690 V AC / 700 V AC

Voltage rating for IEC and UL industrial systems.

200 kA Breaking Capacity

High interrupting rating for robust fault protection.

Visual Indicator

DIN 43653 /80 body with a visual indicator for blown fuse identification.

Low Watt Loss

3 W power dissipation at rated current minimizes thermal impact.

Semiconductor Protection

Designed for DC common bus, DC drives, and power converters.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters and rectifiers
Industrial drives
Power supplies
Control circuits
Instrumentation protection

Purchase Information

We support online purchase of the Bussmann 170M1358 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1358? The 170M1358 is a high speed square body fuse rated 10 A at 690 V AC (IEC) / 700 V AC (UL).

What is the amperage rating? 10 A.

What is the voltage rating? 690 V AC (IEC) and 700 V AC (UL).

What is the breaking capacity? 200 kA.

What is the clearing I²t at 660 V? 25.5 A²s.

What is the pre-arc I²t? 3.8 A²s.

What class is the 170M1358? gR.

Does it have a visual indicator? Yes, it has a visual indicator and uses a DIN 43653 /80 body.

What is the watt loss? 3 W.

What applications use the 170M1358? Semiconductor protection, DC bus, DC drives, and power converters.

What should be checked before ordering? Verify voltage, current, fault level, fuse size, indicator requirement, and mounting compatibility.
