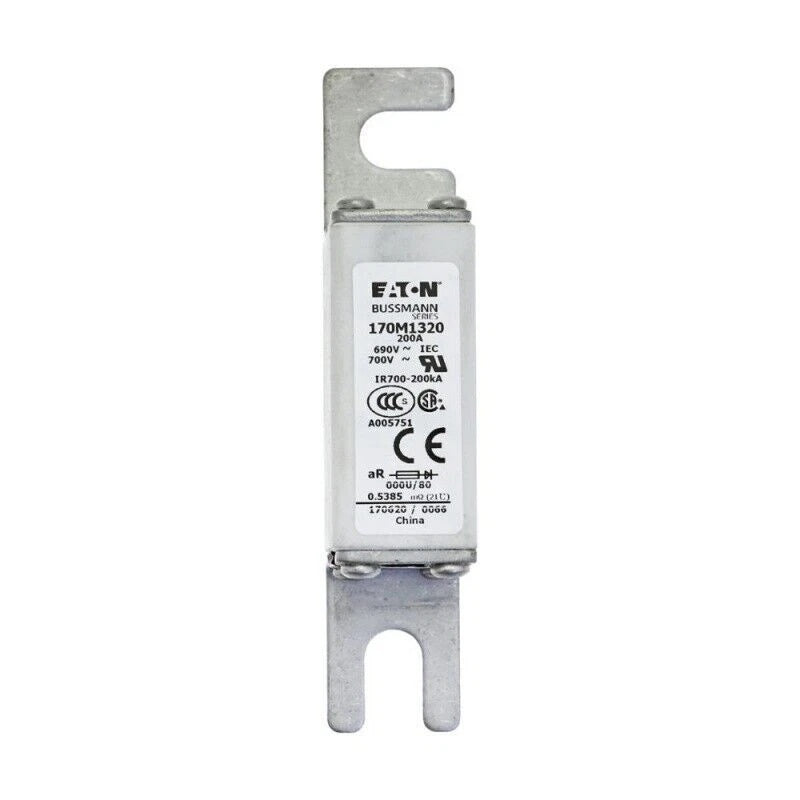

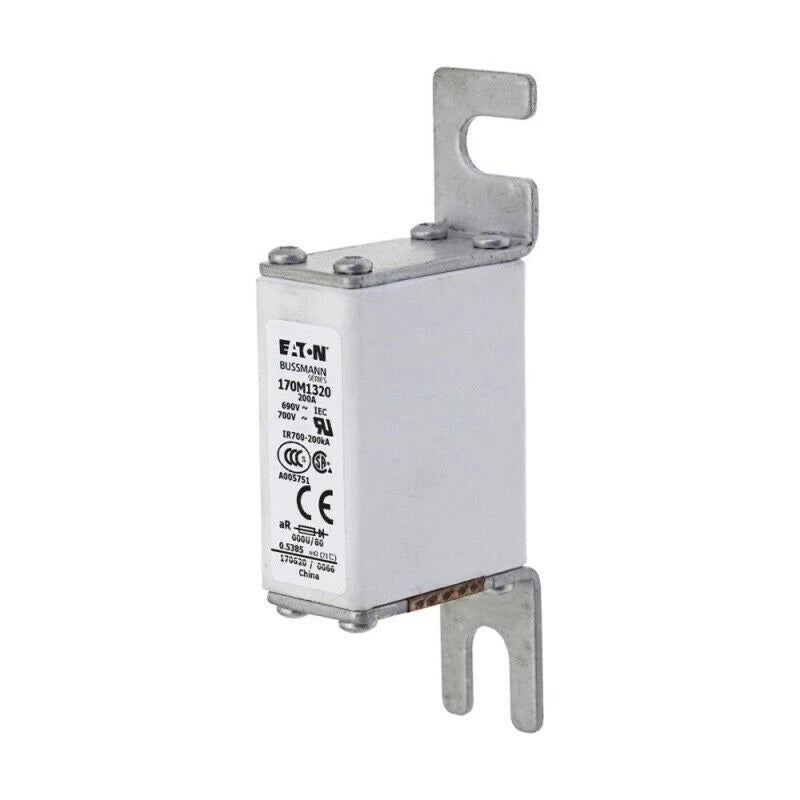

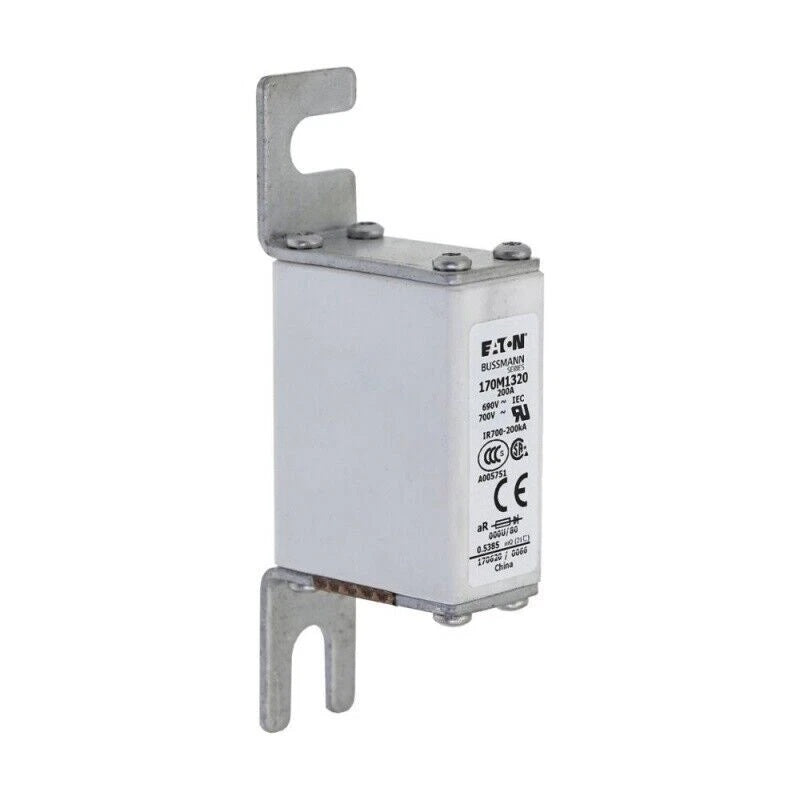

Bussmann 170M1320 Fuse

PRODUCT PRICE USD

$47.98

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1320
Product Category	High Speed Square Body Fuse
Product Family	170M Series
Amperage Rating	200 A
Voltage Rating	690 V (IEC) / 700 V (UL)
Voltage Type	AC
Breaking Capacity	200 kA
Class	aR
Fuse Size	000
Clearing I²t at 660 V	28000 A²s
Pre-arc I²t	4200 A²s
Watt Losses	37 W
Fuse Type	DIN 43653 U/80, without indicator, bolted tag
Mounting	Bolted tag
Product Length/Depth	105 mm
Product Height	46 mm
Product Weight	145.3 g

Key Features

200 A High Speed Fuse

Rated 200 A with aR class for fast short-circuit protection of power semiconductors.

690 V AC Rating

Voltage rating of 690 V AC (IEC) and 700 V AC (UL).

200 kA Breaking Capacity

High interrupting rating for industrial fault levels.

Square Body DIN 43653

Size 000 square body with bolted tag terminals.

28000 A²s Clearing I²t

Clearing I²t of 28000 A²s at 660 V for coordinated protection.

DC Bus Applications

Designed for DC common bus, DC drives, and power converters.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters and rectifiers
Industrial variable frequency drives
Power supplies
Battery energy storage
Renewable energy systems
