Eaton Bussmann

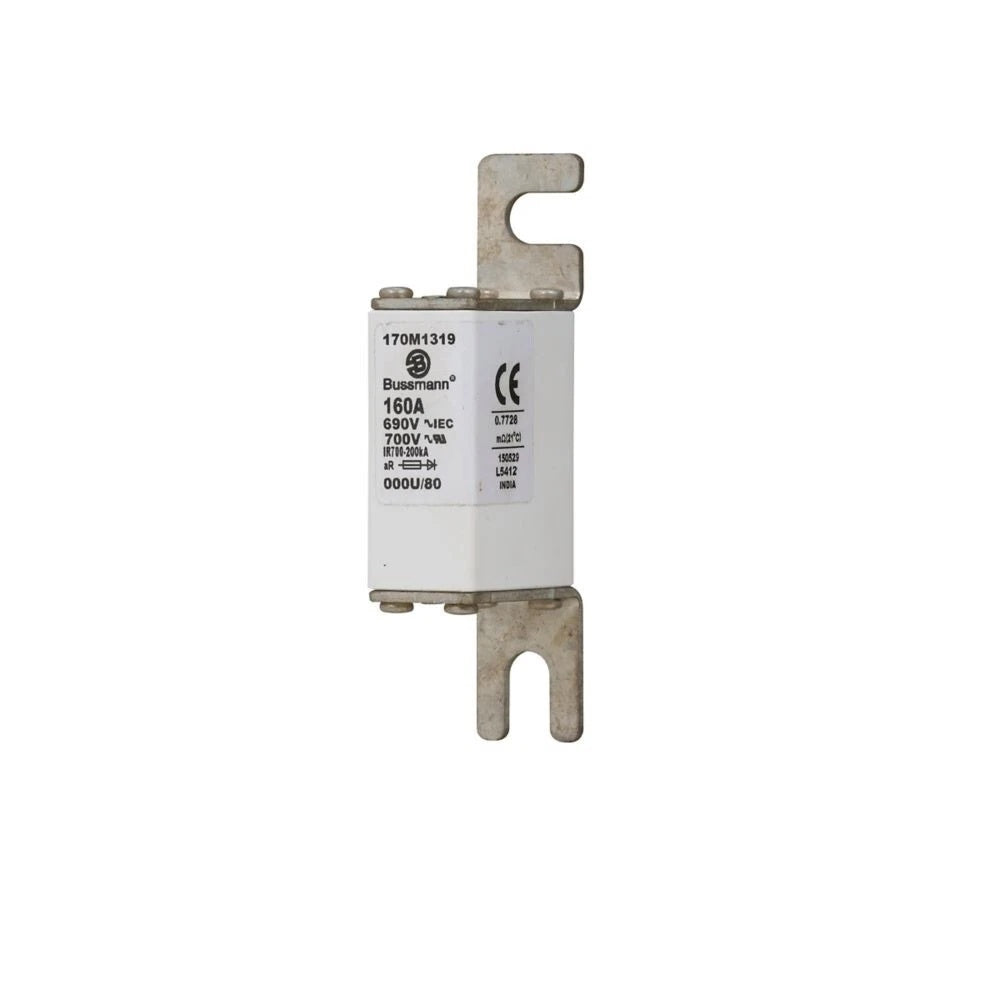

Bussmann 170M1319 Fuse

PRODUCT PRICE USD

$31.85

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1319
Product Category	High Speed Square Body Fuse
Product Family	170M Series
Amperage Rating	160 A
Voltage Rating	690 V (IEC) / 700 V (UL)
Voltage Type	AC
Breaking Capacity	200 kA
Class	aR
Fuse Size	000
Clearing I²t at 660 V	16000 A²s
Pre-arc I²t	2300 A²s
Watt Losses	32 W
Fuse Type	DIN 43653 U/80, without indicator, bolted tag
Mounting	Bolted tag
Product Length/Depth	105 mm
Product Height	46 mm

Key Features

160 A aR Fuse

High speed aR fuse rated 160 A for semiconductor and DC link protection.

690 V AC / 700 V AC

Compatible with IEC 690 V and UL 700 V AC systems.

200 kA Breaking Capacity

Robust fault current interruption for industrial power circuits.

DIN 43653 U/80 Body

Square body with bolted tag terminals and no visual indicator.

32 W Watt Loss

Moderate power dissipation at rated current supports thermal management.

DC Drive Protection

Suited for DC common bus, DC drives, and power converter applications.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters and rectifiers
Industrial drives
Uninterruptible power supplies
Battery systems
Solar inverters

Purchase Information

We support online purchase of the Bussmann 170M1319 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1319? It is a high speed square body fuse rated 160 A at 690 V AC (IEC) / 700 V AC (UL) from the 170M series.

What is the amperage rating? 160 A.

What is the voltage rating? 690 V AC (IEC) and 700 V AC (UL).

What is the breaking capacity? 200 kA.

What is the clearing I²t at 660 V? 16000 A²s.

What is the pre-arc I²t? 2300 A²s.

What class is the 170M1319? aR.

What is the mounting style? DIN 43653 U/80 bolted tag, without indicator.

What is the watt loss? 32 W.

What applications is it designed for? Semiconductor, DC bus, DC drives, and power converters.

What should be verified before ordering? Confirm voltage, current, fault level, fuse size, terminal configuration, and indicator requirements.
