Eaton Bussmann

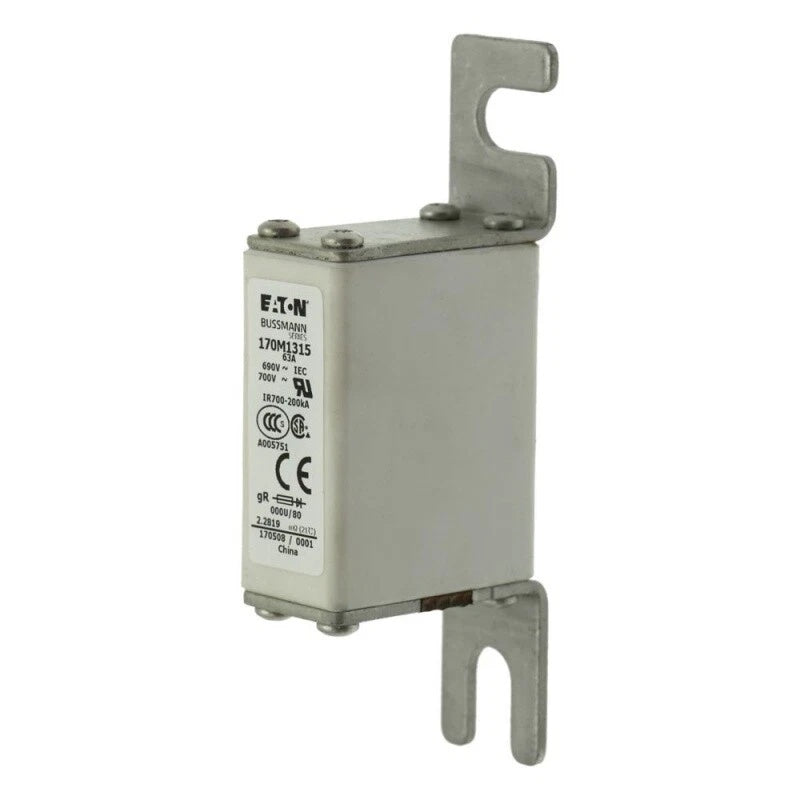

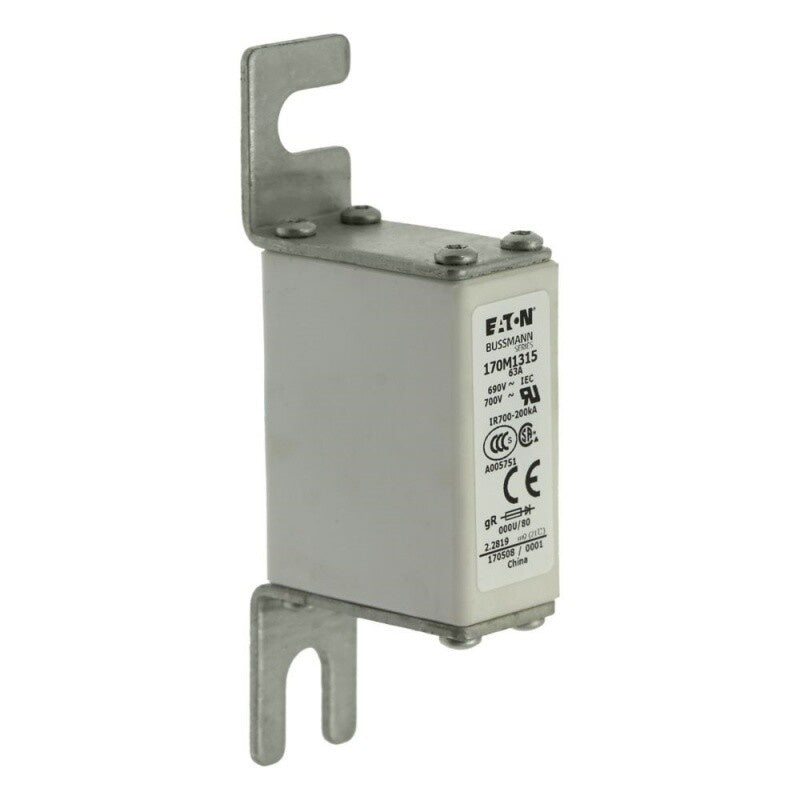

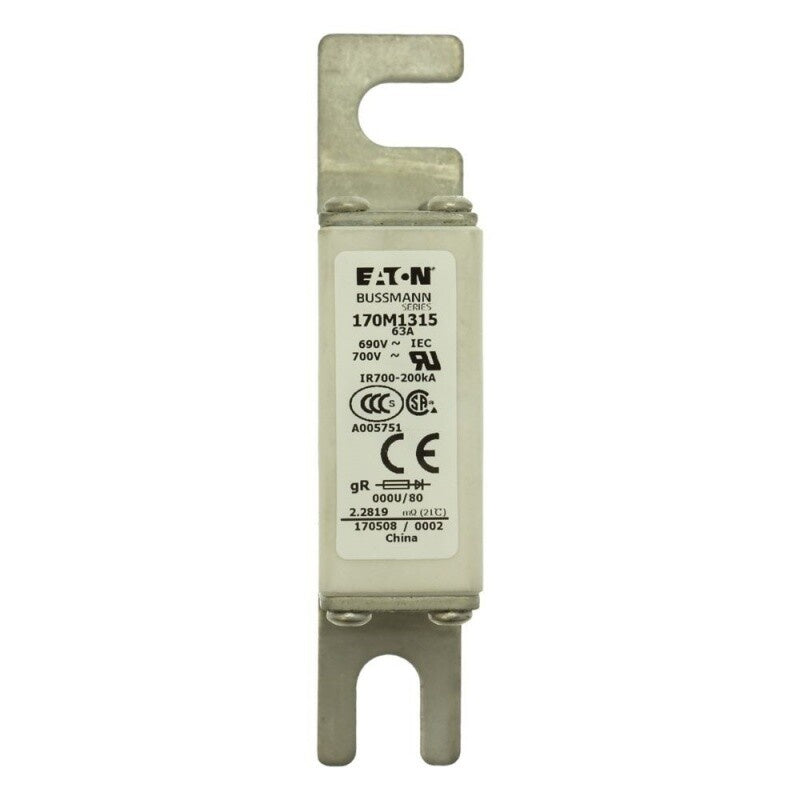

Bussmann 170M1315 Fuse

PRODUCT PRICE USD

$34.19

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1315
Product Category	High Speed Square Body Fuse
Product Family	170M Series
Amperage Rating	63 A
Voltage Rating	690 V (IEC) / 700 V (UL)
Voltage Type	AC
Breaking Capacity	200 kA
Class	gR
Fuse Size	000
Clearing I²t at 660 V	1450 A²s
Pre-arc I²t	215 A²s
Watt Losses	16 W
Fuse Type	DIN 43653 U/80, without indicator, bolted tag
Mounting	Bolted tag
Product Length/Depth	105 mm
Product Height	46 mm
Product Weight	137.3 g

Key Features

High Speed Protection

Designed for high-speed interruption of fault currents in semiconductor and DC bus applications.

63 A Current Rating

Rated for 63 A continuous current with a 690 V AC (IEC) / 700 V AC (UL) voltage rating.

200 kA Breaking Capacity

Provides a high interrupting rating of 200 kA for demanding industrial fault conditions.

DIN 43653 U/80 Body

Square body fuse with bolted tag terminals and size 000 dimensions for standardized mounting.

gR Class

gR classification supports both overload and short-circuit protection in semiconductor circuits.

Compact Footprint

Space-saving 105 mm length and 137.3 g weight facilitate installation in dense panel layouts.

Applications

Semiconductor protection
DC common bus protection
DC drives
Power converters and rectifiers
Industrial variable frequency drives
Servo drive systems
Industrial power supplies
Battery management systems

Purchase Information

We support online purchase of the Bussmann 170M1315 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1315? The 170M1315 is a high speed square body fuse from the Bussmann 170M series, rated 63 A at 690 V AC (IEC) / 700 V AC (UL).

What is the voltage rating of the 170M1315? The voltage rating is 690 V AC per IEC and 700 V AC per UL.

What is the amperage rating of the 170M1315? The manufacturer-rated amperage is 63 A.

What is the breaking capacity? The 170M1315 has a breaking capacity of 200 kA.

What is the clearing I²t at 660 V? The clearing I²t is 1450 A²s at 660 V.

What is the fuse size and mounting type? It uses a size 000 body with DIN 43653 U/80 bolted tag mounting and no visual indicator.

What class is the 170M1315? It is classified as gR.

What applications is the 170M1315 suitable for? It is intended for semiconductor protection, DC common bus, DC drives, power converters, and rectifiers.

What is the watt loss at rated current? The watt loss is 16 W.

What are the physical dimensions? The product length/depth is 105 mm, height is 46 mm, and weight is 137.3 g.

What should be checked before ordering? Verify the complete catalog number, system voltage, continuous current, fault current level, fuse size, mounting configuration, and whether a visual indicator is required.
