Eaton Bussmann

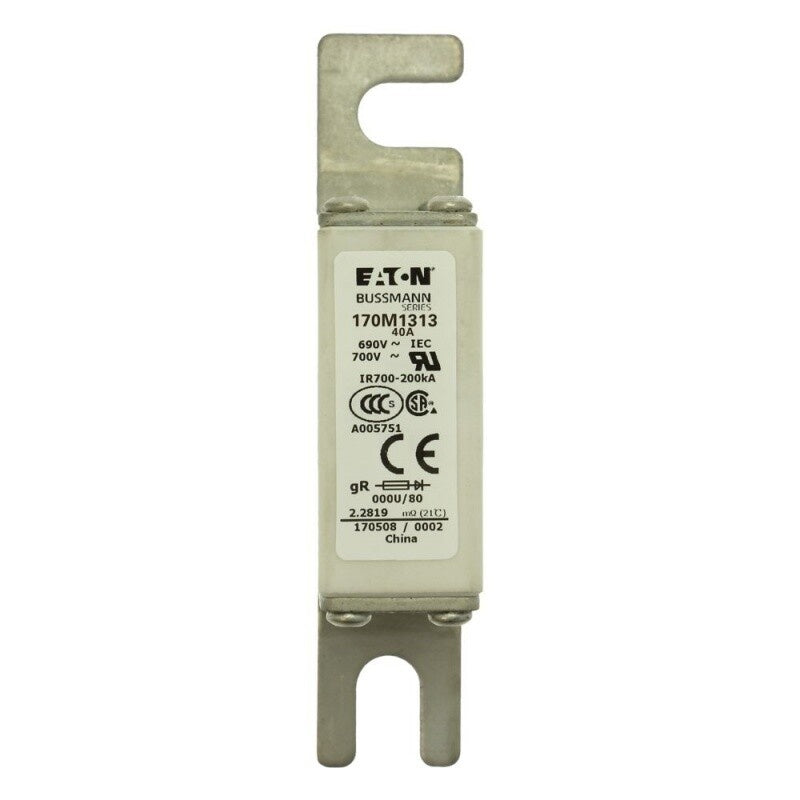

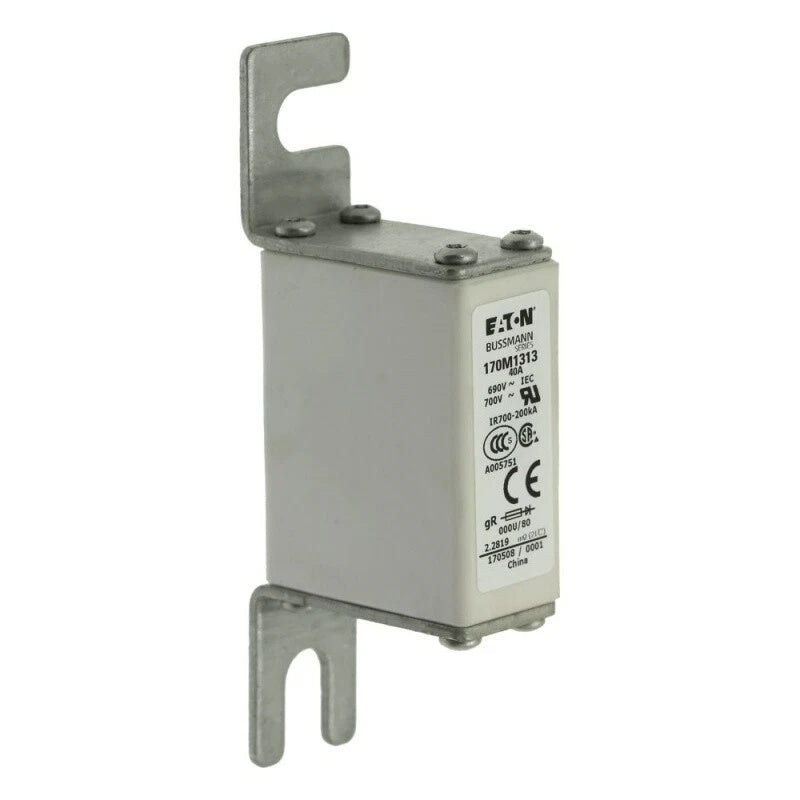

Bussmann 170M1313 Fuse

SKU: LL1-BSM-170M1313

$24.32

Available

PRODUCT GALLERY 01 / 2

✓ Product images for part identification

Eaton Bussmann

Bussmann 170M1313 Fuse

SKU: LL1-BSM-170M1313

PRODUCT PRICE USD

$24.32

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1313
Product Category	High Speed Square Body Fuse
Product Family	170M Series, DIN 43653
Rated Current	40 A
Rated Voltage AC (IEC)	690 V
Rated Voltage AC (UL)	700 V
Operating Class	gR
Interrupt Rating	200 kA RMS Sym.
Fuse Size	000
Fuse Type	DIN 43653 U/80, bolted tag, without indicator
Clearing I2t at 660 V	460 A²s
Pre-Arc I2t	69 A²s
Watt Losses	12 W
Standards	IEC 60269-4; UL Recognized

Key Features

40 A gR High Speed Fuse

Class gR square body fuse rated 40 A for semiconductor protection and DC common bus circuits.

690 V / 700 V AC Rating

Dual IEC and UL voltage rating for international high speed fuse applications.

200 kA Interrupt Rating

Published interrupt rating of 200 kA RMS Symmetrical for high fault current protection.

DIN 43653 Size 000

Size 000 square body, U/80 without indicator, bolted tag construction.

Semiconductor Coordination Data

Pre-arc I2t of 69 A²s and clearing I2t of 460 A²s at 660 V for coordination with protected devices.

12 W Watt Loss

Published watt loss of 12 W at rated current for thermal management in power electronics enclosures.

Applications

Semiconductor protection
DC common bus circuits
DC drive protection
Power converters and rectifiers
Reduced voltage starters
DIN 43653 size 000 fuse installations
Industrial drive systems
Power electronics equipment protection

Purchase Information

We support online purchase of the Bussmann 170M1313 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1313? The 170M1313 is a Bussmann series high speed square body fuse, DIN 43653 size 000, rated 40 A at 690 V AC (IEC) / 700 V AC (UL), Class gR.

What is the rated current of the 170M1313? The rated current is 40 A.

What voltage ratings apply to the 170M1313? The voltage rating is 690 V AC (IEC) and 700 V AC (UL).

What is the operating class of the 170M1313? The operating class is gR.

What is the interrupt rating of the 170M1313? The published interrupt rating is 200 kA RMS Symmetrical.

What I2t values are published for the 170M1313? Pre-arc I2t is 69 A²s and clearing I2t is 460 A²s at 660 V.

What watt loss applies to the 170M1313? The published watt loss is 12 W at rated current.

What fuse size is the 170M1313? The fuse size is 000 under DIN 43653, U/80 without indicator, bolted tag.

Does the 170M1313 have a fuse indicator? No. The 170M1313 is supplied without indicator.

What standards is the 170M1313 designed to? It is designed and tested to IEC 60269-4 and is UL Recognized.

What applications is the 170M1313 associated with? Published applications include semiconductor protection, DC common bus, DC drives, power converters/rectifiers, and reduced voltage starters.

What should be checked before ordering the 170M1313? Check the 40 A continuous current, 690 V AC or 700 V AC system voltage, Class gR coordination, DIN 43653 size 000 mounting, bolted tag connection, and published I2t values against the semiconductor protection requirements.
