Eaton Bussmann

Bussmann 170M1309 Fuse

SKU: LL1-BSM-170M1309

$23.32

Available

PRODUCT GALLERY 01 / 3

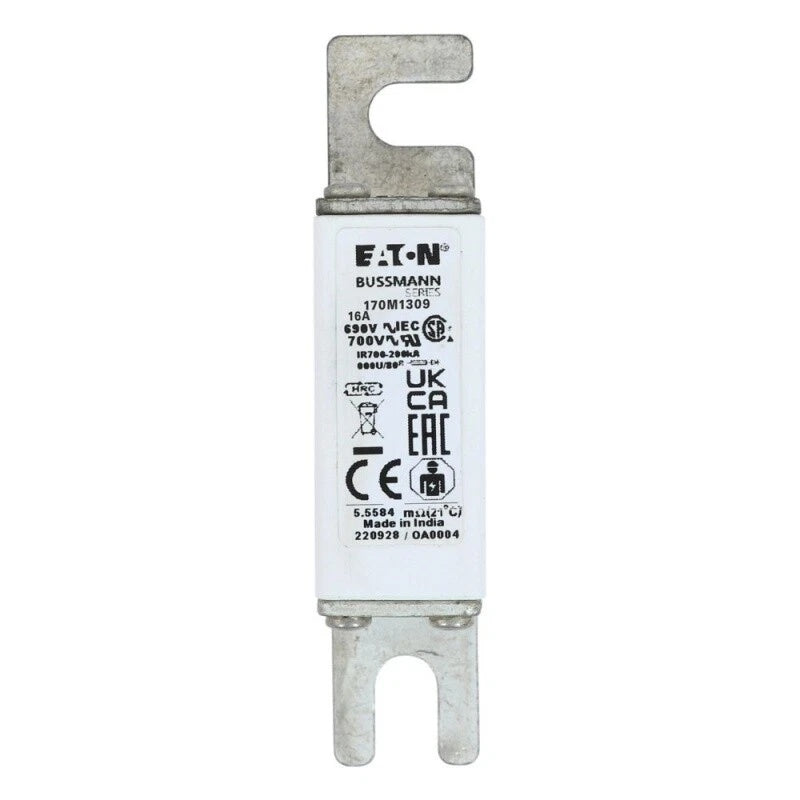

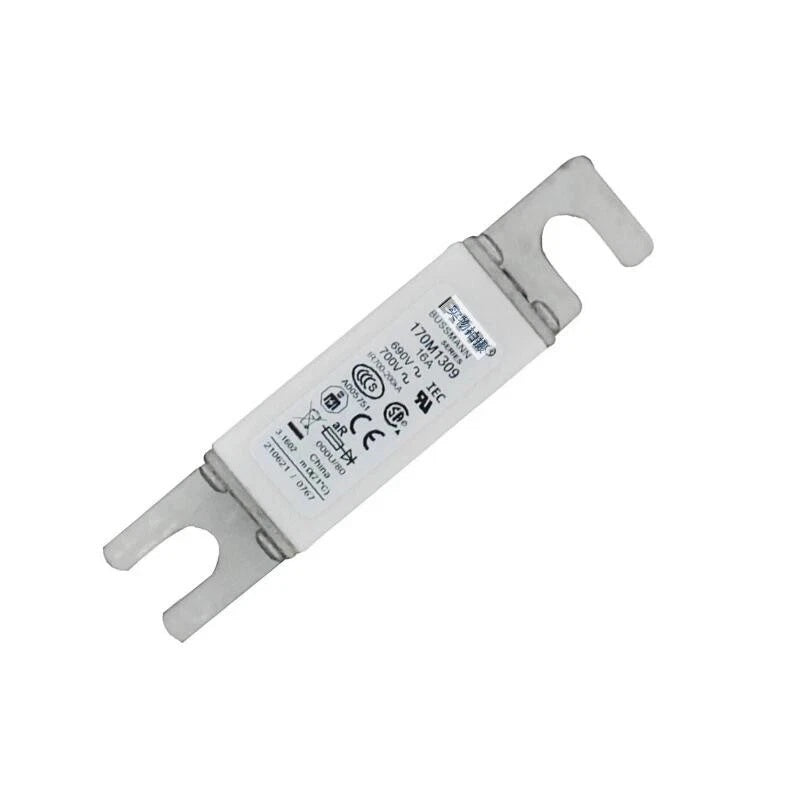

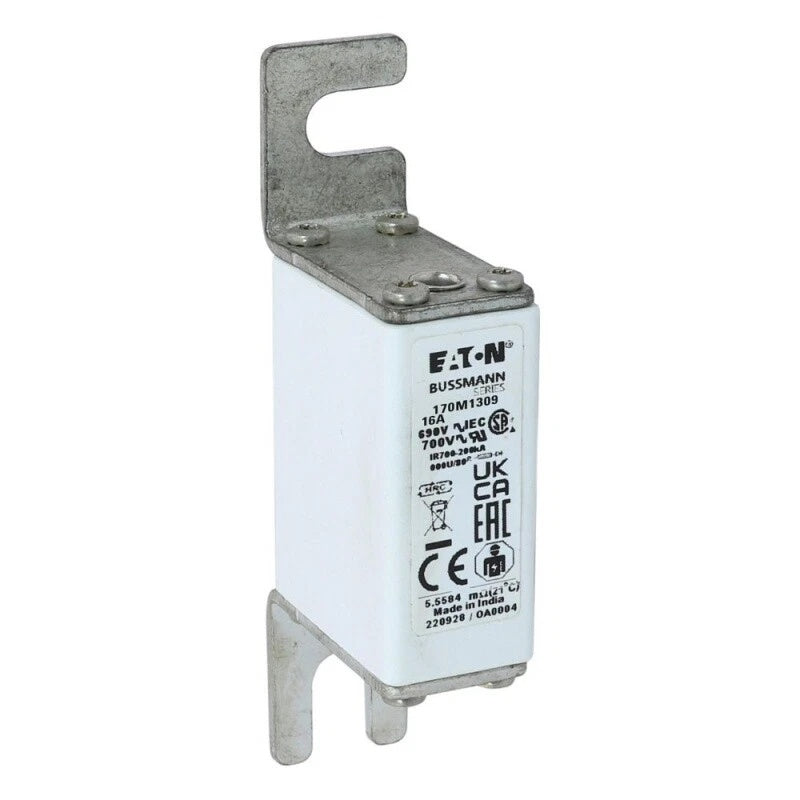

✓ Product images for part identification

Eaton Bussmann

Bussmann 170M1309 Fuse

SKU: LL1-BSM-170M1309

PRODUCT PRICE USD

$23.32

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1309
Product Category	High Speed Square Body Fuse
Product Family	170M Series, DIN 43653
Rated Current	16 A
Rated Voltage AC (IEC)	690 V
Rated Voltage AC (UL)	700 V
Operating Class	gR
Interrupt Rating	200 kA RMS Sym.
Fuse Size	000
Fuse Type	DIN 43653 U/80, bolted tag, without indicator
Clearing I2t at 660 V	48 A²s
Pre-Arc I2t	7.2 A²s
Watt Losses	5.5 W
Standards	IEC 60269-4; UL Recognized

Key Features

16 A gR Semiconductor Protection

Class gR high speed square body fuse rated 16 A, intended for semiconductor and DC bus protection.

690 V / 700 V AC Rating

Dual voltage marking: 690 V AC (IEC) and 700 V AC (UL) for international high speed fuse applications.

200 kA Interrupt Rating

Published interrupt rating of 200 kA RMS Symmetrical for high fault current protection.

DIN 43653 Bolted Tag Format

DIN 43653 U/80 square body construction with bolted tag terminals and no integral indicator.

Low I2t for Semiconductor Coordination

Pre-arc I2t of 7.2 A²s and clearing I2t of 48 A²s at 660 V support semiconductor device coordination.

Low Watt Loss

Published watt loss of 5.5 W at rated current contributes to lower panel heat rise.

Applications

Semiconductor protection
DC common bus circuits
DC drive protection
Power converters and rectifiers
Reduced voltage starters
High speed fuse installations requiring DIN 43653 fuses
Industrial drive systems
Equipment protection in power electronics

Purchase Information

We support online purchase of the Bussmann 170M1309 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1309? The 170M1309 is a Bussmann series high speed square body fuse, DIN 43653 size 000, rated 16 A at 690 V AC (IEC) / 700 V AC (UL), Class gR.

What is the rated current of the 170M1309? The rated current is 16 A.

What voltage ratings apply to the 170M1309? The voltage rating is 690 V AC (IEC) and 700 V AC (UL).

What is the operating class of the 170M1309? The operating class is gR, a high speed partial-range protection class for semiconductor applications.

What is the interrupt rating of the 170M1309? The published interrupt rating is 200 kA RMS Symmetrical.

What fuse size is the 170M1309? The fuse size is 000 under DIN 43653.

What I2t values are published for the 170M1309? Pre-arc I2t is 7.2 A²s and clearing I2t is 48 A²s at 660 V.

What watt loss applies to the 170M1309? The published watt loss is 5.5 W at rated current.

Does the 170M1309 have a fuse indicator? No. The 170M1309 is the U/80 version without indicator.

What standards is the 170M1309 associated with? It is designed and tested to IEC 60269-4 and is UL Recognized.

What applications is the 170M1309 used in? Published applications include semiconductor protection, DC common bus, DC drives, power converters/rectifiers, and reduced voltage starters.

What should be checked before ordering the 170M1309? Confirm the 16 A continuous current requirement, 690 V AC or 700 V AC system voltage, Class gR coordination, DIN 43653 size 000 mounting, bolted tag connection, and I2t suitability for the protected semiconductor device.
