16 A Current Rating
The 170M1309 high speed square body fuse has a documented current rating of 16 A.

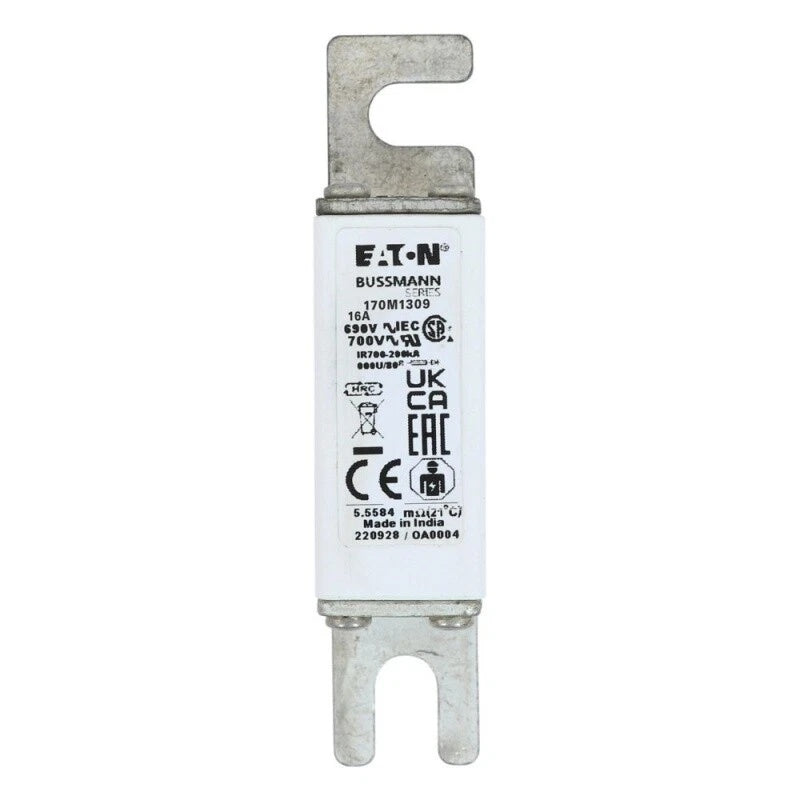

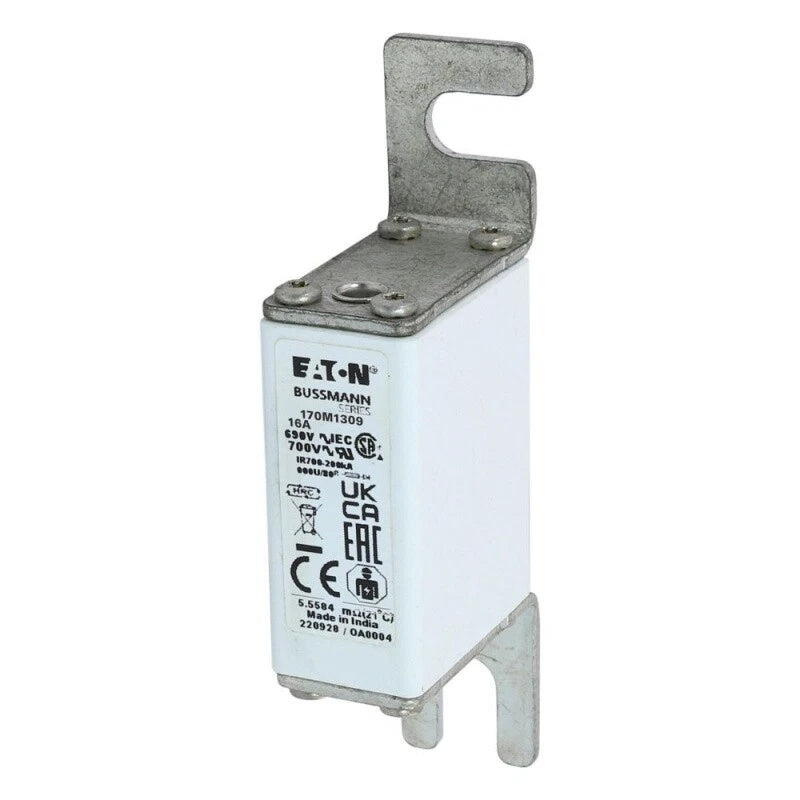

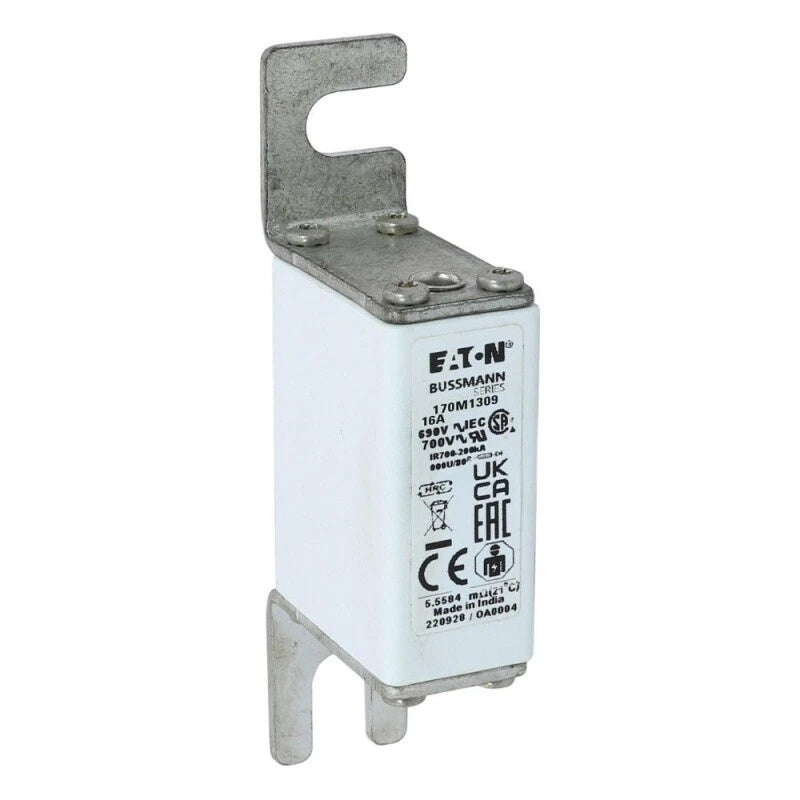

Bussmann 170M1309 High Speed Fuse 16A 690VAC Class gR
Available in stock (2000)
Regular price
$23.32
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | 170M1309 |
| Product Category | High Speed Fuse |
| Product Type | High Speed Square Body Fuse |
| Model Code | FUSE 16A 690V 000U/80 GR UC |
| Current Rating | 16 A |
| Voltage Rating | 690 VAC IEC / 700 VAC UL |
| Voltage Type | AC |
| Class | Class gR |
| Utilization Category | gR General Purpose Semiconductor Protection |
| Breaking Capacity | 200 kA |
| Interrupt Rating | 200 kAIC |
| Fuse Size | 000 |
| Fuse Type | DIN 43653 U/80 Without Indicator |
| Fuse Indicator | None |
| Fuse Shape | Square Body, Slotted Offset Bolted Tags |
| Connection | Blade End × Blade End |
| Mounting Dimension | M8 |
| Connection Center Distance | 76.7 mm |
| Pre-Arcing I²t | 7.2 A²s |
| Clearing I²t | 48 A²s at 660 VAC |
| Watt Losses | 5.5 W |
| Dimensions | 100 × 21 × 40 mm |
| Compliance | CE Marked, RoHS Compliant |
| Certifications | IEC Rated, UL Recognized |
Key Features
690 VAC IEC Rating
The fuse is rated at 690 VAC under IEC specifications and 700 VAC under UL specifications.
Class gR Protection
The 170M1309 has a gR utilization category for general-purpose semiconductor protection.
200 kA Breaking Capacity
The documented breaking capacity and interrupt rating is 200 kA.
Size 000 Square Body
The fuse uses DIN 43653 size 000 square body construction with slotted offset bolted tags and blade end connections.
Without Indicator
The 170M1309 uses the U/80 configuration without a fuse status indicator.
Applications
- Semiconductor protection
- DC common bus systems
- DC drive systems
- Power converter protection
- Rectifier protection
- Industrial power electronics
Purchase Information
We support online purchase of the Bussmann 170M1309 High Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann 170M1309?
Bussmann 170M1309 is a high speed square body fuse with a gR utilization category for general-purpose semiconductor protection.
What is the current rating of 170M1309?
The documented current rating is 16 A.
What is the voltage rating of 170M1309?
The documented rating is 690 VAC under IEC specifications and 700 VAC under UL specifications.
What fuse class is 170M1309?
The documented fuse class is Class gR.
What is the breaking capacity of 170M1309?
The documented breaking capacity is 200 kA.
What fuse size is 170M1309?
The documented construction size is 000.
Does 170M1309 have a fuse indicator?
No. The 170M1309 is the DIN 43653 U/80 configuration without an indicator.
What connection configuration does 170M1309 use?
The fuse uses blade end to blade end connections with a square body and slotted offset bolted tags.
What are the dimensions of 170M1309?
The documented dimensions are 100 mm length, 21 mm width and 40 mm height.
What are the documented I²t values?
The documented pre-arcing I²t is 7.2 A²s and the clearing I²t is 48 A²s at 660 VAC.
What applications are specified for 170M1309?
Eaton identifies semiconductor protection, DC common bus systems, DC drives, power converters and rectifiers as applications for this fuse.
What should be checked before ordering 170M1309?
Check the complete 170M1309 catalog number, 16 A current rating, required 690 VAC IEC or 700 VAC UL rating, Class gR utilization category, DIN 43653 size 000 construction, U/80 configuration and equipment protection requirements before purchasing.
