Eaton Bussmann

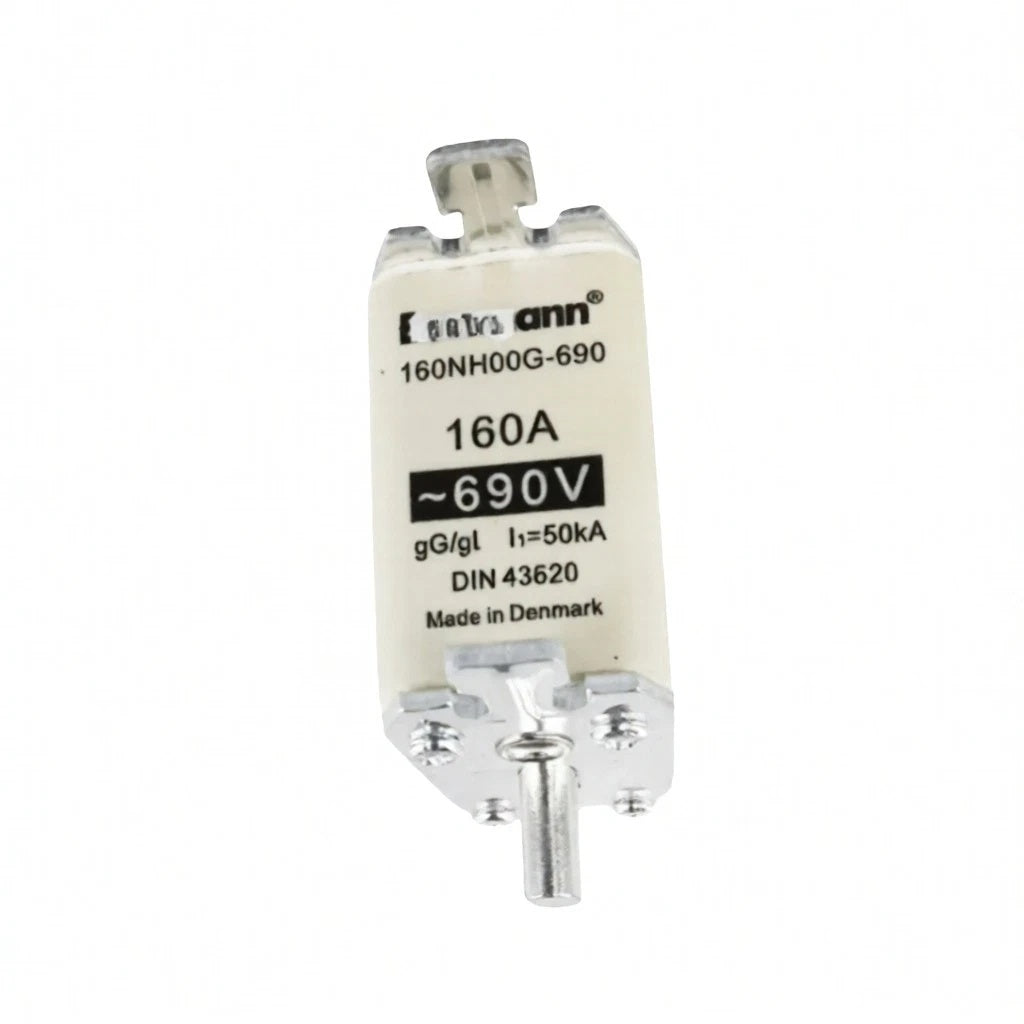

Bussmann 160NH00G Fuse

SKU: LL1-BSM-160NH00G

$36.31

Available

PRODUCT GALLERY 01 / 3

✓ Product images for part identification

Eaton Bussmann

Bussmann 160NH00G Fuse

SKU: LL1-BSM-160NH00G

PRODUCT PRICE USD

$36.31

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	160NH00G
Product Category	Low Voltage NH Fuse
Product Family	Bussmann series NH Fuse
Fuse Size	NH00
Rated Current	160 A
Rated Voltage AC	500 V
Operating Class	gG/gL
Breaking Capacity	120 kA
Frequency Rating	45 Hz to 62 Hz
Fuse Type	Square body with knife blade contact
Fuse Indicator	Combination fuse status indicator
Watt Losses	10 W
Connection	Blade end; metal gripping lugs
Standards	IEC 60269-1; IEC 60269-2; DIN 43620
Compliances	CE Marked; RoHS Compliant

Key Features

NH00 gG/gL General Purpose Protection

NH00 fuse link with gG/gL utilization category for cable and equipment protection in low voltage installations.

160 A / 500 V AC Rating

Rated 160 A at 500 V AC, suitable for low voltage distribution and industrial protection circuits.

120 kA Breaking Capacity

Published breaking capacity of 120 kA supports high fault current interruption in NH00 applications.

Dual Status Indication

Combination fuse status indicator provides visual fuse operation indication.

Metal Gripping Lugs

Fitted with metal gripping lugs for handling and installation in compatible NH00 fuse bases.

IEC/DIN Compliance

Complies with IEC 60269-1, IEC 60269-2 and DIN 43620 standards for low voltage NH fuses.

Applications

Low voltage distribution boards
Cable protection in industrial installations
Equipment protection in control panels
NH00 fuse base installations
Industrial power distribution circuits
Utilities and infrastructure protection
Solar and wind balance-of-system circuits
General purpose low voltage feeder protection

Purchase Information

We support online purchase of the Bussmann 160NH00G Low Voltage NH Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 160NH00G? The 160NH00G is a low voltage NH fuse from the Bussmann series, size NH00, rated 160 A at 500 V AC with gG/gL operating class.

What is the rated current and voltage of the 160NH00G? The rated current is 160 A and the rated voltage AC is 500 V.

What is the operating class of the 160NH00G? The operating class is gG/gL, intended for cable protection and equipment protection.

What is the breaking capacity of the 160NH00G? The published breaking capacity is 120 kA.

What fuse size is the 160NH00G? The 160NH00G is NH00 size.

Does the 160NH00G have a fuse indicator? Yes. Eaton product data identifies a combination fuse status indicator.

What are the frequency ratings of the 160NH00G? The frequency rating range is 45 Hz to 62 Hz.

What watt loss is published for the 160NH00G? The published watt loss is 10 W at rated current.

What standards does the 160NH00G comply with? Compliance includes IEC 60269-1, IEC 60269-2 and DIN 43620, with CE marking and RoHS compliance.

What connection style does the 160NH00G use? The fuse uses a square body with knife blade contacts and is fitted with metal gripping lugs for compatible NH00 fuse bases.

What applications are associated with the 160NH00G? Typical applications include low voltage distribution, cable protection, industrial control panels, and general feeder protection in NH00 installations.

What should be checked before ordering the 160NH00G? Confirm the NH00 fuse size, 500 V AC system voltage, 160 A continuous current, gG/gL coordination, breaking capacity requirement, and compatibility with the installed NH fuse base and disconnect arrangement.
