Eaton Bussmann

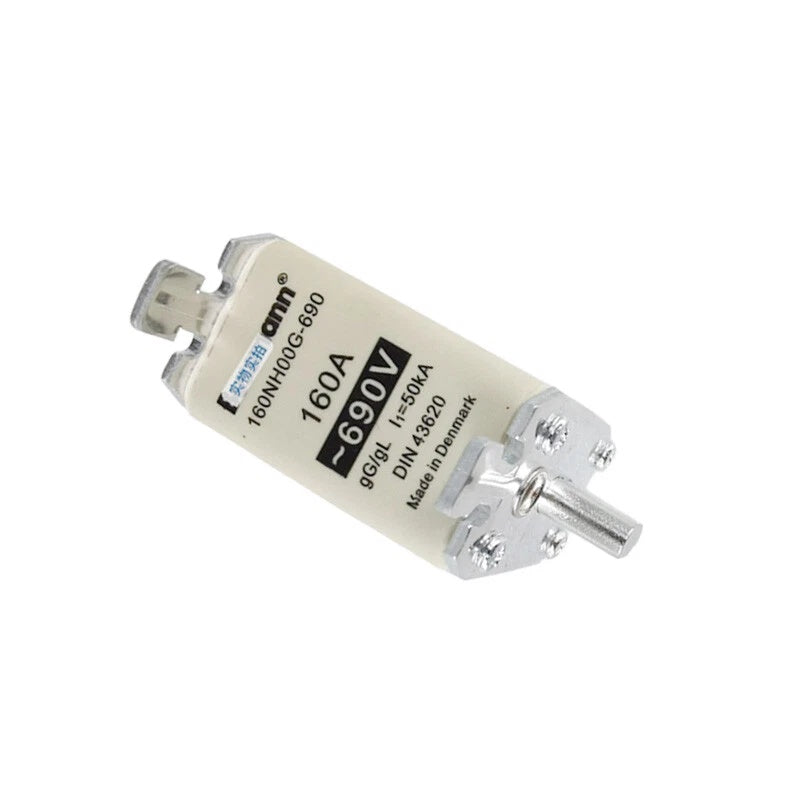

Bussmann 160NH00G-690 Fuse

SKU: LL1-BSM-160NH00G-690

$36.31

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann 160NH00G-690 Fuse

SKU: LL1-BSM-160NH00G-690

PRODUCT PRICE USD

$36.31

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	160NH00G-690
Product Category	Low Voltage NH Fuse
Product Family	Bussmann series NH Fuse, 690 VAC
Fuse Size	NH00
Rated Current	160 A
Rated Voltage AC	690 V
Operating Class	gG/gL
Breaking Capacity	120 kA
Frequency Rating	45 Hz to 62 Hz
Fuse Type	Square body NH fuse link
Fuse Indicator	Dual indicator
Standards	IEC 60269; VDE 0636; DIN 43620
Approvals	KEMA; IEC; OVE; SEV; VDE
Dimensions	49.00 mm L x 30.00 mm W x 50.00 mm H

Key Features

690 V AC NH00 Rating

Bussmann series NH fuse link rated 160 A at 690 V AC for higher voltage low voltage distribution applications.

gG/gL Cable and Equipment Protection

gG/gL operating class supports general cable protection and equipment protection in industrial circuits.

120 kA Breaking Capacity

Published breaking capacity of 120 kA AC for high fault current interruption at 690 V AC.

Dual Indicator

Dual fuse status indication provides visual confirmation of fuse operation.

Compact NH00 Body

NH00 square body format with published dimensions of 49 mm length, 30 mm width and 50 mm height.

International Approvals

Approvals and compliance include KEMA, IEC, OVE, SEV and VDE, with standards covering IEC 60269, VDE 0636 and DIN 43620.

Applications

690 V AC low voltage distribution
Industrial power distribution protection
Cable protection in higher voltage LV systems
NH00 fuse base installations
Equipment protection in control and distribution panels
Infrastructure and utility power circuits
Renewable energy balance-of-system protection
General purpose feeder protection at 690 V AC

Purchase Information

We support online purchase of the Bussmann 160NH00G-690 Low Voltage NH Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 160NH00G-690? The 160NH00G-690 is a Bussmann series low voltage NH fuse link, NH00 size, rated 160 A at 690 V AC with gG/gL operating class.

What is the rated current and voltage of the 160NH00G-690? The rated current is 160 A and the rated voltage AC is 690 V.

What is the operating class of the 160NH00G-690? The operating class is gG/gL, for cable protection and equipment protection.

What is the breaking capacity of the 160NH00G-690? The published breaking capacity is 120 kA AC.

What fuse size is the 160NH00G-690? The fuse size is NH00.

Does the 160NH00G-690 have a fuse indicator? Yes. Product data identifies a dual indicator.

What frequency range applies to the 160NH00G-690? The operating frequency range is 45 Hz to 62 Hz.

What standards and approvals apply to the 160NH00G-690? The fuse is associated with IEC 60269, VDE 0636 and DIN 43620 standards, with approvals including KEMA, IEC, OVE, SEV and VDE.

What are the published dimensions of the 160NH00G-690? Published dimensions are 49.00 mm length, 30.00 mm width and 50.00 mm height.

What is the difference between 160NH00G and 160NH00G-690? The 160NH00G is rated 500 V AC, while the 160NH00G-690 is rated 690 V AC. Both are NH00, 160 A, gG/gL fuse links with 120 kA breaking capacity, but they are separate catalog numbers for different voltage ratings.

What applications is the 160NH00G-690 intended for? It is used in 690 V AC low voltage distribution, industrial power circuits, cable protection, and compatible NH00 fuse base installations.

What should be verified before ordering the 160NH00G-690? Verify the system voltage is within the 690 V AC rating, the NH00 fuse size and base compatibility, the 160 A continuous current, gG/gL coordination, and the required 120 kA breaking capacity for the installation.
