800 mm Axial Fan
The ZN080-SDL.6N.V7P5 is an 800 mm axial fan configuration documented for transformer cooling applications.

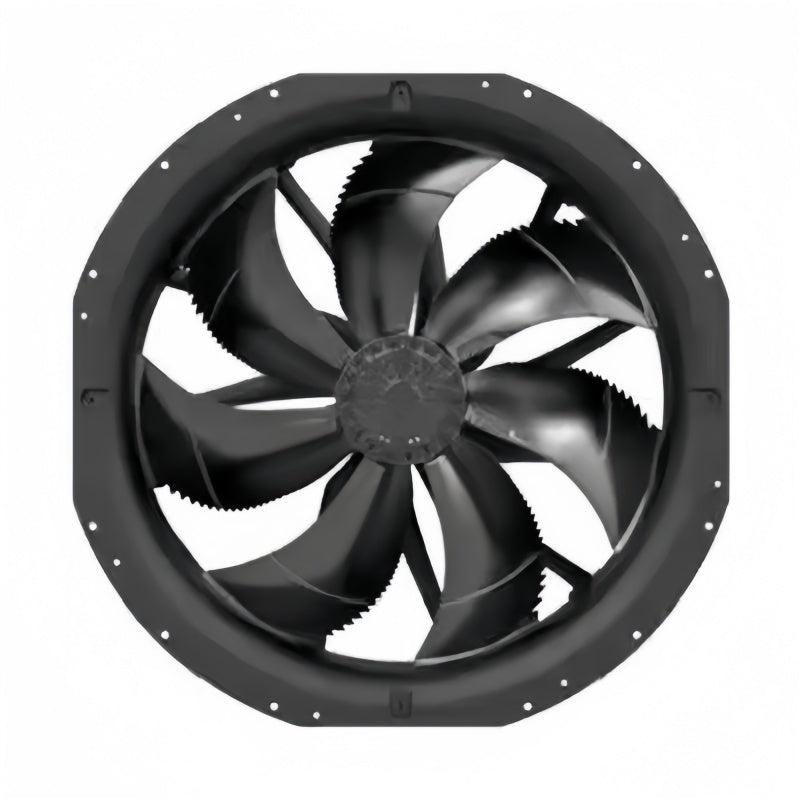

ZIEHL-ABEGG ZN080-SDL.6N.V7P5 Axial Fan 400V 1.65kW 800rpm
Available in stock (200)
Regular price
$1,980.15
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | ZN080-SDL.6N.V7P5 |
| Product Category | Axial Fan |
| Application | Transformer Cooling |
| Fan Size | 800 mm |
| Motor Technology | AC |
| Phase | 3~ |
| Rated Voltage | 400 V |
| Rated Frequency | 50 Hz |
| Rated Current | 3.50 / 1.55 A |
| Input Power | 1.65 / 0.82 kW |
| Rated Speed | 800 / 560 rpm |
| Suction Side Sound Power Level | 79 / 68 dB(A) |
| Airflow Direction | L |
| Design | L |
Key Features
ZAplus Fan System
The documented design uses the ZIEHL-ABEGG ZAplus system and design L configuration.
400 V Three-Phase Supply
The documented 50 Hz rated configuration operates from a three-phase 400 V electrical supply.
Delta / Star Operation
The 50 Hz performance data provide delta and star operating points with corresponding electrical and speed values.
1.65 / 0.82 kW Input Power
The documented rated 400 V operating points specify 1.65 kW in delta connection and 0.82 kW in star connection.
800 / 560 rpm Speed
The corresponding documented rated speeds are 800 rpm in delta connection and 560 rpm in star connection.
Applications
- Oil transformer cooling
- Power transformer ventilation
- Transformer radiator airflow
- Industrial transformer cooling systems
- Electrical equipment ventilation
- Industrial heat exchanger airflow
- Forced-air cooling systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG ZN080-SDL.6N.V7P5 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG ZN080-SDL.6N.V7P5?
ZIEHL-ABEGG ZN080-SDL.6N.V7P5 is an 800 mm ZAplus axial fan documented for transformer cooling applications.
What is the fan size?
The manufacturer transformer-cooling catalogue identifies this model in the 800 mm size group.
What voltage does ZN080-SDL.6N.V7P5 use?
The documented 50 Hz rated operating points use a three-phase 400 V supply.
What connections are specified?
The documented 50 Hz performance data include delta and star connections.
What is the rated current?
The documented rated current is 3.50 A in delta connection and 1.55 A in star connection.
What is the input power?
The documented rated input power is 1.65 kW in delta connection and 0.82 kW in star connection.
What is the rated speed?
The documented rated speeds are 800 rpm in delta connection and 560 rpm in star connection.
What is the documented sound power level?
The suction-side sound power levels at the documented rated operating points are 79 dB(A) and 68 dB(A).
What is the airflow direction?
The manufacturer ordering information identifies airflow direction L for the SDL configuration.
Does ZN080-SDL.6N.V7P5 have 60 Hz operating data?
Yes. Manufacturer documentation also provides 60 Hz operating points at 400 V and 460 V. The required operating point should be checked against the intended electrical supply.
What applications can ZN080-SDL.6N.V7P5 be considered for?
The manufacturer specifically documents this fan for transformer cooling, including oil transformer cooling applications.
What should be checked before ordering ZN080-SDL.6N.V7P5?
Check the complete model designation, required article configuration, voltage, frequency, delta or star connection, current, power, speed, guard grille arrangement and installation requirements against the equipment documentation.
