710 mm Centrifugal Impeller

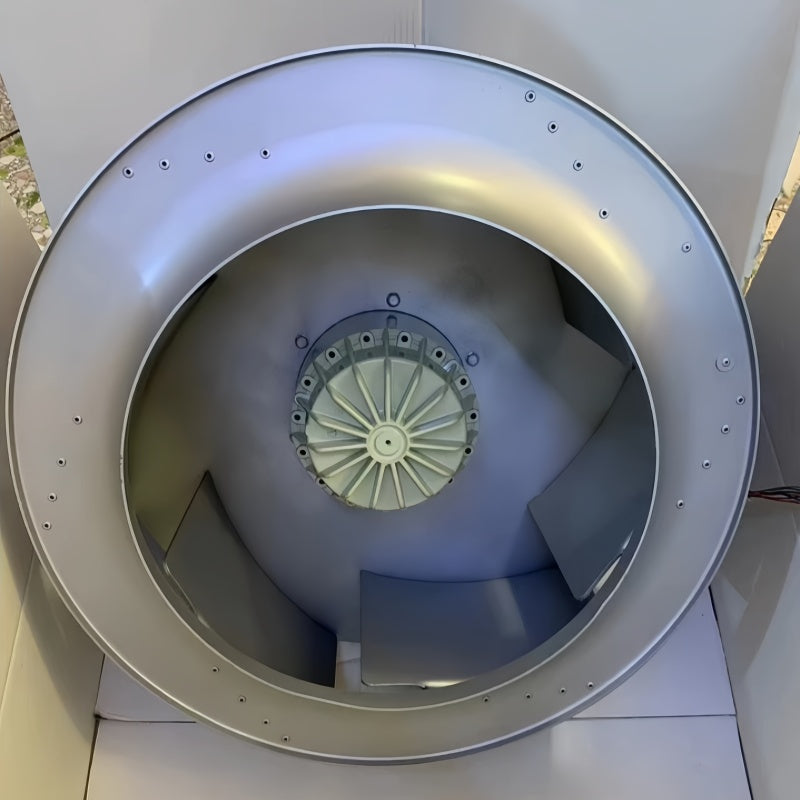

The RH71M-6DK.7Q.1R is a 710 mm single-inlet motorized centrifugal impeller with backward-curved blades.
ZIEHL-ABEGG RH71M-6DK.7Q.1R Centrifugal Fan 230/400V 2.1kW 930rpm
Available in stock (200)
Regular price
$2,441.82
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH71M-6DK.7Q.1R |
| Product Category | Centrifugal Fan |
| Fan Design | Single-Inlet Motorized Impeller with Backward-Curved Blades |
| Fan Size | 710 mm |
| Motor Type | Three-Phase AC External Rotor Motor |
| Rated Voltage at 50 Hz | 3~ 230/400 V ±10% Δ/Y |
| Rated Frequency | 50/60 Hz |
| Power Input at 50 Hz | 2.10 kW |
| Rated Current at 50 Hz | 7.7 / 4.5 A |
| Rated Speed at 50 Hz | 930 rpm |
| Power Factor at 50 Hz | 0.68 |
| Rated Voltage at 60 Hz | 3~ 265/460 V ±10% Δ/Y |
| Power Input at 60 Hz | 3.30 kW |
| Rated Current at 60 Hz | 8.4 / 5.4 A |
| Rated Speed at 60 Hz | 1070 rpm |
| Degree of Protection | IP54 |
| Thermal Class | THCL 155 |
| Weight | 45 kg |
| Connection Diagram | 106XA |
Key Features
230/400 V at 50 Hz
The documented 50 Hz electrical configuration uses a three-phase 230/400 V supply with delta/star connection.
2.10 kW at 50 Hz
The documented 50 Hz rated operating point specifies 2.10 kW input power and 7.7 / 4.5 A current.
930 rpm at 50 Hz
The documented rated speed at the 230/400 V 50 Hz operating point is 930 rpm.
60 Hz Operating Point
Manufacturer data also specify operation at 265/460 V and 60 Hz with 3.30 kW input power and 1070 rpm rated speed.
IP54 Motor Protection
The documented motor configuration has an IP54 degree of protection and thermal class THCL 155.
Applications
- Industrial ventilation systems
- Air handling equipment
- Industrial machinery cooling
- Heat exchanger airflow
- Drive and inverter cooling
- HVAC air circulation
- Forced-air cooling systems
- Process ventilation equipment
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH71M-6DK.7Q.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH71M-6DK.7Q.1R?
ZIEHL-ABEGG RH71M-6DK.7Q.1R is a 710 mm single-inlet motorized centrifugal impeller with backward-curved blades.
What voltage does RH71M-6DK.7Q.1R use at 50 Hz?
The documented rated supply is three-phase 230/400 V ±10% with delta/star connection.
What is the power input at 50 Hz?
The documented 50 Hz input power is 2.10 kW.
What is the rated current at 50 Hz?
The documented current is 7.7 A at 230 V delta and 4.5 A at 400 V star.
What is the rated speed at 50 Hz?
The documented rated speed is 930 rpm.
Can RH71M-6DK.7Q.1R operate at 60 Hz?
Yes. Manufacturer data specify a 60 Hz operating point at 265/460 V with delta/star connection.
What is the 60 Hz power input?
The documented 60 Hz input power at 265/460 V is 3.30 kW.
What is the rated speed at 60 Hz?
The documented 60 Hz rated speed at 265/460 V is 1070 rpm.
What is the fan size?
The documented impeller size is 710 mm.
What degree of protection is specified?
The documented degree of protection is IP54.
What applications can RH71M-6DK.7Q.1R be considered for?
It can be considered for industrial ventilation, air handling, machinery cooling, drive cooling and other forced-air systems after operating requirements have been checked.
What should be checked before ordering RH71M-6DK.7Q.1R?
Check the complete model designation, required voltage and frequency, delta or star connection, power, current, speed, dimensions and installation requirements against the equipment documentation.
