Backward-Curved Impeller
The RH45M-4DK.6F.1R is an M Series single-inlet motorized centrifugal impeller with backward-curved blades.

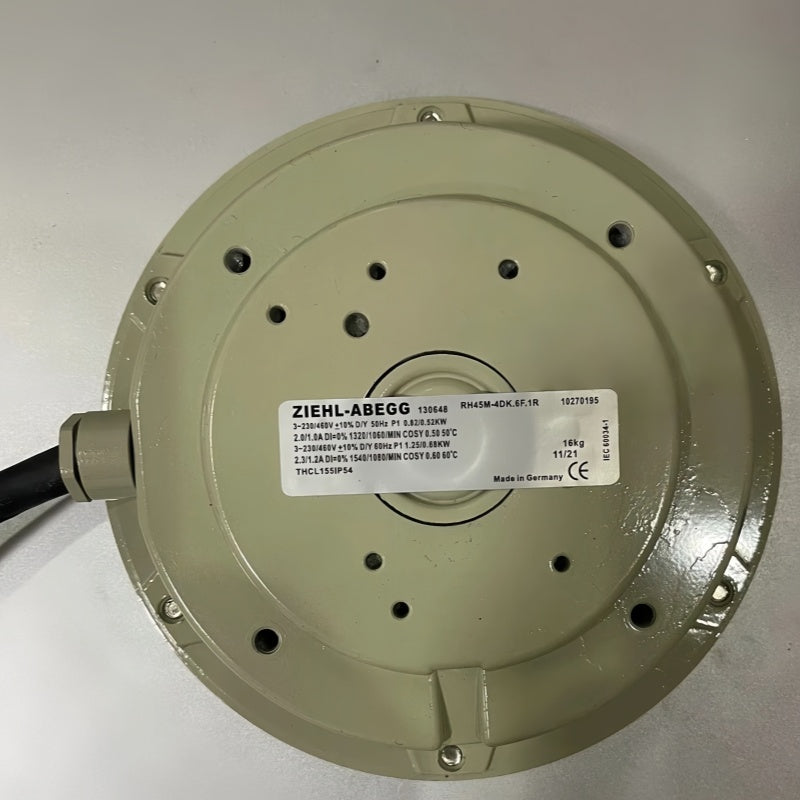

ZIEHL-ABEGG RH45M-4DK.6F.1R Centrifugal Fan 460VAC 1.4kW 1630RPM
Available in stock (200)
Regular price
$595.62
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH45M-4DK.6F.1R |
| Product Category | Centrifugal Fan |
| Product Series | M Series |
| Article Number | 172151 |
| Fan Type | Single-Inlet Motorized Centrifugal Impeller |
| Impeller Design | Backward-Curved |
| Rated Voltage | 3~ 460 VAC ±10% |
| Connection | Y |
| Rated Frequency | 60 Hz |
| Power Input | 1.4 kW |
| Rated Current | 2.2 A |
| Speed | 1630 RPM |
| Protection Rating | IP54 |
| Weight | 16 kg |
| Connection Diagram | 106XA |
Key Features
460 VAC Operation
The documented operating point uses a three-phase 460 VAC ±10% supply with Y connection at 60 Hz.
1.4 kW Power Input
The documented power input at the specified 460 VAC and 60 Hz operating point is 1.4 kW.
2.2 A Rated Current
The documented rated current at the specified operating point is 2.2 A.
1630 RPM Speed
The documented rotational speed at the specified operating point is 1630 RPM.
IP54 Protection
The documented degree of protection for the RH45M-4DK.6F.1R is IP54.
Applications
- Air conditioning equipment
- Refrigeration equipment
- Industrial drying systems
- Industrial equipment ventilation
- Industrial machinery cooling
- Equipment air circulation
- Industrial air handling
- Industrial airflow applications
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH45M-4DK.6F.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH45M-4DK.6F.1R?
ZIEHL-ABEGG RH45M-4DK.6F.1R is an M Series single-inlet motorized centrifugal impeller with backward-curved blades.
What is the article number for RH45M-4DK.6F.1R?
The current M Series product listing identifies article number 172151 for RH45M-4DK.6F.1R.
What voltage does RH45M-4DK.6F.1R use?
The documented performance data specifies three-phase 460 VAC ±10% with Y connection.
What frequency is specified for RH45M-4DK.6F.1R?
The documented 460 VAC operating point is specified at 60 Hz.
What is the power input of RH45M-4DK.6F.1R?
The documented power input at the specified operating point is 1.4 kW.
What is the rated current of RH45M-4DK.6F.1R?
The documented rated current is 2.2 A.
What is the speed of RH45M-4DK.6F.1R?
The documented rotational speed is 1630 RPM.
What is the protection rating of RH45M-4DK.6F.1R?
The documented degree of protection is IP54.
What applications can RH45M-4DK.6F.1R be considered for?
The M Series is used in applications including air conditioning, refrigeration, drying and other industrial air movement systems.
What should be verified before using RH45M-4DK.6F.1R in an existing system?
The complete model number, voltage, frequency, connection, power, current, speed, airflow requirements and mechanical installation requirements should be checked against the existing system.
What should be checked before ordering RH45M-4DK.6F.1R?
Check the complete model designation and verify the required electrical, airflow and mechanical installation specifications before ordering.
