400 mm Centrifugal Impeller

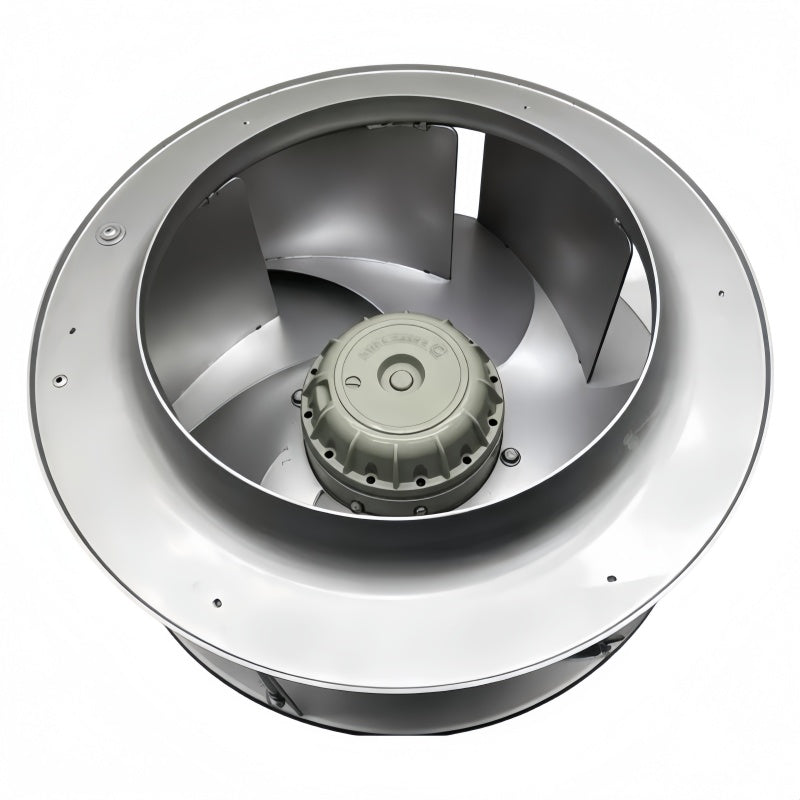

The RH40M-4DK.4C.1R is a single-inlet motorized centrifugal impeller with a documented 400 mm size.
ZIEHL-ABEGG RH40M-4DK.4C.1R Centrifugal Fan 400V 450W 1340rpm
Available in stock (200)
Regular price
$414.85
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH40M-4DK.4C.1R |
| Product Category | Centrifugal Fan |
| Fan Design | Single-Inlet Motorized Impeller |
| Motor Technology | AC |
| Rated Voltage | 3~ 400 V ±10% |
| Rated Frequency | 50 Hz |
| Input Power | 0.45 kW |
| Rated Current | 0.86 A |
| Rated Speed | 1340 rpm |
| Impeller Diameter | 400 mm |
| Weight | 6.9 kg |
Key Features
3~ 400 V Operation
The documented operating point uses a three-phase 400 V ±10% supply at 50 Hz.
0.45 kW Input Power
The documented input power at the 400 V and 50 Hz operating point is 0.45 kW.
0.86 A Rated Current
The documented rated current at the specified operating point is 0.86 A.
1340 rpm Rated Speed
The documented rated rotational speed is 1340 rpm.
AC Motor Technology
The RH40M series is identified by ZIEHL-ABEGG as using AC motor technology in a motorized impeller configuration.
Applications
- Industrial equipment ventilation
- Industrial machinery cooling
- Air handling systems
- Drying equipment airflow
- Industrial process ventilation
- Forced-air cooling systems
- Mechanical equipment airflow
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH40M-4DK.4C.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH40M-4DK.4C.1R?
ZIEHL-ABEGG RH40M-4DK.4C.1R is a single-inlet motorized centrifugal impeller from the M series.
What type of fan is RH40M-4DK.4C.1R?
It is a centrifugal motorized impeller using AC motor technology.
What voltage does RH40M-4DK.4C.1R use?
The documented operating point is three-phase 400 V ±10%.
What frequency is specified for RH40M-4DK.4C.1R?
The documented operating point uses 50 Hz.
What is the input power of RH40M-4DK.4C.1R?
The documented input power is 0.45 kW.
What is the rated current of RH40M-4DK.4C.1R?
The documented rated current is 0.86 A at the specified 400 V and 50 Hz operating point.
What is the rated speed of RH40M-4DK.4C.1R?
The documented rated speed is 1340 rpm.
What is the impeller diameter?
The documented size is 400 mm.
What is the documented weight of RH40M-4DK.4C.1R?
The documented weight is 6.9 kg.
What applications can RH40M-4DK.4C.1R be considered for?
It can be considered for industrial ventilation, machinery cooling, air handling and process airflow applications after the required airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering RH40M-4DK.4C.1R?
Check the complete model number, voltage, frequency, input power, current, speed, impeller size and mechanical installation requirements against the existing equipment documentation.
