230 VAC Operation
The RH35M-4EK.4F.1R is specified for single-phase 230 VAC operation with a ±10% voltage tolerance.

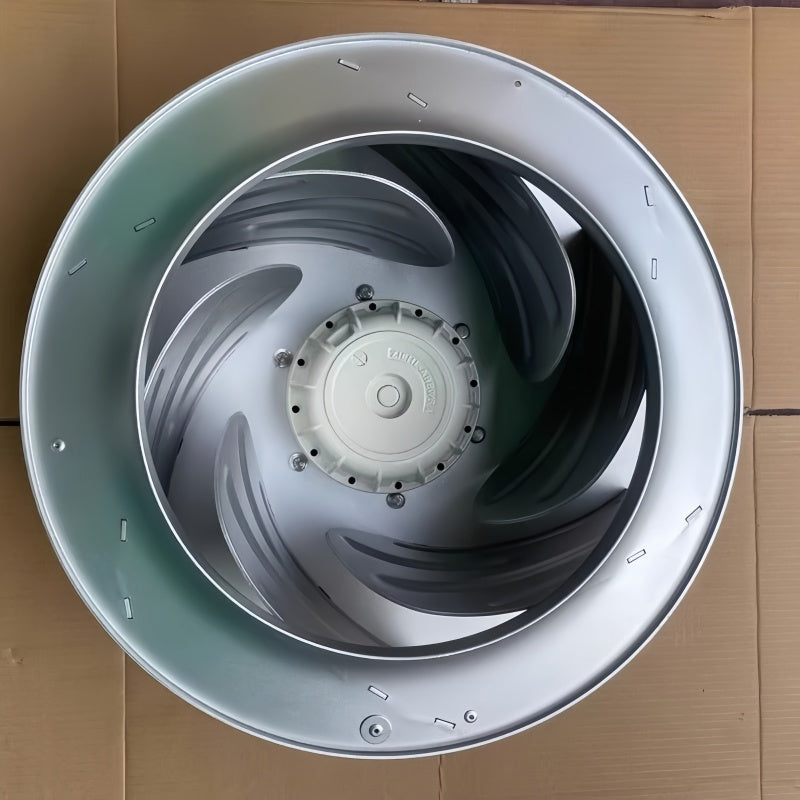

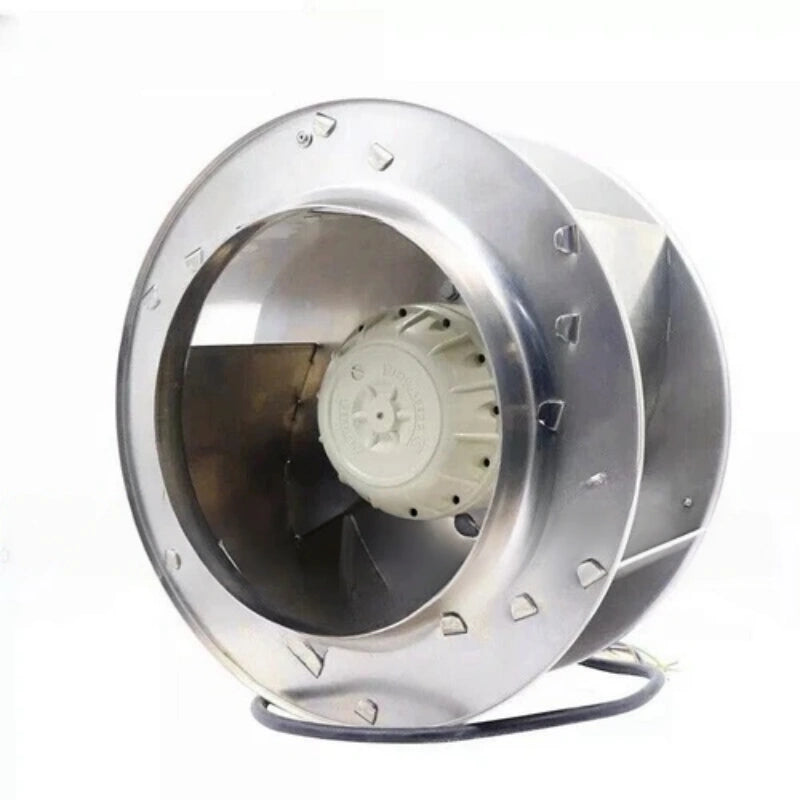

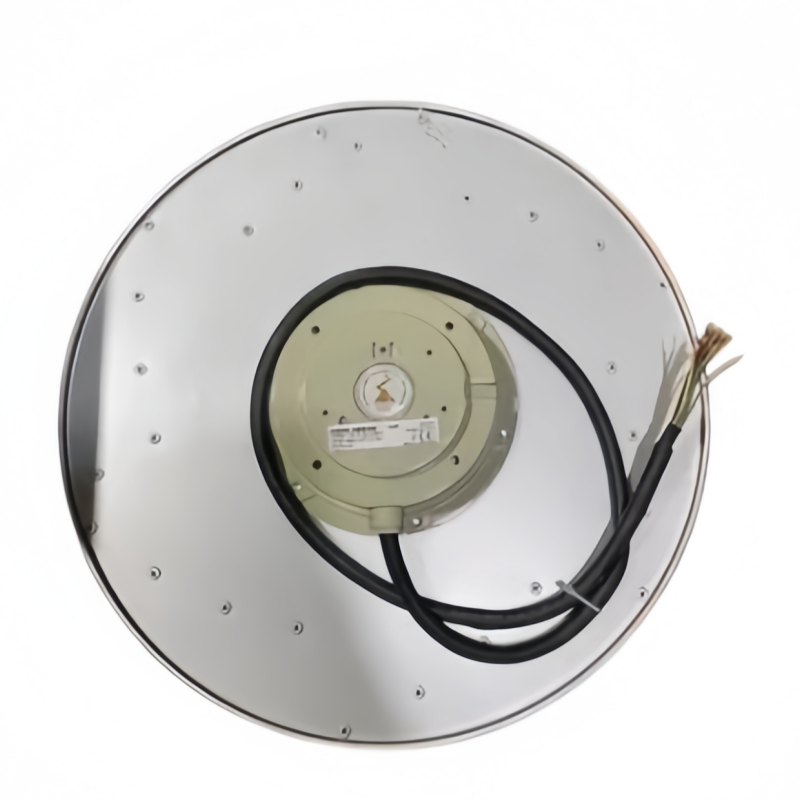

ZIEHL-ABEGG RH35M-4EK.4F.1R Centrifugal Fan 230VAC 50/60Hz 300/410W
Available in stock (200)
Regular price
$478.85
Sale price
Regular price
Shipping calculated at checkout.

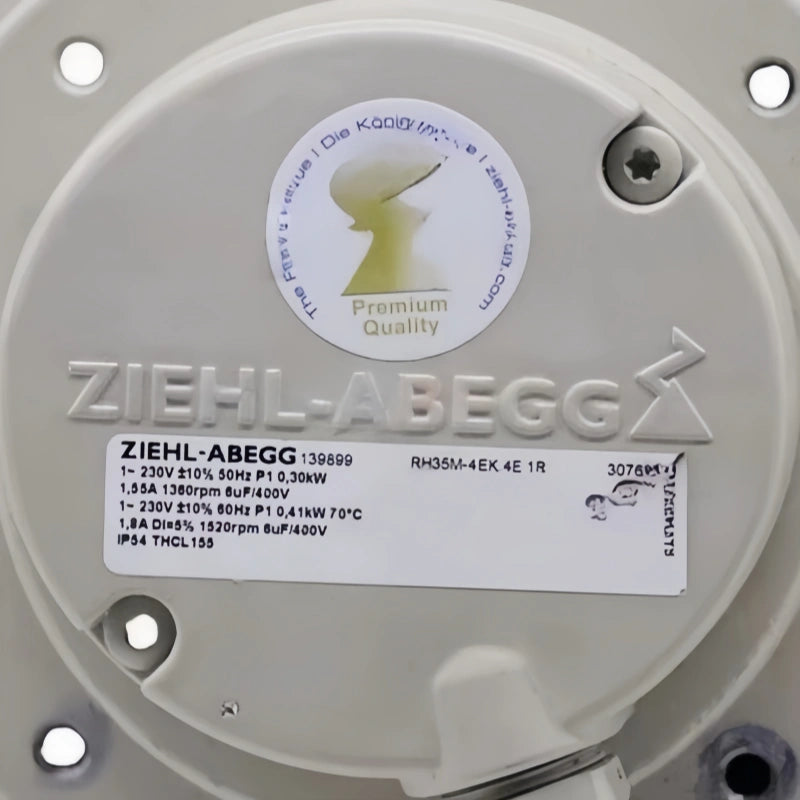

Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH35M-4EK.4F.1R |
| Product Category | Centrifugal Fan |
| Fan Type | AC Backward-Curved Centrifugal Fan |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC ±10% |
| Rated Frequency | 50/60 Hz |
| Power Input | 300 W at 50 Hz / 410 W at 60 Hz |
| Rated Current | 1.55 A at 50 Hz / 1.8 A at 60 Hz |
| Speed | 1360 RPM at 50 Hz / 1520 RPM at 60 Hz |
| Protection Rating | IP54 |
| Insulation Class | Class F |
| Weight | 8 kg |
Key Features
50/60 Hz Operation
The documented electrical data provides operating ratings for both 50 Hz and 60 Hz supplies.
300/410 W Power Input
Documented power input is 300 W at 50 Hz and 410 W at 60 Hz.
1360/1520 RPM Speed
Documented rotational speed is 1360 RPM at 50 Hz and 1520 RPM at 60 Hz.
Backward-Curved Design
The RH35M-4EK.4F.1R is an AC centrifugal fan with a backward-curved impeller configuration.
IP54 Protection
The documented degree of protection for this fan configuration is IP54.
Applications
- Industrial equipment ventilation
- Electrical equipment cooling
- Air handling equipment
- Industrial ventilation systems
- Machinery air circulation
- Control cabinet cooling
- Equipment heat removal
- Industrial airflow applications
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH35M-4EK.4F.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH35M-4EK.4F.1R?
ZIEHL-ABEGG RH35M-4EK.4F.1R is a single-phase AC backward-curved centrifugal fan.
What voltage does RH35M-4EK.4F.1R use?
The documented rated voltage is 230 VAC with a ±10% tolerance.
What frequency does RH35M-4EK.4F.1R support?
The documented operating frequencies are 50 Hz and 60 Hz.
What is the power input of RH35M-4EK.4F.1R?
The documented power input is 300 W at 50 Hz and 410 W at 60 Hz.
What is the rated current of RH35M-4EK.4F.1R?
The documented rated current is 1.55 A at 50 Hz and 1.8 A at 60 Hz.
What is the speed of RH35M-4EK.4F.1R?
The documented speed is 1360 RPM at 50 Hz and 1520 RPM at 60 Hz.
What is the protection rating of RH35M-4EK.4F.1R?
The documented degree of protection is IP54.
What insulation class is specified for RH35M-4EK.4F.1R?
The documented insulation class is Class F.
What applications can RH35M-4EK.4F.1R be considered for?
It can be considered for industrial ventilation, equipment cooling and air circulation applications after electrical, airflow and installation requirements have been checked.
Can RH35M-4EK.4F.1R be considered for an existing ventilation system?
It can be considered after the complete model number, supply voltage, frequency, electrical ratings and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering RH35M-4EK.4F.1R?
Check the complete model number, 230 VAC supply, operating frequency, current, power input, rotational speed and mechanical installation requirements before ordering.
