Backward-Curved Impeller

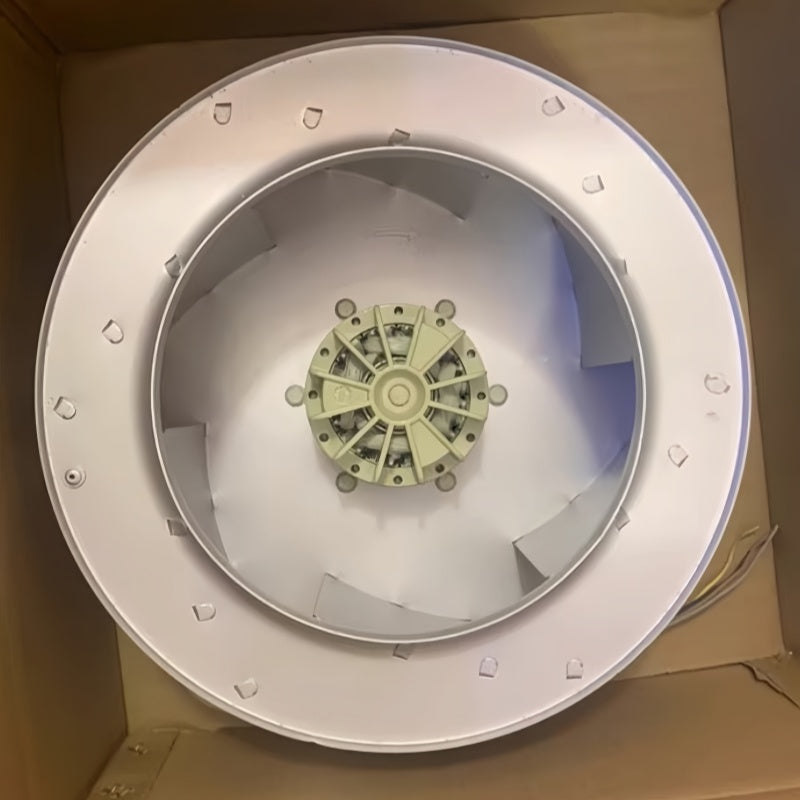

The RH35M-4EK.2F.1R is a single-inlet motorized centrifugal impeller with backward-curved blades.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG RH35M-4EK.2F.1R Centrifugal Fan 230VAC 50/60Hz 300/420W
PRODUCT PRICE
USD
$320.75
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH35M-4EK.2F.1R |
| Product Category | Centrifugal Fan |
| Fan Design | Single-Inlet Motorized Impeller with Backward-Curved Blades |
| Rated Voltage | 1~ 230 VAC ±10% |
| Rated Frequency | 50/60 Hz |
| Power Input | 300 W at 50 Hz / 420 W at 60 Hz |
| Rated Current | 1.4 A at 50 Hz / 1.9 A at 60 Hz |
| Speed | 1340 RPM at 50 Hz / 1450 RPM at 60 Hz |
| Capacitor | 6 µF / 400 V |
| Thermal Class | 155 |
Key Features
230 VAC Operation
The documented rated supply is single-phase 230 VAC ±10%.
50/60 Hz Operation
The documented electrical ratings cover operation at both 50 Hz and 60 Hz.
300/420 W Power Input
Documented power input is 300 W at 50 Hz and 420 W at 60 Hz.
1340/1450 RPM Speed
Documented rotational speed is 1340 RPM at 50 Hz and 1450 RPM at 60 Hz.
6 µF Capacitor
The documented capacitor specification is 6 µF at 400 V.
Applications
- Industrial equipment ventilation
- Industrial machinery cooling
- Air handling equipment
- Industrial ventilation systems
- Electrical enclosure cooling
- Equipment air circulation
- Equipment heat removal
- Industrial airflow applications
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH35M-4EK.2F.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH35M-4EK.2F.1R?
ZIEHL-ABEGG RH35M-4EK.2F.1R is a single-inlet motorized centrifugal impeller with backward-curved blades.
What voltage does RH35M-4EK.2F.1R use?
The documented rated supply is single-phase 230 VAC ±10%.
What frequencies does RH35M-4EK.2F.1R support?
The documented rated operating frequencies are 50 Hz and 60 Hz.
What is the power input of RH35M-4EK.2F.1R?
The documented power input is 300 W at 50 Hz and 420 W at 60 Hz.
What is the rated current of RH35M-4EK.2F.1R?
The documented rated current is 1.4 A at 50 Hz and 1.9 A at 60 Hz.
What is the speed of RH35M-4EK.2F.1R?
The documented rotational speed is 1340 RPM at 50 Hz and 1450 RPM at 60 Hz.
What capacitor is specified for RH35M-4EK.2F.1R?
The documented capacitor specification is 6 µF at 400 V.
What thermal class is specified for RH35M-4EK.2F.1R?
The documented thermal class is 155.
What applications can RH35M-4EK.2F.1R be considered for?
It can be considered for industrial ventilation, equipment cooling and air circulation applications after electrical, airflow and installation requirements have been checked.
Can RH35M-4EK.2F.1R be considered for an existing ventilation system?
It can be considered after the complete model number, supply voltage, frequency, electrical ratings and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering RH35M-4EK.2F.1R?
Check the complete model number, 230 VAC supply, operating frequency, current, power input, rotational speed, capacitor specification and mechanical installation requirements before ordering.
