Backward-Curved Centrifugal Design

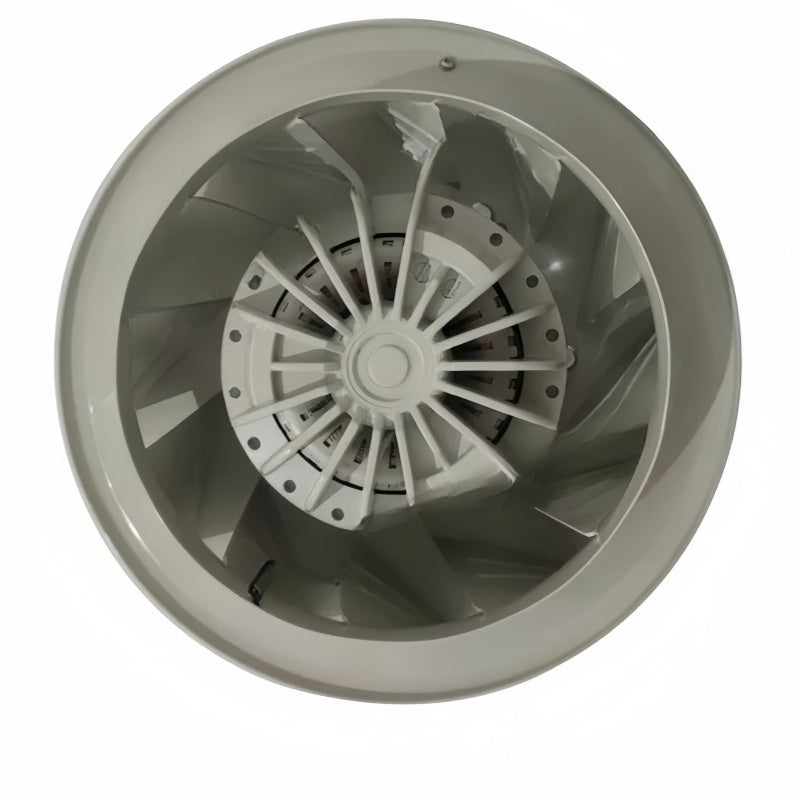

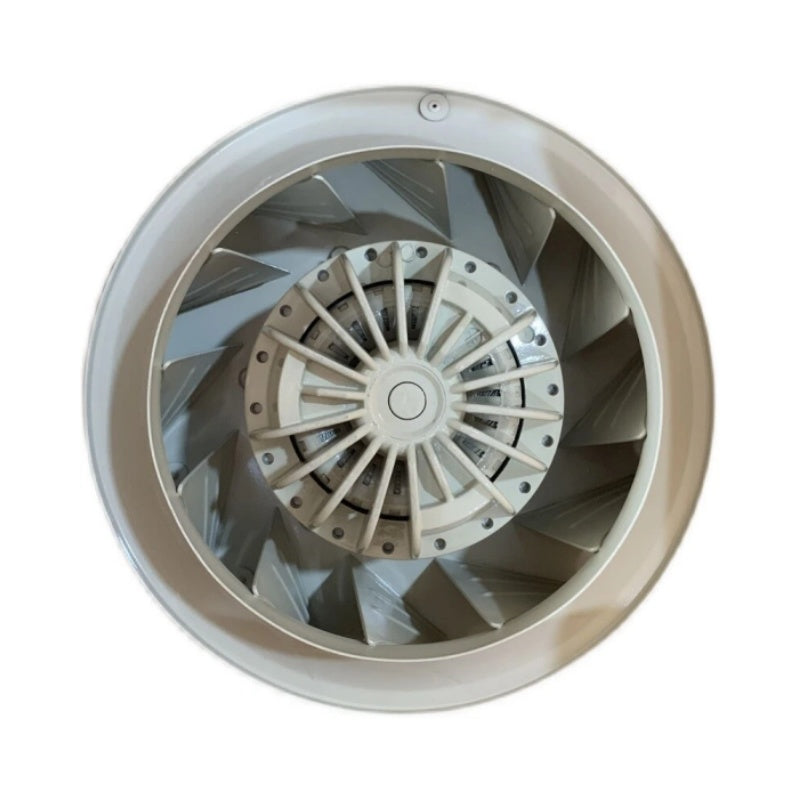

The RH35B-2EK.6N.2R is a single-inlet motorized centrifugal impeller with backward-curved blades.
1 / 9
ZIEHL-ABEGG

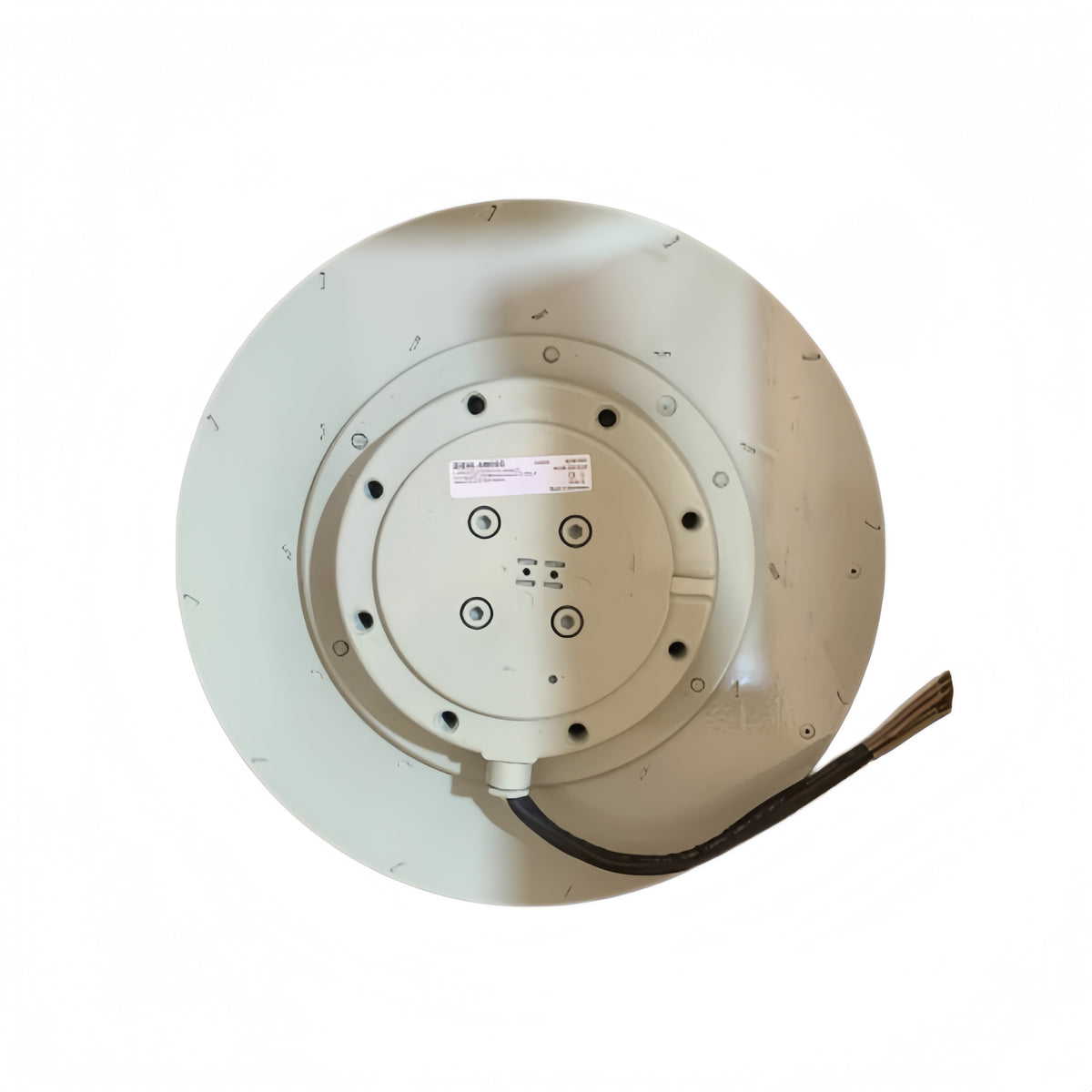

ZIEHL-ABEGG RH35B-2EK.6N.2R Centrifugal Fan 230VAC 350mm 2870-3300rpm
PRODUCT PRICE
USD
$1,236.76
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH35B-2EK.6N.2R |
| Product Category | Centrifugal Fan |
| Article Number | 125999 |
| Fan Design | Single-Inlet Motorized Impeller with Backward-Curved Blades |
| Rated Voltage | 230 VAC ±15% |
| Frequency Range | 47-63 Hz |
| Input Power | 2.6-4.1 kW |
| Current | 11.5-18 A |
| Speed | 2870-3300 rpm |
| Fan Diameter | 350 mm |
| Degree of Protection | IP10 |
| Thermal Class | F |
| Capacitor | 60 µF / 400 V |
| Weight | 26 kg |
Key Features
230 VAC Operation
The documented nameplate supply is 230 VAC ±15% across a frequency range of 47-63 Hz.
2870-3300 rpm
The documented operating speed range is 2870-3300 rpm.
2.6-4.1 kW Input Power
The documented input power range is 2.6-4.1 kW with a current range of 11.5-18 A.
350 mm Fan Diameter
The RH35B-2EK.6N.2R is identified as a 350 mm centrifugal fan configuration.
IP10 Protection

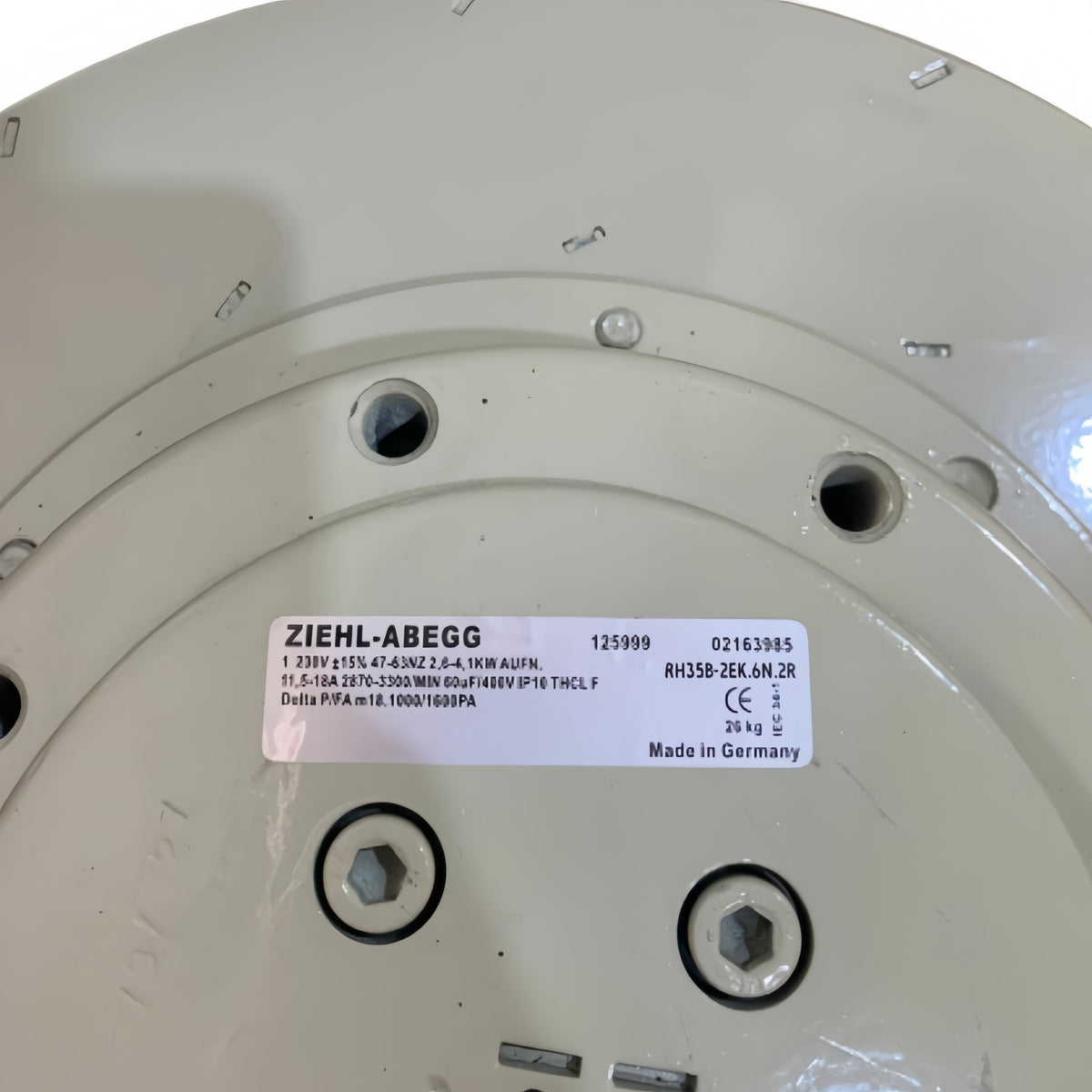

The documented fan nameplate specifies an IP10 degree of protection.
Applications
- Industrial frequency converter cooling
- Inverter cooling systems
- Industrial equipment ventilation
- Power electronics cooling
- Electrical equipment airflow
- Industrial machinery cooling
- Forced-air cooling systems
- Industrial centrifugal ventilation
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH35B-2EK.6N.2R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH35B-2EK.6N.2R?
ZIEHL-ABEGG RH35B-2EK.6N.2R is a single-inlet motorized centrifugal impeller with backward-curved blades.
What voltage does RH35B-2EK.6N.2R use?
The documented nameplate voltage is 230 VAC ±15%.
What frequency range does RH35B-2EK.6N.2R support?
The documented frequency range is 47-63 Hz.
What is the input power of RH35B-2EK.6N.2R?
The documented input power range is 2.6-4.1 kW.
What is the current range?
The documented current range is 11.5-18 A.
What is the speed of RH35B-2EK.6N.2R?
The documented speed range is 2870-3300 rpm.
What is the fan diameter?
The documented fan diameter is 350 mm.
What degree of protection is specified?
The documented degree of protection is IP10.
What capacitor specification is shown for RH35B-2EK.6N.2R?
The documented nameplate specifies a 60 µF / 400 V capacitor.
What applications can RH35B-2EK.6N.2R be considered for?
It can be considered for industrial inverter, frequency converter, power electronics and equipment cooling applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering RH35B-2EK.6N.2R?
Check the complete model and article number, rated voltage, frequency, input power, current, speed, fan diameter and mechanical installation requirements against the existing equipment documentation.
