280 mm Centrifugal Fan
The RH28M-2EK.3F.2R is an M Series centrifugal fan with a documented nominal size of 280 mm.

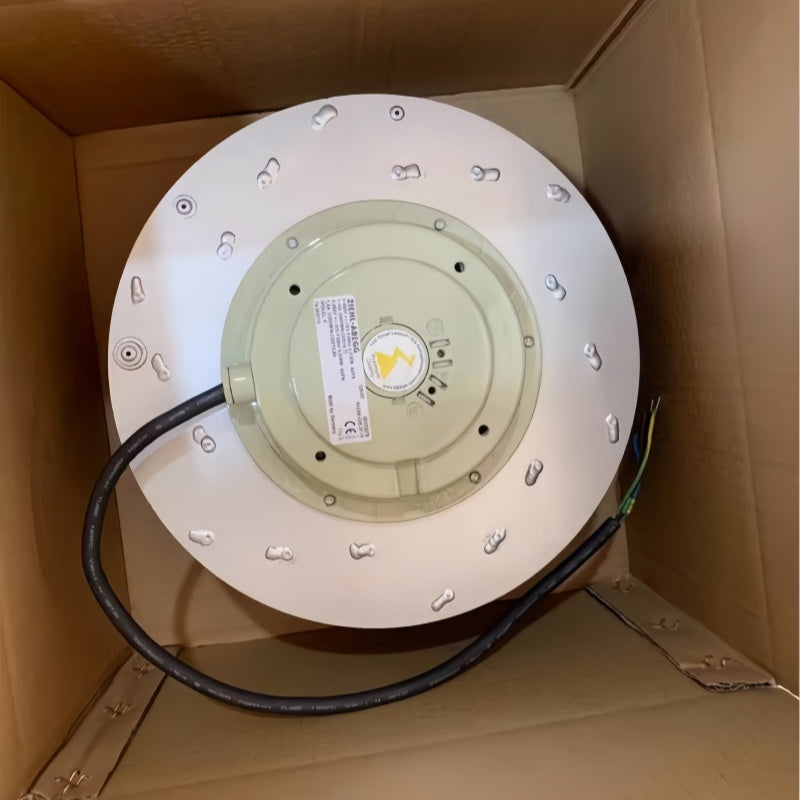

ZIEHL-ABEGG RH28M-2EK.3F.2R Centrifugal Fan 230 VAC 280 mm 510 W
Available in stock (200)
Regular price
$584.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH28M-2EK.3F.2R |
| Product Category | Centrifugal Fan |
| Series | M Series |
| Fan Design | Single-Inlet Centrifugal Impeller |
| Blade Design | Backward-Curved |
| Nominal Size | 280 mm |
| Power Supply | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Rated Current | 2.20 A |
| Motor Input Power | 510 W |
| Speed | 2720 RPM |
| Capacitor | 10 µF / 400 V |
| Article Number - Side Cable | 109326 |
| Article Number - Terminal Box | 121898 |
| Weight | 7.10 kg |
Key Features
Backward-Curved Impeller
The fan uses a single-inlet centrifugal impeller with backward-curved blades.
230 VAC Single-Phase Supply
The rated electrical configuration is 230 VAC single-phase at 50 Hz.
510 W Rated Input
The documented rated motor input power is 510 W with a rated current of 2.20 A.
2720 RPM Rated Speed
The documented rotational speed at the rated operating point is 2720 RPM.
Two Connection Versions
Documentation lists article 109326 with a side supply cable and article 121898 with a terminal box on the motor.
Applications
- Industrial ventilation systems
- Air-conditioning equipment
- Refrigeration equipment
- Industrial air handling
- Equipment cooling systems
- Drying equipment
- Free-running centrifugal fan installations
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH28M-2EK.3F.2R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH28M-2EK.3F.2R?
It is an M Series single-inlet centrifugal fan with backward-curved blades.
What is the nominal size of RH28M-2EK.3F.2R?
The documented nominal size is 280 mm.
What voltage does RH28M-2EK.3F.2R use?
The rated supply voltage is 230 VAC single-phase.
What frequency is documented?
The rated operating point is documented at 50 Hz.
What is the rated current of RH28M-2EK.3F.2R?
The documented rated current is 2.20 A.
What is the motor input power?
The documented rated motor input power is 510 W.
What is the rated speed?
The documented rated rotational speed is 2720 RPM.
What capacitor is specified?
The documented capacitor specification is 10 µF at 400 V.
What article numbers are listed for RH28M-2EK.3F.2R?
Article 109326 is documented for the side-cable version and article 121898 for the terminal-box version.
What is the documented weight?
The documented weight is 7.10 kg.
What applications can RH28M-2EK.3F.2R be considered for?
It can be considered for industrial ventilation, air-conditioning, refrigeration, drying and equipment-cooling applications after system requirements have been checked.
What should be checked before ordering RH28M-2EK.3F.2R?
Check the complete model number, required article and connection version, 230 VAC single-phase supply, 50 Hz frequency, 280 mm size and mechanical installation requirements before purchasing.
