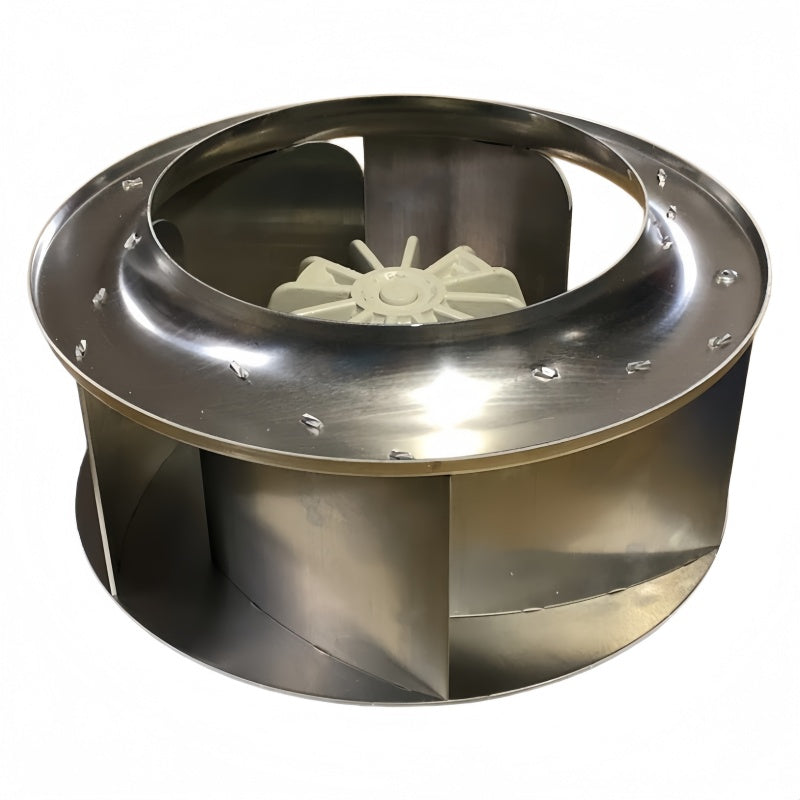

Backward-Curved Impeller
The RH28M-2EK.3F.1R uses a single-inlet impeller with backward-curved blades.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG RH28M-2EK.3F.1R Centrifugal Fan 230VAC 50/60Hz 590/700W
PRODUCT PRICE
USD
$257.28
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH28M-2EK.3F.1R |
| Product Category | Centrifugal Fan |
| Article Number | 125797 |
| Fan Design | Single-Inlet Impeller with Backward-Curved Blades |
| Rated Voltage | 1~ 230 VAC ±15% |
| Rated Frequency | 50/60 Hz |
| Power Input | 590 W at 50 Hz / 700 W at 60 Hz |
| Rated Current | 2.6 A at 50 Hz / 3.3 A at 60 Hz |
| Speed | 2680 RPM at 50 Hz / 2550 RPM at 60 Hz |
| Capacitor | 12 µF / 400 V |
| Electrical Connection | Supply Cable, 6 x 1.0 mm² x 55 cm |
| Protection Rating | IP10 |
| Thermal Class | 155 |
| Motor Protection | Thermal Contact |
| Bearing Type | Ball Bearing with Long-Time Lubrication |
| Impeller Material | Aluminium |
| Installation Position | H/Vu |
| Weight | 7.20 kg |
Key Features
230 VAC Operation
The documented rated supply is single-phase 230 VAC ±15% for 50 Hz and 60 Hz operation.
590/700 W Power Input
Documented power input is 590 W at 50 Hz and 700 W at 60 Hz.
2680/2550 RPM Speed
Documented rotational speed is 2680 RPM at 50 Hz and 2550 RPM at 60 Hz.
Thermal Contact Protection
The documented motor protection uses a thermal contact, with thermal class 155.
Aluminium Impeller
The documented impeller material is aluminium, and the motor uses ball bearings with long-time lubrication.
Applications
- Industrial equipment ventilation
- Industrial machinery cooling
- Air handling equipment
- Industrial ventilation systems
- Equipment air circulation
- Electrical equipment cooling
- Equipment heat removal
- Industrial airflow applications
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH28M-2EK.3F.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH28M-2EK.3F.1R?
ZIEHL-ABEGG RH28M-2EK.3F.1R is a centrifugal fan with a single-inlet backward-curved impeller.
What is the article number for RH28M-2EK.3F.1R?
The documented article number is 125797.
What voltage does RH28M-2EK.3F.1R use?
The documented rated supply is single-phase 230 VAC ±15%.
What frequencies does RH28M-2EK.3F.1R support?
The documented rated operating frequencies are 50 Hz and 60 Hz.
What is the power input of RH28M-2EK.3F.1R?
The documented power input is 590 W at 50 Hz and 700 W at 60 Hz.
What is the rated current of RH28M-2EK.3F.1R?
The documented rated current is 2.6 A at 50 Hz and 3.3 A at 60 Hz.
What is the speed of RH28M-2EK.3F.1R?
The documented rotational speed is 2680 RPM at 50 Hz and 2550 RPM at 60 Hz.
What is the protection rating of RH28M-2EK.3F.1R?
The documented degree of protection is IP10.
What material is used for the RH28M-2EK.3F.1R impeller?
The documented impeller material is aluminium.
What motor protection does RH28M-2EK.3F.1R use?
The documented motor protection is a thermal contact.
What applications can RH28M-2EK.3F.1R be considered for?
It can be considered for industrial ventilation, machinery cooling and air circulation applications after electrical, airflow and installation requirements have been checked.
What should be checked before ordering RH28M-2EK.3F.1R?
Check the complete model number, 230 VAC supply, operating frequency, electrical ratings, installation position and mechanical installation requirements before ordering.
