Q Series Crossflow Design

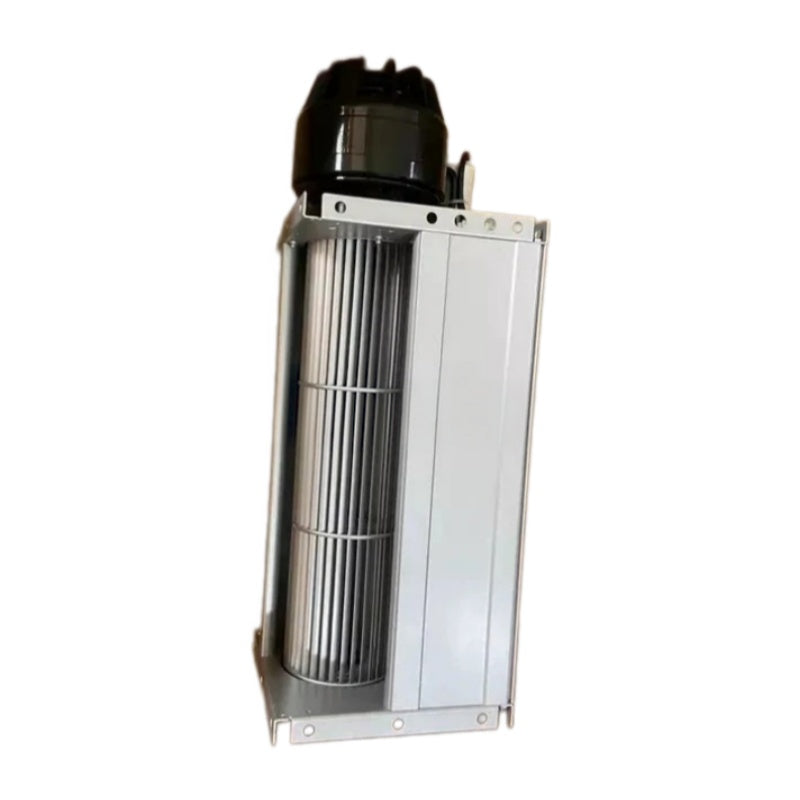

The QK10A-2DM.38.FK is a ZIEHL-ABEGG Q Series crossflow fan using AC external-rotor motor technology.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG QK10A-2DM.38.FK Crossflow Fan 230/400VAC 450W 2500RPM
PRODUCT PRICE
USD
$1,009.36
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | QK10A-2DM.38.FK |
| Product Category | Crossflow Fan |
| Article Number | 110178 |
| Series | Q Series |
| Fan Design | Crossflow QK |
| Motor Technology | AC |
| Phase | 3-Phase |
| Rated Voltage | 3~ 230/400 VAC |
| Frequency | 50/60 Hz |
| Input Power | 450 W at 50 Hz / 610 W at 60 Hz |
| Rated Current | 0.85 A at 50 Hz / 1.10 A at 60 Hz |
| Rated Speed | 2500 RPM at 50 Hz / 3230 RPM at 60 Hz |
| Maximum Airflow | 1360 m³/h at 50 Hz / 1640 m³/h at 60 Hz |
| Weight | 8.0 kg |
Key Features
230/400 VAC 3-Phase Supply
The documented electrical configuration uses a three-phase 230/400 VAC supply for industrial equipment integration.
50/60 Hz Operation
Documented performance data covers both 50 Hz and 60 Hz operating frequencies.
450 W at 50 Hz
At 50 Hz, the documented input power is 450 W with a rated current of 0.85 A and speed of 2500 RPM.
610 W at 60 Hz
At 60 Hz, the documented input power is 610 W with a rated current of 1.10 A and speed of 3230 RPM.
Crossflow Air Delivery
Maximum documented airflow is 1360 m³/h at 50 Hz and 1640 m³/h at 60 Hz.
Applications
- Industrial equipment ventilation
- Power electronics cooling
- Electrical cabinet airflow
- Industrial machinery cooling
- Heat exchanger airflow
- Industrial air circulation
- Equipment heat removal
- Cooling system integration
Purchase Information
We support online purchase of the ZIEHL-ABEGG QK10A-2DM.38.FK Crossflow Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG QK10A-2DM.38.FK?
ZIEHL-ABEGG QK10A-2DM.38.FK is a Q Series crossflow fan with a three-phase AC motor configuration.
What is the article number of QK10A-2DM.38.FK?
The documented article number is 110178.
What voltage does QK10A-2DM.38.FK use?
The documented electrical configuration is three-phase 230/400 VAC.
Does QK10A-2DM.38.FK support 50 Hz and 60 Hz?
Yes. Documented performance data covers both 50 Hz and 60 Hz operation.
What is the input power at 50 Hz?
The documented input power at 50 Hz is 450 W.
What is the input power at 60 Hz?
The documented input power at 60 Hz is 610 W.
What is the rated speed at 50 Hz?
The documented rated speed at 50 Hz is 2500 RPM.
What is the rated speed at 60 Hz?
The documented rated speed at 60 Hz is 3230 RPM.
What airflow is documented for QK10A-2DM.38.FK?
Maximum documented airflow is 1360 m³/h at 50 Hz and 1640 m³/h at 60 Hz.
What maximum ambient temperature is documented?
The documented maximum ambient temperature is 40°C.
Can QK10A-2DM.38.FK be considered for an existing system?
It can be considered after the complete model designation and the required electrical, airflow, dimensional and mechanical installation specifications have been checked against the existing system.
What should be checked before ordering QK10A-2DM.38.FK?
Check the complete model designation together with the required voltage, frequency, power, current, speed, airflow, dimensions and installation requirements before ordering.
Need help confirming a model?
Send us your part number and technical requirements.
