800 mm Axial Fan

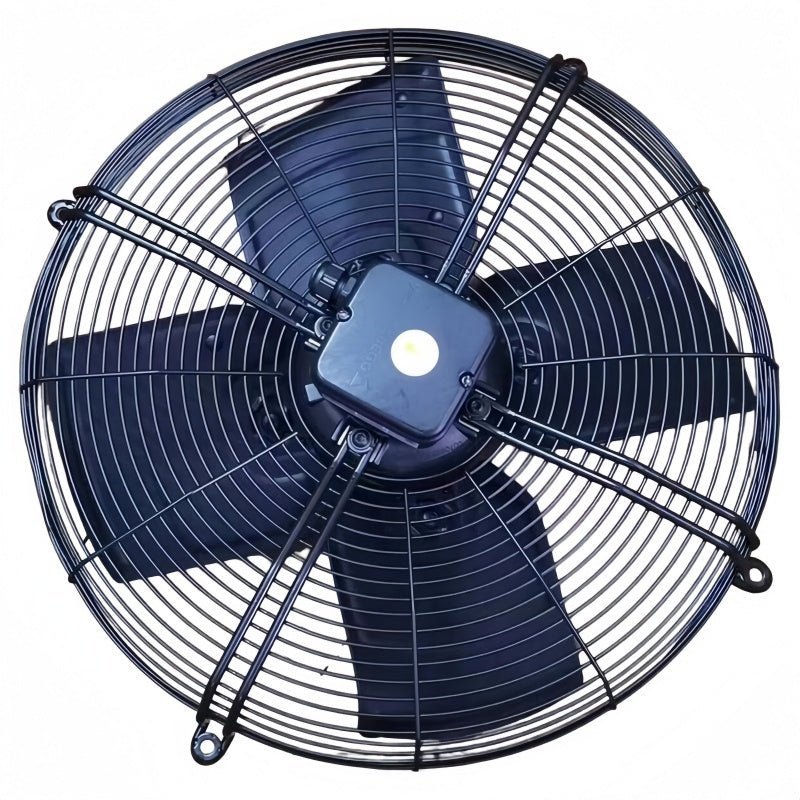

The FN080-SDQ.6N.V7P5 is an axial fan with sickle blades and an 800 mm fan diameter.
1 / 8
ZIEHL-ABEGG
ZIEHL-ABEGG FN080-SDQ.6N.V7P5 Axial Fan 400V 800mm 1.90/1.10kW
PRODUCT PRICE
USD
$1,344.69
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.

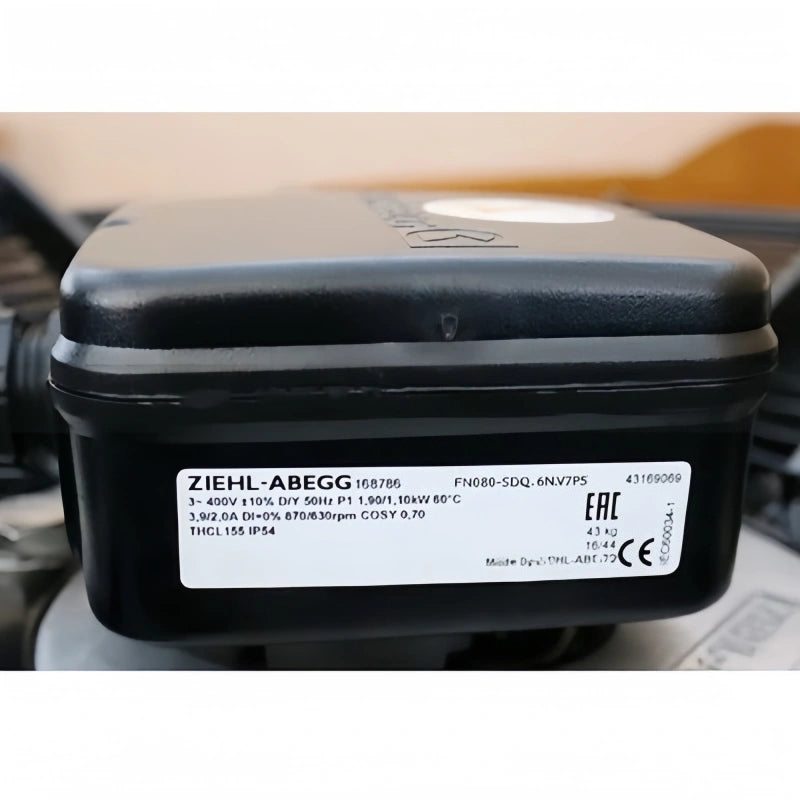

Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN080-SDQ.6N.V7P5 |
| Product Category | Axial Fan |
| Article Number | 168786 |
| Fan Design | Axial Fan with Sickle Blades |
| Fan Diameter | 800 mm |
| Rated Voltage | 3~ 400 V ±10% |
| Rated Frequency | 50 Hz |
| Input Power | 1.90 / 1.10 kW |
| Rated Current | 3.90 / 2.00 A |
| Rated Speed | 870 / 630 rpm |
| Degree of Protection | IP54 |
| Thermal Class | THCL155 |
| Electrical Connection | Terminal Box K62 |
| Motor Protection | Thermal Contact |
| Minimum Operating Temperature | -40°C |
| Blade Material | Aluminium |
| Rotor Material | Aluminium |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Weight | 42.60 kg |
Key Features
3~ 400 V Operation
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
Delta / Star Connection
The documented electrical configuration provides delta and star operating points.
1.90 / 1.10 kW Input Power
The documented input power is 1.90 kW and 1.10 kW for the specified dual-speed operating points.
870 / 630 rpm
The documented rated speeds are 870 rpm and 630 rpm.
IP54 Protection
The documented degree of protection is IP54, with a thermal contact specified for motor protection.
Applications
- Industrial ventilation systems
- Refrigeration equipment airflow
- HVAC air movement
- Heat exchanger airflow
- Industrial equipment cooling
- Air handling equipment
- Condenser airflow systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN080-SDQ.6N.V7P5 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN080-SDQ.6N.V7P5?
ZIEHL-ABEGG FN080-SDQ.6N.V7P5 is an axial fan with sickle blades and article number 168786.
What is the fan diameter of FN080-SDQ.6N.V7P5?
The documented fan diameter is 800 mm.
What voltage does FN080-SDQ.6N.V7P5 use?
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
What connection does FN080-SDQ.6N.V7P5 use?
The documented electrical configuration uses delta and star operating points.
What is the input power of FN080-SDQ.6N.V7P5?
The documented input power values are 1.90 kW and 1.10 kW.
What is the rated current?
The documented rated current values are 3.90 A and 2.00 A.
What is the rated speed?
The documented rated speeds are 870 rpm and 630 rpm.
What degree of protection is specified?
The documented degree of protection is IP54.
What motor protection is specified?
The documented motor protection is a thermal contact.
What electrical connection is specified?
The documented electrical connection is terminal box K62.
What applications can FN080-SDQ.6N.V7P5 be considered for?
It can be considered for industrial ventilation, refrigeration, HVAC, heat exchanger and equipment cooling applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering FN080-SDQ.6N.V7P5?
Check the complete model and article number, voltage, frequency, connection, input power, current, speed, fan diameter and installation requirements against the existing equipment documentation.
Need help confirming a model?
Send us your part number and technical requirements.
