710 mm Axial Fan

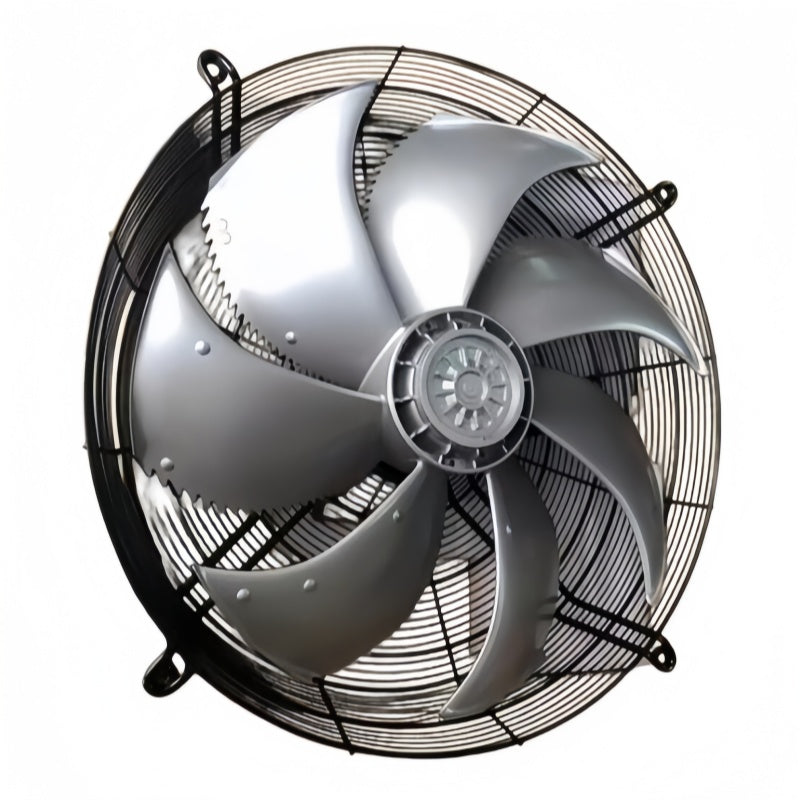

The FN071-SDK.6F.V7P1 is an axial fan with sickle blades and a 710 mm fan diameter.

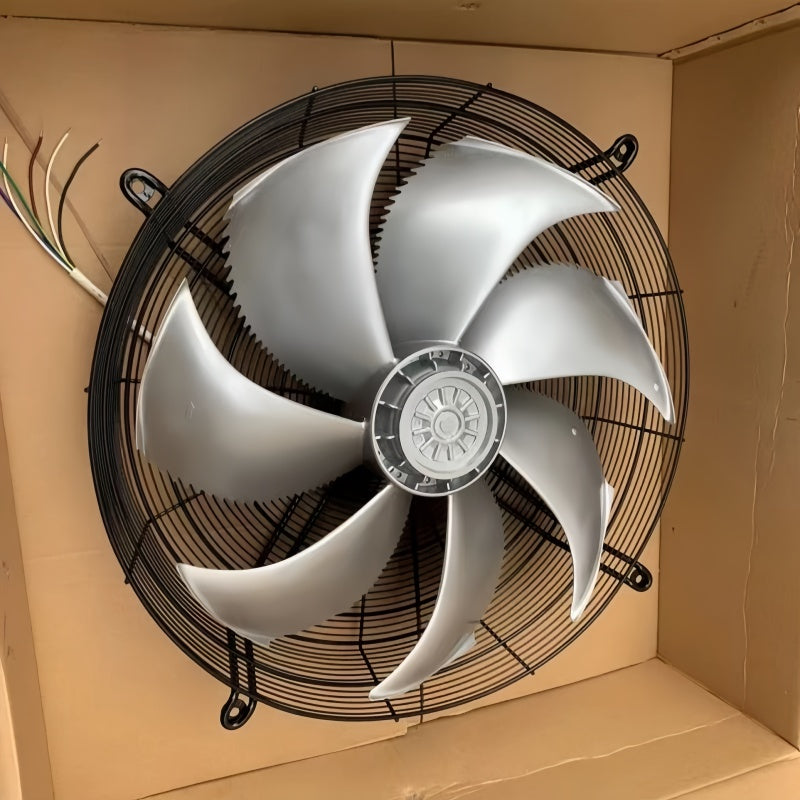

ZIEHL-ABEGG FN071-SDK.6F.V7P1 Axial Fan 400V 710mm 940/620W
Available in stock (200)
Regular price
$721.62
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN071-SDK.6F.V7P1 |
| Product Category | Axial Fan |
| Article Number | 141773 |
| Fan Design | Axial Fan with Sickle Blades |
| Rated Voltage | 3~ 400 V ±10% |
| Rated Frequency | 50 Hz |
| Input Power | 0.94 / 0.62 kW |
| Rated Current | 1.7 / 1.05 A |
| Rated Speed | 900 / 690 rpm |
| Fan Diameter | 710 mm |
| Electrical Connection | Terminal Box K62 |
| Degree of Protection | IP54 |
| Thermal Class | THCL155 |
| Motor Protection | Thermal Contact |
| Blade Material | Aluminium |
| Rotor Material | Aluminium |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Weight | 26.00 kg |
Key Features
3~ 400 V Operation
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
Delta / Star Connection
The documented electrical configuration provides delta and star operating points.
0.94 / 0.62 kW Input Power
The documented input power is 0.94 kW in delta operation and 0.62 kW in star operation.
900 / 690 rpm
The documented rated speeds are 900 rpm in delta operation and 690 rpm in star operation.
IP54 Protection
The documented degree of protection is IP54, with a thermal contact specified for motor protection.
Applications
- Industrial ventilation systems
- Refrigeration equipment airflow
- HVAC air movement
- Heat exchanger airflow
- Industrial equipment cooling
- Air handling equipment
- Condenser airflow systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN071-SDK.6F.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN071-SDK.6F.V7P1?
ZIEHL-ABEGG FN071-SDK.6F.V7P1 is an axial fan with sickle blades and article number 141773.
What voltage does FN071-SDK.6F.V7P1 use?
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
What connection does FN071-SDK.6F.V7P1 use?
The documented electrical configuration provides delta and star operating points.
What is the input power of FN071-SDK.6F.V7P1?
The documented input power is 0.94 kW in delta operation and 0.62 kW in star operation.
What is the rated current?
The documented rated current is 1.7 A in delta operation and 1.05 A in star operation.
What is the rated speed?
The documented rated speeds are 900 rpm in delta operation and 690 rpm in star operation.
What is the fan diameter?
The documented fan diameter is 710 mm.
What degree of protection is specified?
The documented degree of protection is IP54.
What motor protection does FN071-SDK.6F.V7P1 use?
The documented motor protection is a thermal contact.
What bearing type is specified?
The product documentation specifies ball bearings with long-time lubrication.
What applications can FN071-SDK.6F.V7P1 be considered for?
It can be considered for industrial ventilation, refrigeration, HVAC, heat exchanger and equipment cooling applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering FN071-SDK.6F.V7P1?
Check the complete model and article number, voltage, frequency, connection, input power, current, speed, fan diameter and installation requirements against the existing equipment documentation.
