500 mm FE2owlet Axial Fan

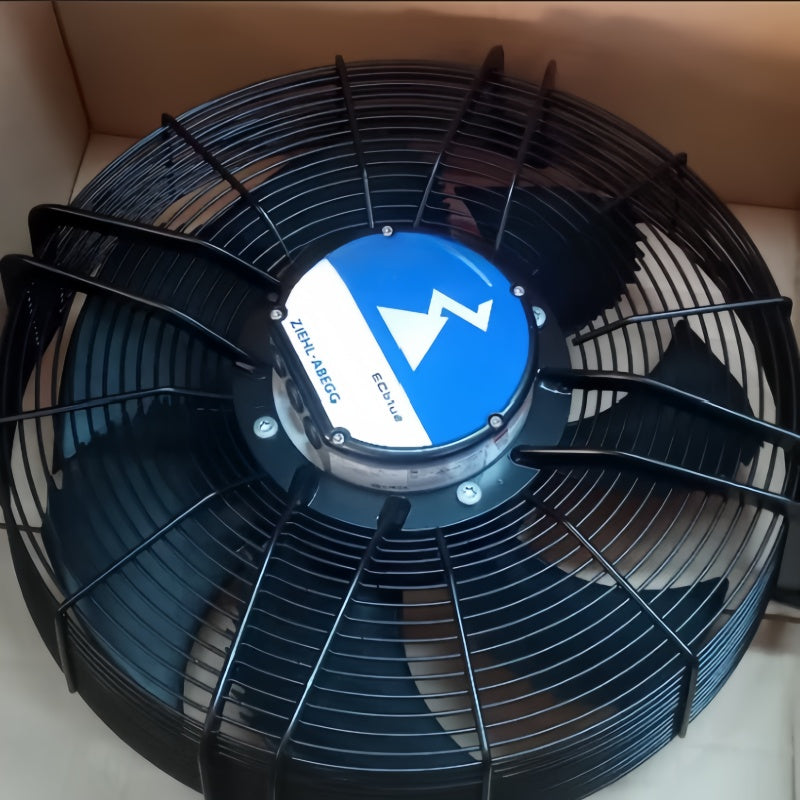

The FN050-ZIK.DC.V7P2 is a 500 mm axial fan with sickle-shaped blades from the ZIEHL-ABEGG FE2owlet range.
ZIEHL-ABEGG FN050-ZIK.DC.V7P2 Axial Fan 380-480 VAC 500 mm 1.00 kW
Available in stock (200)
Regular price
$1,569.43
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN050-ZIK.DC.V7P2 |
| Product Category | Axial Fan |
| Article Number | 179667 |
| Series | FE2owlet |
| Fan Design | Axial Fan with Sickle Blades |
| Fan Diameter | 500 mm |
| Motor Technology | ECblue |
| Efficiency Class | IE5 |
| Power Supply | 3-Phase |
| Rated Voltage | 380-480 VAC |
| Frequency | 50/60 Hz |
| Power Input | 1.00 kW |
| Rated Current | 1.70-1.35 A |
| Maximum Speed | 1550 RPM |
| Maximum Air Flow | Approx. 8500 m³/h |
| Degree of Protection | IP55 |
| Thermal Class | THCL 155 |
| Controller | Integrated EC Controller |
| Dimensions | 595 x 595 x 183 mm |
| Weight | 13.9 kg |
Key Features
ECblue Motor Technology
The fan uses ECblue electronically commutated motor technology with an integrated controller.
380-480 VAC Supply
The documented nominal range is three-phase 380-480 VAC at 50 or 60 Hz.
1.00 kW Power Input
The documented nominal values specify a maximum power input of 1.00 kW and rated current range of 1.70-1.35 A.
1550 RPM Maximum Speed
The manufacturer fan data specifies a maximum rotational speed of 1550 RPM for article number 179667.
IP55 Protection
The documented motor configuration has an IP55 degree of protection and THCL 155 thermal class.
Applications
- Refrigeration equipment
- Air-conditioning equipment
- Industrial ventilation systems
- Heat exchanger cooling
- Condenser cooling systems
- Industrial machinery cooling
- Air handling equipment
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN050-ZIK.DC.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN050-ZIK.DC.V7P2?
It is a 500 mm FE2owlet axial fan with sickle-shaped blades and ECblue motor technology.
What is the article number?
The documented article number is 179667.
What voltage does FN050-ZIK.DC.V7P2 use?
The documented nominal supply range is three-phase 380-480 VAC.
What frequencies are supported?
The documented nominal frequency range is 50/60 Hz.
What is the power input?
The documented nominal maximum power input is 1.00 kW.
What is the rated current?
The documented rated current range is 1.70-1.35 A across the specified voltage range.
What is the maximum fan speed?
The manufacturer fan data specifies a maximum speed of 1550 RPM.
What is the fan diameter?
The documented blade diameter is 500 mm.
What is the maximum airflow?
Model-specific technical data lists a maximum airflow of approximately 8500 m³/h at 0 Pa static pressure.
What is the protection rating?
The documented degree of protection is IP55 with THCL 155 thermal class.
What are the documented dimensions?
Manufacturer fan data lists dimensions of 595 x 595 x 183 mm and a product weight of 13.9 kg.
What should be checked before ordering FN050-ZIK.DC.V7P2?
Check the complete model number, article number 179667, three-phase 380-480 VAC supply, frequency, 500 mm diameter, dimensions, electrical connection and installation requirements before purchasing.
