500mm Axial Fan

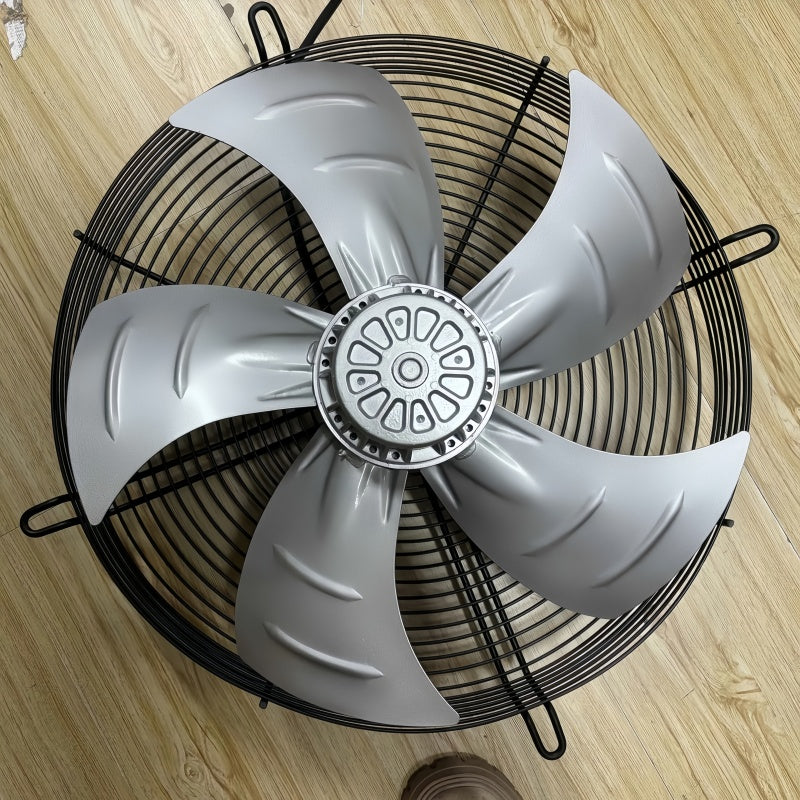

The FN050-VDQ.4I.V7P1 is a 500 mm axial fan designed with sickle-shaped blades for industrial air movement applications.
ZIEHL-ABEGG FN050-VDQ.4I.V7P1 Axial Fan 500mm 400V 0.84/0.54kW
Available in stock (200)
Regular price
$585.71
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN050-VDQ.4I.V7P1 |
| Product Category | Axial Fan |
| Product Range | FE2owlet |
| Article Number | 140322 |
| Fan Type | Axial Fan with Sickle Blades |
| Fan Diameter | 500 mm |
| Rated Voltage | 3~ 400 V ±10% |
| Rated Frequency | 50 Hz |
| Connection | Delta / Star |
| Power Input | 0.84 / 0.54 kW |
| Rated Current | 1.45 / 0.96 A |
| Speed | 1340 / 940 rpm |
| Protection Rating | IP54 |
| Thermal Class | THCL155 |
| Electrical Connection | Terminal Box K62 |
| Motor Protection | Thermal Contact |
| Rotor Material | Aluminium |
| Blade Material | Aluminium |
| Bearing Type | Ball Bearing with Long-Time Lubrication |
Key Features
3-Phase 400V Operation
The documented electrical rating is three-phase 400 V ±10% at 50 Hz with delta/star connection.
Dual Operating Speeds
The documented 50 Hz operating speeds are 1340 rpm and 940 rpm according to the selected delta/star connection.
0.84 / 0.54kW Power Input
The published rated values specify power input of 0.84 kW and 0.54 kW at the documented operating points.
IP54 Protection
The fan motor configuration is documented with an IP54 protection rating and THCL155 thermal class.
Thermal Contact Protection
The documented motor protection uses a thermal contact, with electrical connection provided through terminal box K62.
Applications
- Industrial ventilation systems
- Air handling equipment
- Industrial equipment cooling
- HVAC air movement applications
- Refrigeration equipment ventilation
- Industrial machinery ventilation
- Heat exchanger airflow systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN050-VDQ.4I.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN050-VDQ.4I.V7P1?
ZIEHL-ABEGG FN050-VDQ.4I.V7P1 is a 500 mm FE2owlet axial fan with sickle-shaped blades and a three-phase AC motor.
What is the diameter of FN050-VDQ.4I.V7P1?
The documented fan diameter is 500 mm.
What voltage does FN050-VDQ.4I.V7P1 use?
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
What is the power input of FN050-VDQ.4I.V7P1?
The published rated values specify 0.84 / 0.54 kW power input for the documented delta/star operating points.
What current does FN050-VDQ.4I.V7P1 use?
The documented rated current values are 1.45 / 0.96 A.
What speeds are specified for FN050-VDQ.4I.V7P1?
The documented speeds are 1340 / 940 rpm at 50 Hz.
What protection rating does FN050-VDQ.4I.V7P1 have?
The published technical data specifies an IP54 protection rating.
What thermal class is specified?
The documented thermal class for the fan motor is THCL155.
How is FN050-VDQ.4I.V7P1 electrically connected?
The documented electrical connection uses terminal box K62, with the terminal box mounted on the stator.
What motor protection does FN050-VDQ.4I.V7P1 use?
The published product specification identifies a thermal contact for motor protection.
What applications can FN050-VDQ.4I.V7P1 be considered for?
It can be considered for industrial ventilation, air handling, equipment cooling and other axial airflow applications after the electrical, airflow and installation requirements have been checked.
What should be checked before ordering FN050-VDQ.4I.V7P1?
Check the complete model number, 500 mm fan size, three-phase 400 V supply, 50 Hz frequency, delta/star operating requirements, power and current ratings, airflow requirements, mounting arrangement and electrical connection before ordering.
