450 mm Axial Fan
The FN045-4EK.2F.V7P2 is an AC axial fan with a documented fan diameter of 450 mm.

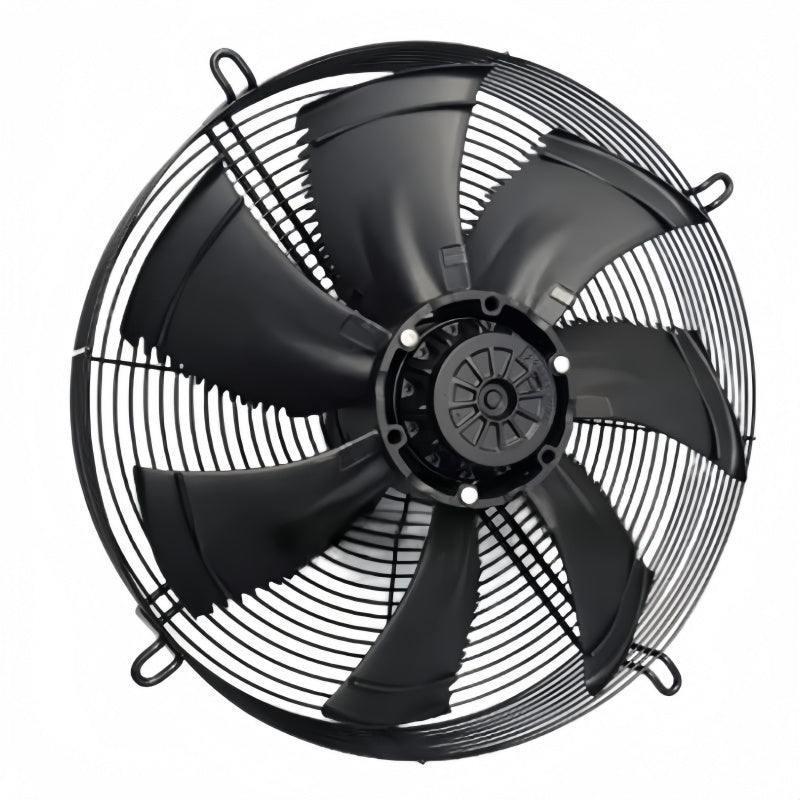

ZIEHL-ABEGG FN045-4EK.2F.V7P2 Axial Fan 230VAC 450mm 390W
Available in stock (200)
Regular price
$422.37
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN045-4EK.2F.V7P2 |
| Product Category | Axial Fan |
| Article Number | 141715 |
| Motor Type | AC |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC ±10% |
| Rated Frequency | 50 Hz |
| Fan Diameter | 450 mm |
| Power Input | 390 W |
| Rated Current | 1.75 A |
| Speed | 1290 RPM |
| Air Flow | 5700 m³/h at Δp = 0 Pa |
| Air Flow Direction | Suction |
| Capacitor | 7 µF / 400 V |
| Protection Rating | IP54 |
| Net Weight | 6.6 kg |
Key Features
230 VAC Operation
The documented electrical supply is single-phase 230 VAC ±10% at 50 Hz.
390 W Power Input
The documented power input for this fan configuration is 390 W with a rated current of 1.75 A.
1290 RPM Speed
The documented rotational speed of FN045-4EK.2F.V7P2 is 1290 RPM.
5700 m³/h Air Flow
The documented air flow is 5700 m³/h at a pressure difference of 0 Pa.
IP54 Protection
The documented degree of protection for this fan configuration is IP54.
Applications
- Industrial equipment ventilation
- Refrigeration equipment airflow
- Air conditioning equipment
- Condenser ventilation
- Industrial cooling systems
- Machinery air circulation
- Equipment heat removal
- Industrial ventilation systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN045-4EK.2F.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN045-4EK.2F.V7P2?
ZIEHL-ABEGG FN045-4EK.2F.V7P2 is a single-phase AC axial fan with a documented diameter of 450 mm.
What is the article number for FN045-4EK.2F.V7P2?
The documented article number is 141715.
What voltage does FN045-4EK.2F.V7P2 use?
The documented rated voltage is 230 VAC ±10%.
What frequency does FN045-4EK.2F.V7P2 use?
The documented rated frequency is 50 Hz.
What is the fan diameter of FN045-4EK.2F.V7P2?
The documented fan diameter is 450 mm.
What is the power input of FN045-4EK.2F.V7P2?
The documented power input is 390 W.
What is the rated current of FN045-4EK.2F.V7P2?
The documented rated current is 1.75 A.
What is the speed of FN045-4EK.2F.V7P2?
The documented rotational speed is 1290 RPM.
What is the air flow of FN045-4EK.2F.V7P2?
The documented air flow is 5700 m³/h at Δp = 0 Pa.
What is the protection rating of FN045-4EK.2F.V7P2?
The documented degree of protection is IP54.
What applications can FN045-4EK.2F.V7P2 be considered for?
It can be considered for industrial ventilation, refrigeration, air conditioning and equipment cooling applications after electrical, airflow and installation requirements have been checked.
What should be checked before ordering FN045-4EK.2F.V7P2?
Check the complete model number, 230 VAC supply, 50 Hz frequency, 450 mm fan diameter, electrical ratings, airflow requirements and mechanical installation requirements before ordering.
