450 mm Axial Fan
The FN045-4DK.2F.V7P2 is an axial fan with sickle-shaped blades and a documented fan diameter of 450 mm.

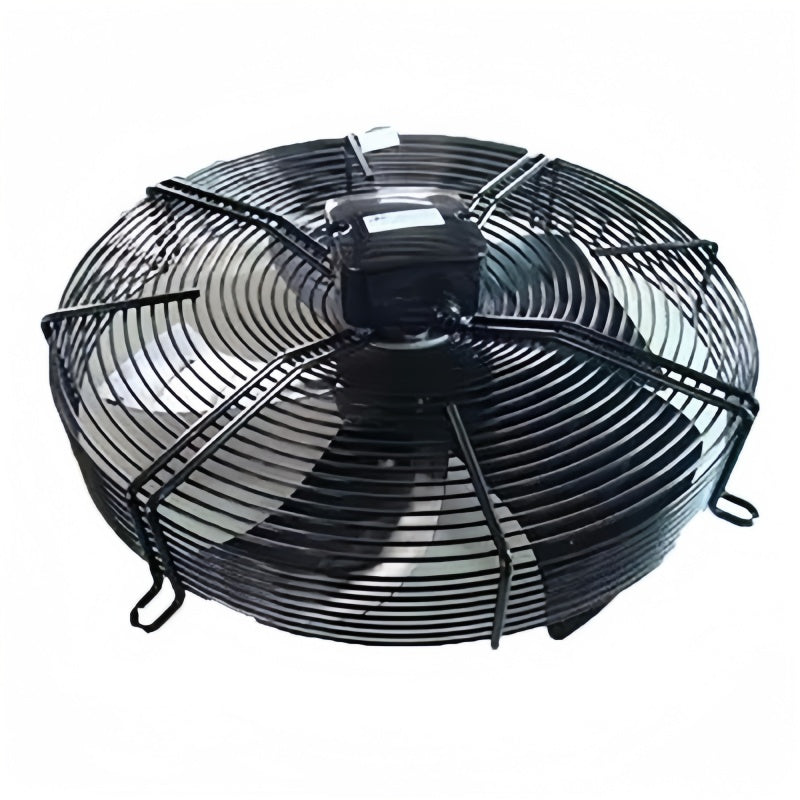

ZIEHL-ABEGG FN045-4DK.2F.V7P2 Axial Fan 230/400VAC 450mm 350W
Available in stock (200)
Regular price
$323.29
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN045-4DK.2F.V7P2 |
| Product Category | Axial Fan |
| Article Number | 157260 |
| Designation | Axial Fan with Sickle Blades |
| Fan Diameter | 450 mm |
| Rated Voltage | 3~ 230/400 VAC ±10% Δ/Y |
| Rated Frequency | 50/60 Hz |
| Power Input | 0.35 kW at 50 Hz / 0.49 kW at 60 Hz |
| Rated Current | 1.10/0.64 A at 50 Hz / 1.35/0.79 A at 60 Hz |
| Speed | 1280 RPM at 50 Hz / 1350 RPM at 60 Hz |
| Motor Protection | Thermal Contact |
| Bearing Type | Ball Bearing with Long-Time Lubrication |
| Rotor Material | Aluminium |
| Blade Material | High Performance Composite Material |
| Grille Type | Ring Grille |
| Weight | 6.60 kg |
Key Features
230/400 VAC Supply
The documented rated supply is three-phase 230/400 VAC ±10% with delta/star connection.
50/60 Hz Operation
The documented electrical ratings include operation at both 50 Hz and 60 Hz.
350 W at 50 Hz
The documented power input is 0.35 kW at 50 Hz and 0.49 kW at 60 Hz.
1280/1350 RPM Speed
The documented rotational speed is 1280 RPM at 50 Hz and 1350 RPM at 60 Hz.
Thermal Contact
The documented motor protection uses a thermal contact, and the motor uses ball bearings with long-time lubrication.
Applications
- Industrial equipment ventilation
- Refrigeration equipment airflow
- Condenser airflow
- Air conditioning equipment
- Industrial cooling systems
- Machinery air circulation
- Equipment heat removal
- Industrial ventilation systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN045-4DK.2F.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN045-4DK.2F.V7P2?
ZIEHL-ABEGG FN045-4DK.2F.V7P2 is a three-phase axial fan with sickle-shaped blades and a 450 mm fan diameter.
What is the article number for FN045-4DK.2F.V7P2?
The documented article number is 157260.
What voltage does FN045-4DK.2F.V7P2 use?
The documented rated voltage is three-phase 230/400 VAC ±10% with delta/star connection.
What frequencies does FN045-4DK.2F.V7P2 support?
The documented rated frequencies are 50 Hz and 60 Hz.
What is the fan diameter of FN045-4DK.2F.V7P2?
The documented fan diameter is 450 mm.
What is the power input of FN045-4DK.2F.V7P2?
The documented power input is 0.35 kW at 50 Hz and 0.49 kW at 60 Hz.
What is the rated current of FN045-4DK.2F.V7P2?
The documented rated current is 1.10/0.64 A at 50 Hz and 1.35/0.79 A at 60 Hz.
What is the speed of FN045-4DK.2F.V7P2?
The documented rotational speed is 1280 RPM at 50 Hz and 1350 RPM at 60 Hz.
What motor protection does FN045-4DK.2F.V7P2 use?
The documented motor protection is a thermal contact.
What materials are documented for FN045-4DK.2F.V7P2?
The documented rotor material is aluminium and the blade material is high performance composite material.
What applications can FN045-4DK.2F.V7P2 be considered for?
It can be considered for industrial ventilation, refrigeration, air conditioning and equipment cooling applications after electrical, airflow and installation requirements have been checked.
What should be checked before ordering FN045-4DK.2F.V7P2?
Check the complete model number, three-phase 230/400 VAC supply, delta/star connection, operating frequency, 450 mm fan diameter, electrical ratings and mechanical installation requirements before ordering.
