400 mm Axial Fan

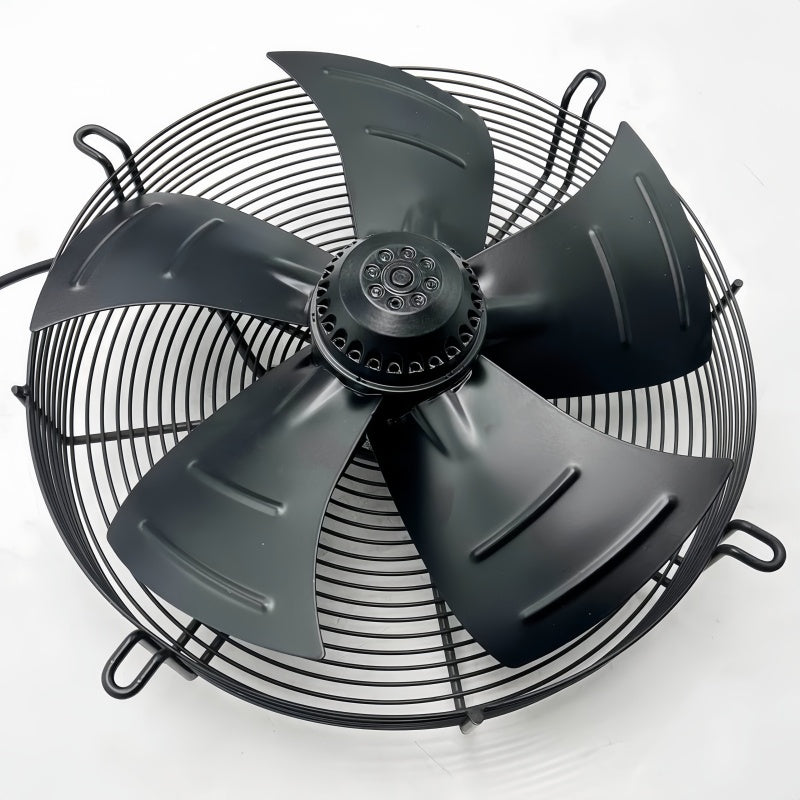

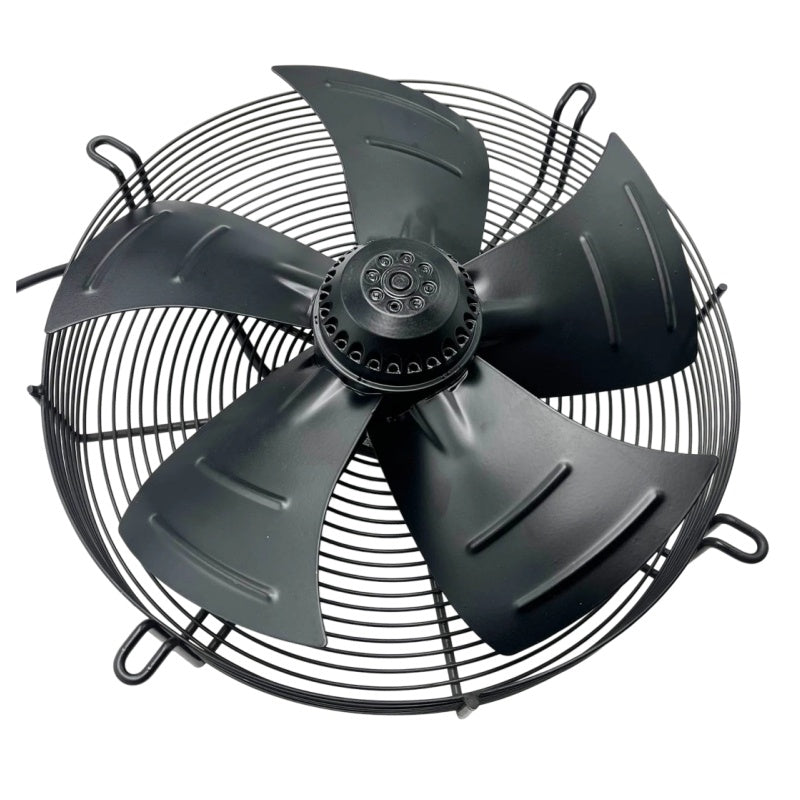

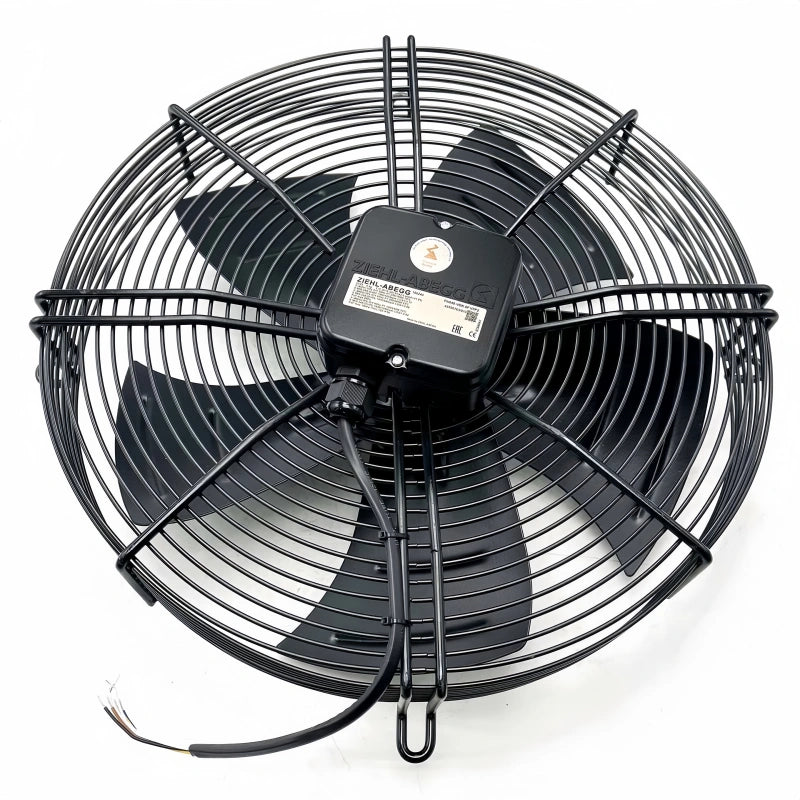

The FN040-VDK.0F.V7P2 is a 400 mm axial fan configuration with sickle-shaped blades.
ZIEHL-ABEGG FN040-VDK.0F.V7P2 Axial Fan 400V 400mm 260/180W
Available in stock (200)
Regular price
$419.46
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN040-VDK.0F.V7P2 |
| Product Category | Axial Fan |
| Article Number | 156244 |
| Fan Design | Axial Fan with Sickle Blades |
| Fan Diameter | 400 mm |
| Rated Voltage | 3~ 400 V ±10% |
| Rated Frequency | 50 Hz |
| Input Power | 260 / 180 W |
| Rated Current | 0.50 / 0.29 A |
| Rated Speed | 1340 / 1020 rpm |
| Degree of Protection | IP54 |
| Thermal Class | THCL155 |
| Motor Protection | Thermal Contact |
| Electrical Connection | Terminal Box K05 |
| Blade Material | High Performance Composite Material |
| Rotor Material | Aluminium |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Weight | 5.70 kg |
Key Features
3~ 400 V Operation
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
Delta / Star Connection
The fan supports documented delta and star connection operating points at the rated 400 V supply.
260 / 180 W Input Power
The documented rated input power is 260 W in delta connection and 180 W in star connection.
1340 / 1020 rpm
The documented rated speeds are 1340 rpm in delta connection and 1020 rpm in star connection.
IP54 Protection
The documented degree of protection is IP54, with thermal contact provided for motor protection.
Applications
- Industrial ventilation systems
- HVAC air movement
- Air handling equipment
- Heat exchanger airflow
- Industrial machinery ventilation
- Equipment cooling systems
- Refrigeration equipment ventilation
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN040-VDK.0F.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN040-VDK.0F.V7P2?
ZIEHL-ABEGG FN040-VDK.0F.V7P2 is a 400 mm axial fan with sickle-shaped blades.
What is the article number for FN040-VDK.0F.V7P2?
The documented article number is 156244.
What voltage does FN040-VDK.0F.V7P2 use?
The documented rated supply is three-phase 400 V ±10% at 50 Hz.
What connection does FN040-VDK.0F.V7P2 use?
The documented electrical configuration provides delta and star connection operating points.
What is the input power of FN040-VDK.0F.V7P2?
The documented rated input power is 260 W in delta connection and 180 W in star connection at 400 V and 50 Hz.
What is the rated current?
The documented rated current is 0.50 A in delta connection and 0.29 A in star connection.
What is the rated speed?
The documented rated speeds are 1340 rpm in delta connection and 1020 rpm in star connection.
What degree of protection is specified?
The documented degree of protection is IP54.
What motor protection does FN040-VDK.0F.V7P2 use?
The documented motor protection is a thermal contact.
What materials are documented for the fan?
The blades are specified as high performance composite material and the rotor is aluminium.
What applications can FN040-VDK.0F.V7P2 be considered for?
It can be considered for industrial ventilation, HVAC, air handling, refrigeration and equipment cooling applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering FN040-VDK.0F.V7P2?
Check the complete model and article number, voltage, frequency, connection, required operating point, fan diameter and installation requirements against the existing equipment documentation.
