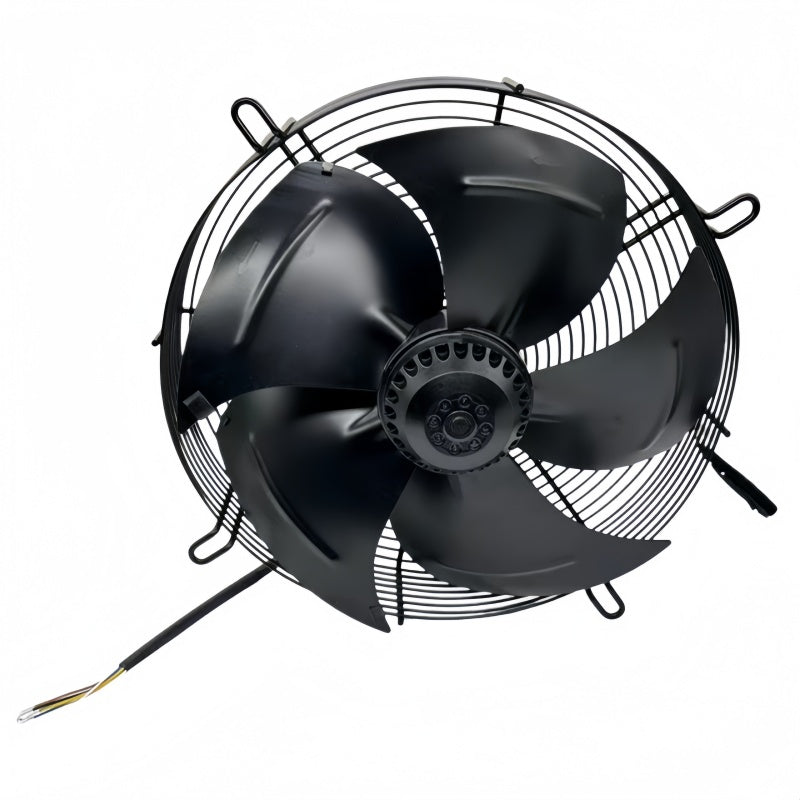

350 mm Axial Fan
The FN035-VDK.0F.V7P2 is an axial fan with a documented 350 mm fan diameter.
ZIEHL-ABEGG FN035-VDK.0F.V7P2 Axial Fan 400V 350mm 182W
Available in stock (200)
Regular price
$367.21
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN035-VDK.0F.V7P2 |
| Product Category | Axial Fan |
| Article Number | 155892 |
| Motor Technology | AC |
| Rated Voltage | 3~ 400 V |
| Rated Frequency | 50 Hz |
| Rated Current | 0.40 A |
| Power Input | 182 W |
| Fan Speed | 1395 rpm |
| Fan Diameter | 350 mm |
| Impeller Material | Composite Material |
| Dimensions | 415 x 415 x 182 mm |
| Weight | 5.3 kg |
Key Features
3~ 400 V Operation
The documented operating point uses a three-phase 400 V supply at 50 Hz.
182 W Power Input
The documented power input at the specified operating point is 182 W.
1395 rpm Fan Speed
The documented fan speed at the specified operating point is 1395 rpm.
Composite Impeller
The documented impeller material for this fan configuration is composite material.
Design K
The K design uses axial mounting for a short bell mouth with the guard grille on the pressure side.
Applications
- Industrial ventilation systems
- Refrigeration equipment airflow
- HVAC air movement
- Heat exchanger airflow
- Industrial equipment cooling
- Machine ventilation
- Air handling equipment
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN035-VDK.0F.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN035-VDK.0F.V7P2?
ZIEHL-ABEGG FN035-VDK.0F.V7P2 is an AC axial fan with article number 155892.
What voltage does FN035-VDK.0F.V7P2 use?
The documented operating point uses a three-phase 400 V supply at 50 Hz.
What is the rated current of FN035-VDK.0F.V7P2?
The documented rated current is 0.40 A.
What is the power input of FN035-VDK.0F.V7P2?
The documented power input at the specified operating point is 182 W.
What is the fan speed?
The documented fan speed at the specified operating point is 1395 rpm.
What is the fan diameter?
The documented fan diameter is 350 mm.
What are the dimensions of FN035-VDK.0F.V7P2?
The documented dimensions are 415 x 415 x 182 mm.
What is the documented weight?
The documented weight is 5.3 kg.
What material is used for the impeller?
The documented impeller material is composite material.
What applications can FN035-VDK.0F.V7P2 be considered for?
It can be considered for industrial ventilation, refrigeration, HVAC, equipment cooling and air handling applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering FN035-VDK.0F.V7P2?
Check the complete model and article number, voltage, frequency, current, power input, fan speed, dimensions and installation requirements against the existing equipment documentation.
