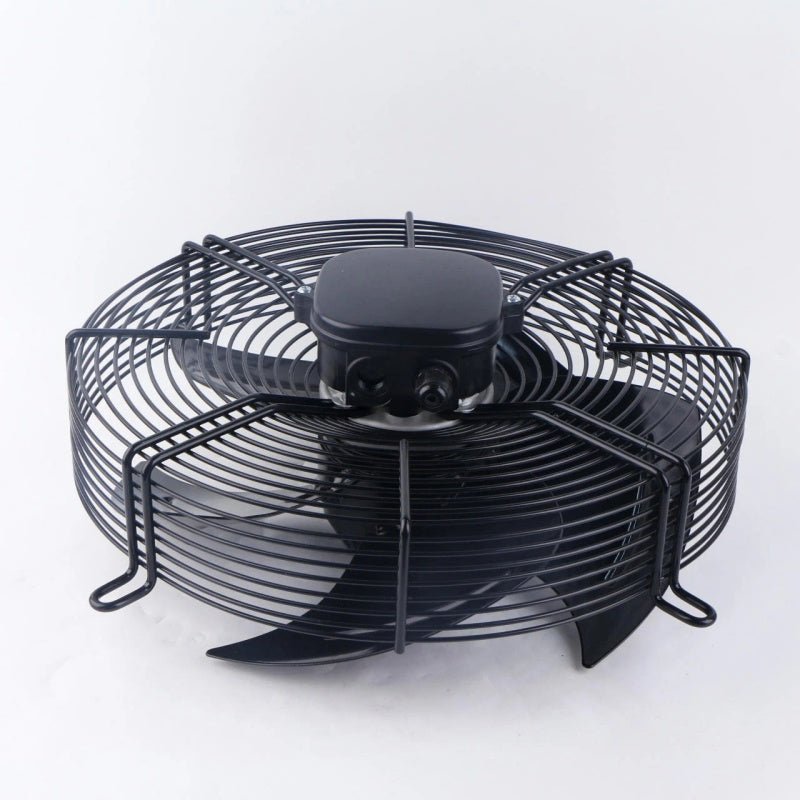

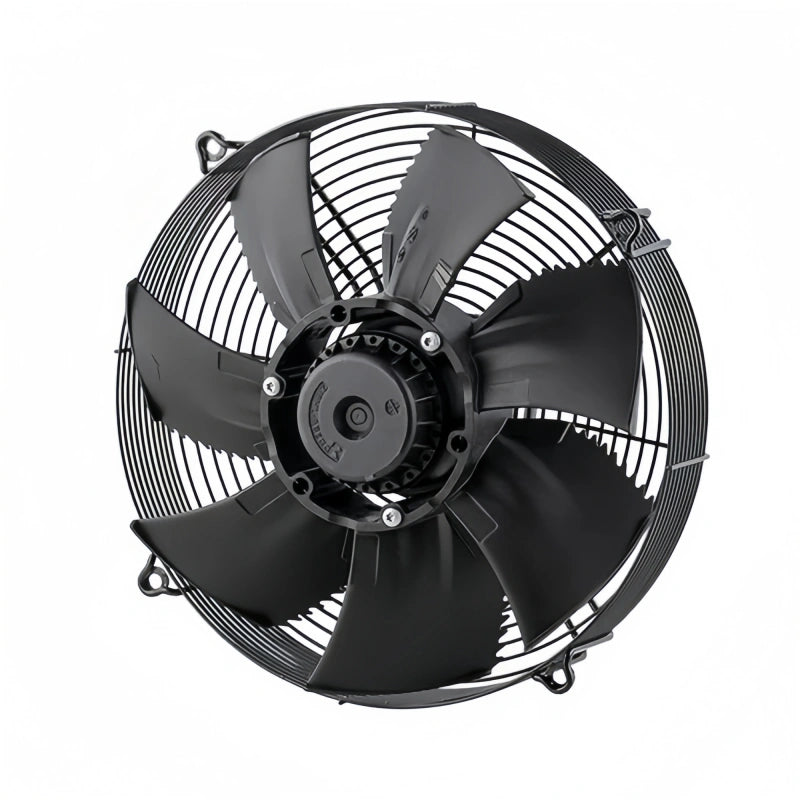

350 mm Axial Fan
The FN035-4EK.0F.V7P3 is an axial fan with sickle blades and a documented 350 mm fan diameter.
ZIEHL-ABEGG FN035-4EK.0F.V7P3 Axial Fan 230V 350mm 150/230W
Available in stock (200)
Regular price
$418.86
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN035-4EK.0F.V7P3 |
| Product Category | Axial Fan |
| Article Number | 171261 |
| Fan Design | Axial Fan with Sickle Blades |
| Rated Voltage | 1~ 230 V ±10% |
| Rated Frequency | 50 / 60 Hz |
| Input Power | 150 W / 230 W |
| Rated Current | 0.65 A / 1.0 A |
| Rated Speed | 1390 rpm / 1520 rpm |
| Fan Diameter | 350 mm |
| Capacitor | 3 µF / 400 V |
| Degree of Protection | IP54 |
| Thermal Class | 155 |
| Electrical Connection | Terminal Box K05 |
| Motor Protection | Thermal Contact |
| Impeller Material | High Performance Composite Material |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Weight | 5.3 kg |
Key Features
1~ 230 V Operation
The documented rated supply is single-phase 230 V ±10% at 50 or 60 Hz.
150 / 230 W Input Power
The documented input power is 150 W at 50 Hz and 230 W at 60 Hz.
1390 / 1520 rpm
The documented rated speed is 1390 rpm at 50 Hz and 1520 rpm at 60 Hz.
IP54 Protection
The documented degree of protection for the fan is IP54.
Thermal Contact
The documented motor protection is a thermal contact, with electrical connection through terminal box K05.
Applications
- Industrial equipment cooling
- Refrigeration equipment ventilation
- HVAC air movement
- Heat exchanger airflow
- Industrial ventilation systems
- Air handling equipment
- Mechanical equipment ventilation
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN035-4EK.0F.V7P3 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN035-4EK.0F.V7P3?
ZIEHL-ABEGG FN035-4EK.0F.V7P3 is a 350 mm axial fan with sickle blades.
What voltage does FN035-4EK.0F.V7P3 use?
The documented rated supply is single-phase 230 V ±10%.
What frequencies are specified?
The documented operating points are specified for 50 Hz and 60 Hz.
What is the input power of FN035-4EK.0F.V7P3?
The documented input power is 150 W at 50 Hz and 230 W at 60 Hz.
What is the rated current?
The documented rated current is 0.65 A at 50 Hz and 1.0 A at 60 Hz.
What is the rated speed?
The documented rated speed is 1390 rpm at 50 Hz and 1520 rpm at 60 Hz.
What is the fan diameter?
The documented fan diameter is 350 mm.
What degree of protection is specified?
The documented degree of protection is IP54.
What motor protection is specified?
The documented motor protection is a thermal contact.
What electrical connection is specified?
The documented electrical connection is terminal box K05.
What applications can FN035-4EK.0F.V7P3 be considered for?
It can be considered for industrial ventilation, refrigeration, HVAC, heat exchanger and equipment cooling applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering FN035-4EK.0F.V7P3?
Check the complete model and article number, voltage, frequency, input power, current, speed, fan diameter and installation requirements against the existing equipment documentation.
