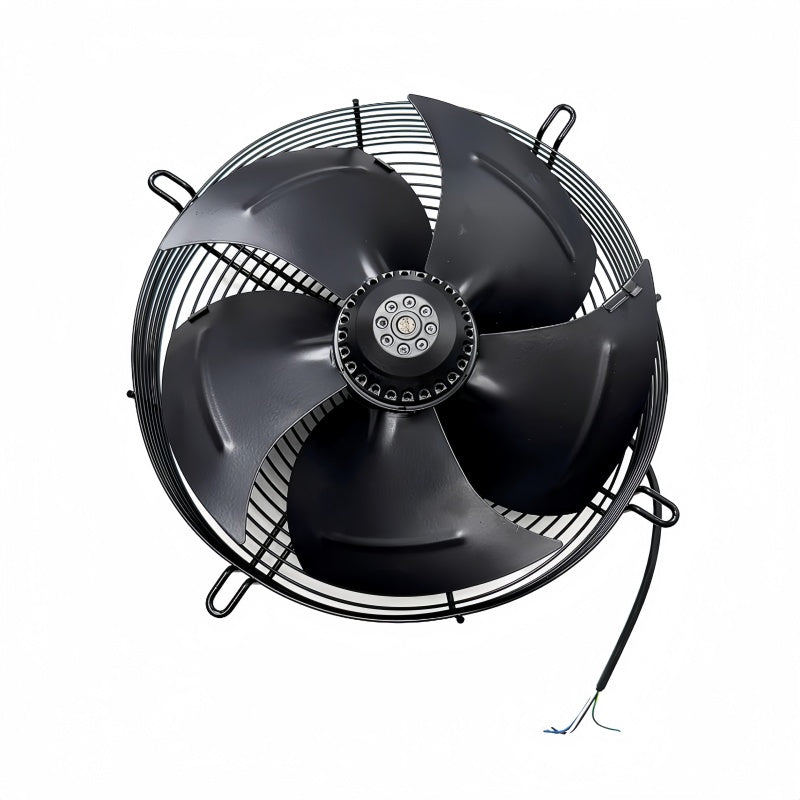

350 mm Axial Fan
The FN035-4DK.0F.V7P2 is an axial fan with sickle-shaped blades and a documented fan diameter of 350 mm.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG FN035-4DK.0F.V7P2 Axial Fan 230/400VAC 350mm 190W
PRODUCT PRICE
USD
$335.68
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN035-4DK.0F.V7P2 |
| Product Category | Axial Fan |
| Article Number | 170524 |
| Designation | Axial Fan with Sickle Blades |
| Fan Diameter | 350 mm |
| Power Supply | Three-Phase |
| Rated Voltage | 3~ 230/400 VAC ±10% Δ/Y |
| Rated Frequency | 50/60 Hz |
| Power Input | 190 W at 50 Hz / 280 W at 60 Hz |
| Rated Current | 0.69/0.40 A at 50 Hz / 0.83/0.48 A at 60 Hz |
| Speed | 1390 RPM at 50 Hz / 1560 RPM at 60 Hz |
| Electrical Connection | Terminal Box K05 |
| Protection Rating | IP54 |
| Thermal Class | THCL155 |
| Motor Protection | Thermal Contact |
| Bearing Type | Ball Bearing with Long-Time Lubrication |
| Rotor Material | Aluminium |
| Blade Material | High Performance Composite Material |
| Mounting Position | H/Vu/Vo |
| Weight | 5.20 kg |
Key Features
230/400 VAC Three-Phase Supply
The documented rated supply is three-phase 230/400 VAC ±10% with delta/star connection.
50/60 Hz Operation
The documented electrical ratings cover operation at both 50 Hz and 60 Hz.
190/280 W Power Input
The documented power input is 190 W at 50 Hz and 280 W at 60 Hz.
1390/1560 RPM Speed
The documented rotational speed is 1390 RPM at 50 Hz and 1560 RPM at 60 Hz.
IP54 Protection
The documented degree of protection is IP54, with THCL155 thermal class and thermal-contact motor protection.
Applications
- Industrial equipment ventilation
- Evaporator airflow
- Condenser airflow
- Refrigeration equipment
- Air conditioning equipment
- Industrial cooling systems
- Machinery air circulation
- Industrial ventilation systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN035-4DK.0F.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN035-4DK.0F.V7P2?
ZIEHL-ABEGG FN035-4DK.0F.V7P2 is a three-phase axial fan with sickle-shaped blades and a 350 mm fan diameter.
What is the article number for FN035-4DK.0F.V7P2?
The documented article number is 170524.
What voltage does FN035-4DK.0F.V7P2 use?
The documented rated voltage is three-phase 230/400 VAC ±10% with delta/star connection.
What frequencies does FN035-4DK.0F.V7P2 support?
The documented rated frequencies are 50 Hz and 60 Hz.
What is the fan diameter of FN035-4DK.0F.V7P2?
The documented fan diameter is 350 mm.
What is the power input of FN035-4DK.0F.V7P2?
The documented power input is 190 W at 50 Hz and 280 W at 60 Hz.
What is the rated current of FN035-4DK.0F.V7P2?
The documented rated current is 0.69/0.40 A at 50 Hz and 0.83/0.48 A at 60 Hz for delta/star connection.
What is the speed of FN035-4DK.0F.V7P2?
The documented rotational speed is 1390 RPM at 50 Hz and 1560 RPM at 60 Hz.
What is the protection rating of FN035-4DK.0F.V7P2?
The documented degree of protection is IP54.
What motor protection does FN035-4DK.0F.V7P2 use?
The documented motor protection is a thermal contact.
What applications can FN035-4DK.0F.V7P2 be considered for?
It can be considered for industrial ventilation, evaporator, condenser, refrigeration and equipment cooling applications after electrical, airflow and installation requirements have been checked.
What should be checked before ordering FN035-4DK.0F.V7P2?
Check the complete model number, three-phase 230/400 VAC supply, delta/star connection, operating frequency, 350 mm fan diameter, electrical ratings and mechanical installation requirements before ordering.
