630 mm Axial Fan

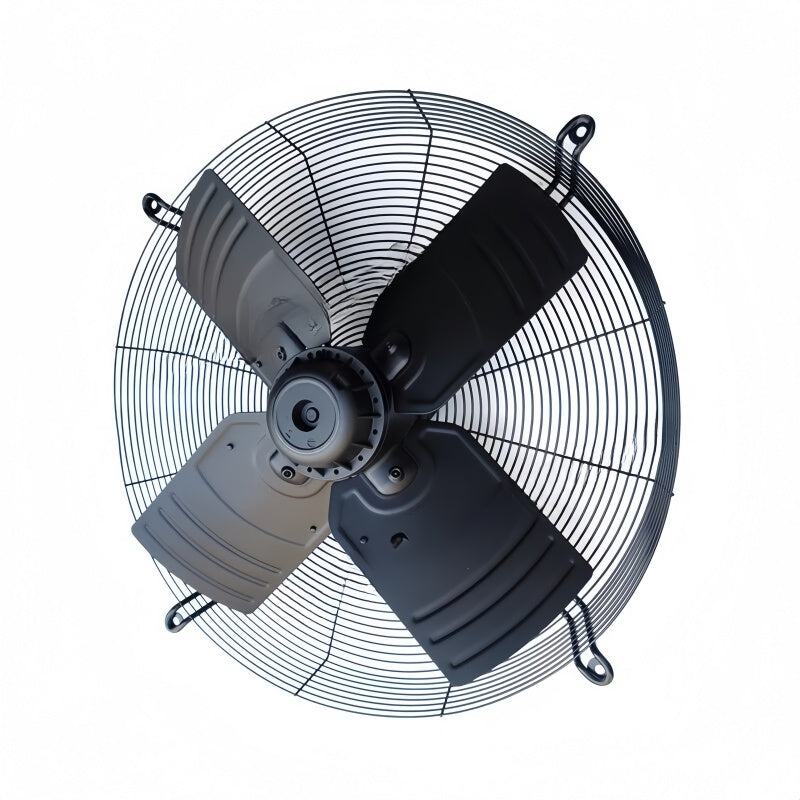

The FB063-6EK.4I.V4P is an axial fan with sheet blades and a documented fan diameter of 630 mm.
1 / 9
ZIEHL-ABEGG
ZIEHL-ABEGG FB063-6EK.4I.V4P Axial Fan 230VAC 630mm 630W
PRODUCT PRICE
USD
$347.45
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FB063-6EK.4I.V4P |
| Product Category | Axial Fan |
| Article Number | 101680 |
| Fan Design | Axial Fan with Sheet Blades |
| Rated Voltage | 1~ 230 V ±10% |
| Rated Frequency | 50 Hz |
| Input Power | 630 W |
| Rated Current | 3.00 A |
| Rated Speed | 860 rpm |
| Fan Diameter | 630 mm |
| Capacitor | 12.0 µF / 400 V |
| Degree of Protection | IP54 |
| Thermal Class | THCL155 |
| Electrical Connection | Terminal Box K62 |
| Motor Protection | Thermal Contact |
| Blade Material | Aluminium |
| Rotor Material | Aluminium |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Weight | 12.80 kg |
Key Features
1~ 230 V Operation
The documented rated supply is single-phase 230 V ±10% at 50 Hz.
630 W Input Power
The documented rated input power is 630 W with a rated current of 3.00 A.
860 rpm Rated Speed
The documented rated operating speed is 860 rpm.
IP54 Protection
The documented degree of protection is IP54 and the thermal class is THCL155.
Thermal Contact
The motor protection specified in the product documentation is a thermal contact.
Applications
- Air-conditioning equipment
- Industrial ventilation systems
- HVAC air movement
- Refrigeration equipment ventilation
- Heat exchanger airflow
- Industrial equipment cooling
- Air handling equipment
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FB063-6EK.4I.V4P Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FB063-6EK.4I.V4P?
ZIEHL-ABEGG FB063-6EK.4I.V4P is an axial fan with sheet blades and article number 101680.
What voltage does FB063-6EK.4I.V4P use?
The documented rated supply is single-phase 230 V ±10% at 50 Hz.
What is the input power of FB063-6EK.4I.V4P?
The documented rated input power is 630 W.
What is the rated current?
The documented rated current is 3.00 A.
What is the rated speed of FB063-6EK.4I.V4P?
The documented rated speed is 860 rpm.
What is the fan diameter?
The documented fan diameter is 630 mm.
What degree of protection is specified?
The documented degree of protection is IP54.
What electrical connection does FB063-6EK.4I.V4P use?
The documented electrical connection is terminal box K62.
What motor protection is specified?
The documented motor protection is a thermal contact.
What bearing type is specified?
The product documentation specifies a ball bearing with long-time lubrication.
What applications can FB063-6EK.4I.V4P be considered for?
It can be considered for air-conditioning, HVAC, refrigeration and industrial ventilation applications after airflow, pressure, electrical and installation requirements have been checked.
What should be checked before ordering FB063-6EK.4I.V4P?
Check the complete model and article number, voltage, frequency, input power, current, speed, fan diameter, electrical connection and installation requirements against the existing equipment documentation.
Need help confirming a model?
Send us your part number and technical requirements.
