500 mm Axial Fan
The FB050-VDK.4I.V4S is a 500 mm FB Series axial fan with pressed-steel blade design for industrial airflow applications.

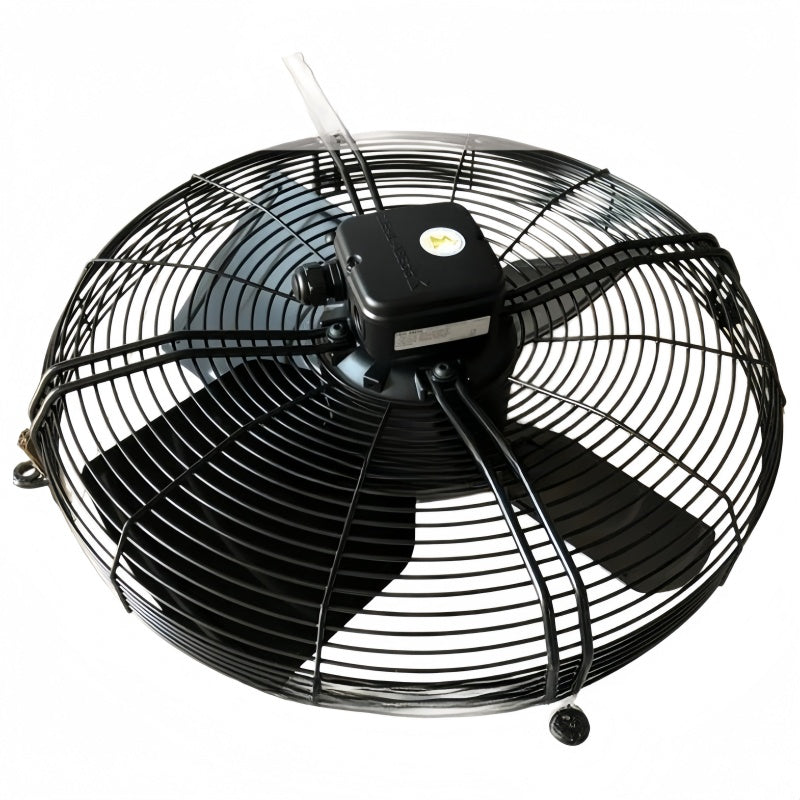

ZIEHL-ABEGG FB050-VDK.4I.V4S Axial Fan 500mm 400VAC 820W
Available in stock (200)
Regular price
$456.82
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FB050-VDK.4I.V4S |
| Product Category | Axial Fan |
| Article Number | 103676 |
| Series | FB Series |
| Fan Design | Axial Fan with Pressed-Steel Blades |
| Fan Diameter | 500 mm |
| Motor Technology | AC |
| Phase | 3-Phase |
| Rated Voltage | 3~ 400 VAC ±10% |
| Frequency | 50/60 Hz |
| Input Power at 50 Hz | 0.82 / 0.55 kW |
| Rated Current at 50 Hz | 1.50 / 0.95 A |
| Rated Speed at 50 Hz | 1330 / 1030 RPM |
| Input Power at 60 Hz | 1.10 / 0.60 kW |
| Rated Current at 60 Hz | 1.90 / 1.00 A |
| Rated Speed at 60 Hz | 1400 / 980 RPM |
| Airflow Direction | Suction (V) |
| Degree of Protection | IP54 |
| Thermal Class | 155 |
| Motor Protection | Thermal Contact |
| Bearing Type | Ball Bearing |
| Electrical Connection | Terminal Box |
| Number of Blades | 4 |
| Blade Material | Aluminium |
Key Features
400 VAC 3-Phase Supply
The documented electrical configuration uses a three-phase 400 VAC ±10% supply with delta and star connection options.
Dual-Speed Configuration
At 50 Hz, documented rated speeds are 1330 RPM in delta connection and 1030 RPM in star connection.
50/60 Hz Operation
The documented performance data covers both 50 Hz and 60 Hz operating frequencies.
IP54 Protection
The documented motor configuration includes IP54 protection, thermal class 155 and thermal-contact motor protection.
Short-Nozzle Design
The FB Series pressed-steel blade design is configured for installation in short nozzles in ventilation and cooling equipment.
Applications
- Refrigeration equipment
- Air conditioning equipment
- Condenser airflow systems
- Heat exchanger airflow
- Industrial equipment ventilation
- Industrial machinery cooling
- Industrial air circulation
- Equipment heat removal
Purchase Information
We support online purchase of the ZIEHL-ABEGG FB050-VDK.4I.V4S Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FB050-VDK.4I.V4S?
ZIEHL-ABEGG FB050-VDK.4I.V4S is a 500 mm FB Series axial fan with a three-phase AC motor configuration.
What is the article number of FB050-VDK.4I.V4S?
The documented article number is 103676.
What is the fan diameter of FB050-VDK.4I.V4S?
The documented fan diameter is 500 mm.
What voltage does FB050-VDK.4I.V4S use?
The documented nominal supply is three-phase 400 VAC ±10%.
Does FB050-VDK.4I.V4S support 50 Hz and 60 Hz?
Yes. Documented performance data is available for both 50 Hz and 60 Hz operation.
What is the input power at 50 Hz?
The documented input power is 0.82 kW in delta connection and 0.55 kW in star connection.
What is the rated speed at 50 Hz?
The documented rated speed is 1330 RPM in delta connection and 1030 RPM in star connection.
What is the rated speed at 60 Hz?
The documented rated speed is 1400 RPM in delta connection and 980 RPM in star connection.
What is the protection rating of FB050-VDK.4I.V4S?
The documented degree of protection is IP54.
What motor protection is used?
The documented motor protection is a thermal contact.
Can FB050-VDK.4I.V4S be considered for an existing system?
It can be considered after the complete model designation and the required electrical, airflow, dimensional and mechanical installation specifications have been checked against the existing system.
What should be checked before ordering FB050-VDK.4I.V4S?
Check the complete model designation together with the required voltage, frequency, connection, power, current, speed, airflow direction, dimensions and installation requirements before ordering.
