SINAMICS S120 Interface Module

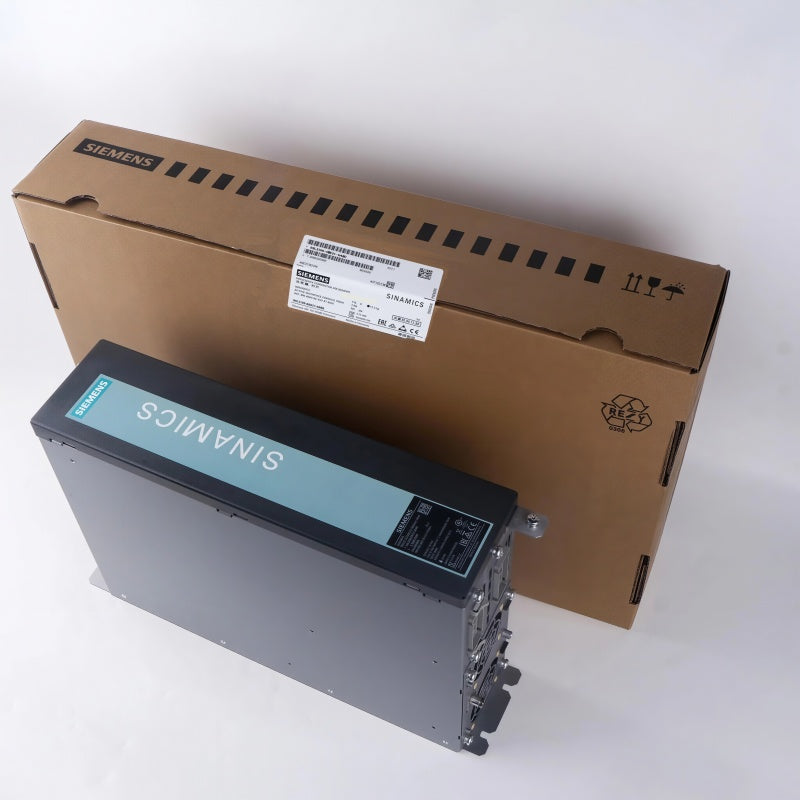

The 6SL3100-0BE21-6AB0 is an Active Interface Module in booksize format for use with a suitable 16 kW SINAMICS S120 Active Line Module.

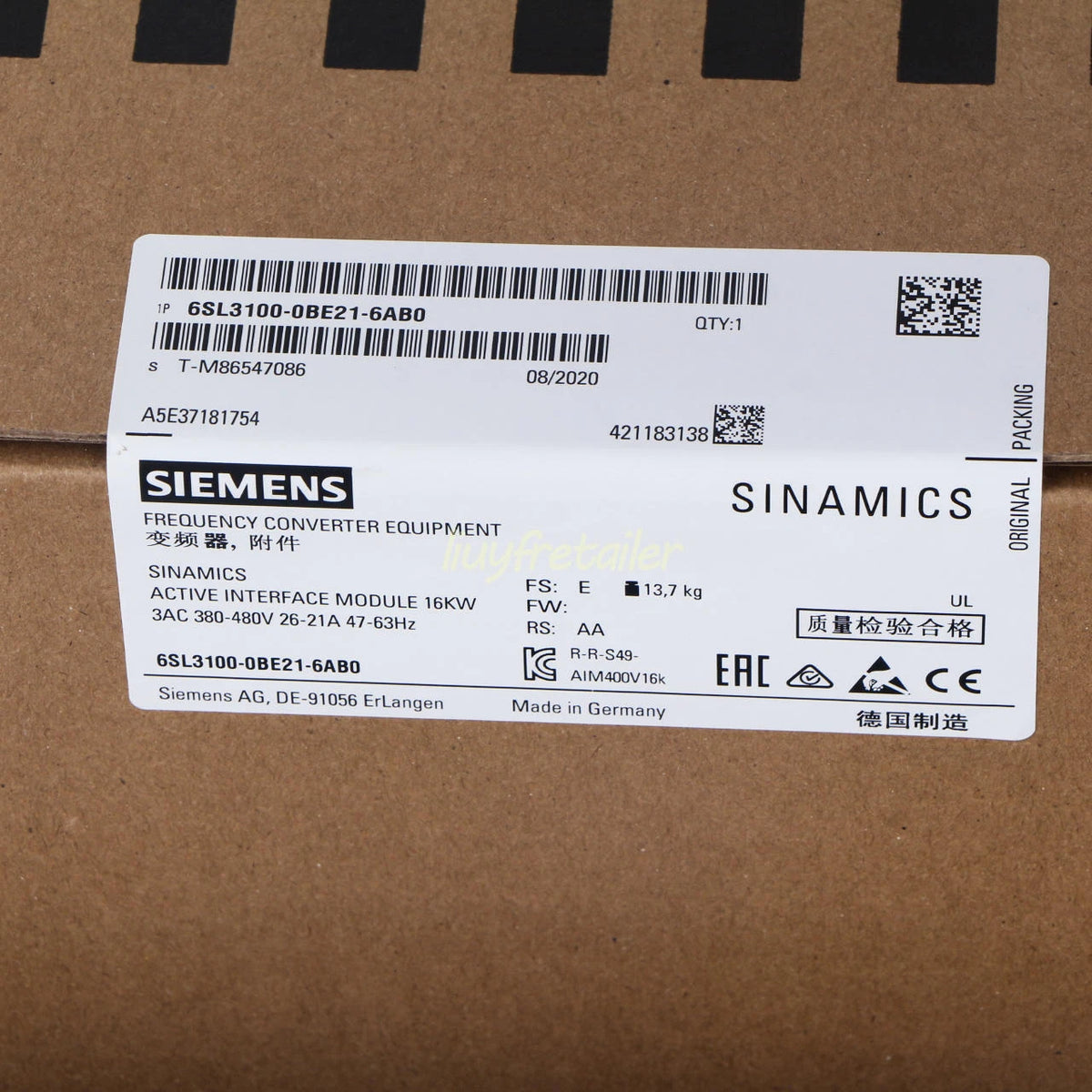

SIEMENS 6SL3100-0BE21-6AB0 S120 Active Interface Module 16kW 380-480VAC
Available in stock (400)
Regular price
$676.95
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3100-0BE21-6AB0 |
| Product Category | Active Interface Module |
| Product Family | SINAMICS S120 |
| Construction | Booksize |
| Suitable Active Line Module Power | 16 kW |
| Number of Phases | 3 AC |
| Line Voltage | 380-480 VAC |
| Line Frequency | 50/60 Hz |
| Rated Current | 26 A |
| 24 VDC Current Requirement | 0.25 A Max. |
| Power Loss | 0.27 kW |
| Cooling | Internal Air Cooling |
| Cooling Air Requirement | 0.030 m³/s |
| Sound Pressure Level | 57 dB |
| Degree of Protection | IP20 / UL Open Type |
| Line-Side Connection | Connector |
| Line Conductor Cross-Section | 16 mm² / AWG 6 |
| Dimensions | 100 x 380 x 270 mm (W x H x D) |
| Net Weight | 11.6 kg |
Key Features
380-480 VAC Line Input
The module is designed for three-phase AC line voltages from 380 to 480 VAC at 50 or 60 Hz.
26 A Rated Current
The documented rated current of the Active Interface Module is 26 A.
Booksize Construction
The module uses the SINAMICS S120 booksize construction format for integration into applicable drive system configurations.
Internal Air Cooling
The module uses internal air cooling with a documented cooling air requirement of 0.030 m³/s.
IP20 Protection
The Active Interface Module is specified with IP20 protection and UL open-type construction for appropriate cabinet installations.
Applications
- SINAMICS S120 drive systems
- 16 kW Active Line Module configurations
- Industrial motion control systems
- Multi-axis drive systems
- Machine automation equipment
- Industrial drive control cabinets
- Production machinery
- Regenerative drive applications
Purchase Information
We support online purchase of the SIEMENS 6SL3100-0BE21-6AB0 Active Interface Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SL3100-0BE21-6AB0?
It is a SINAMICS S120 Active Interface Module in booksize format for a suitable 16 kW Active Line Module.
What is the line voltage of 6SL3100-0BE21-6AB0?
The documented three-phase line voltage range is 380 to 480 VAC.
What line frequency does the module support?
The module is specified for 50/60 Hz line frequency.
What is the rated current?
The documented rated current is 26 A.
Which Active Line Module power rating is it intended for?
6SL3100-0BE21-6AB0 is specified for a 16 kW SINAMICS S120 Active Line Module in booksize format.
What cooling method does the module use?
It uses internal air cooling with a documented cooling air requirement of 0.030 m³/s.
What is the protection rating?
The module is specified as IP20 / UL open type.
What are the dimensions of 6SL3100-0BE21-6AB0?
The documented dimensions are 100 mm wide, 380 mm high and 270 mm deep.
What is the net weight?
The documented net weight is approximately 11.6 kg.
What is the maximum 24 VDC current requirement?
The documented maximum current requirement from the 24 VDC electronics power supply is 0.25 A.
Can 6SL3100-0BE21-6AB0 be considered for an existing SINAMICS S120 system?
It can be considered after the exact article number, Active Line Module rating, line voltage, current, booksize configuration, cooling and system requirements have been checked.
What should be checked before ordering?
Check the complete 6SL3100-0BE21-6AB0 article number together with the 16 kW Active Line Module requirement, 380-480 VAC line supply, 26 A rating, booksize construction, connection arrangement and cabinet configuration before ordering.
