CUVC Vector Control
The 6SE7090-0XX84-0AB0 is a CUVC control module for closed-loop and open-loop vector control in SIMOVERT MASTERDRIVES systems.

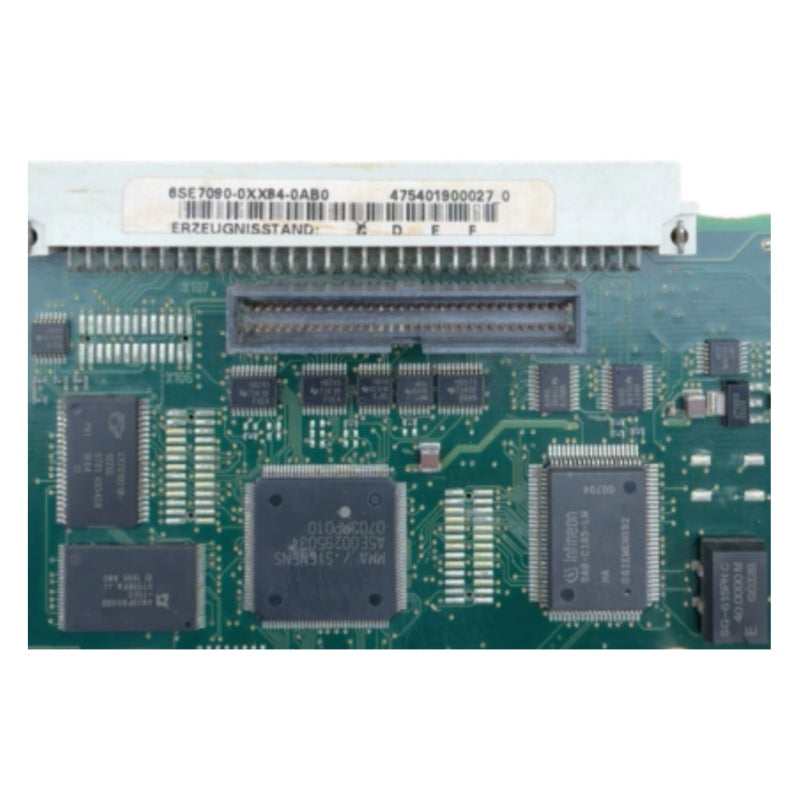

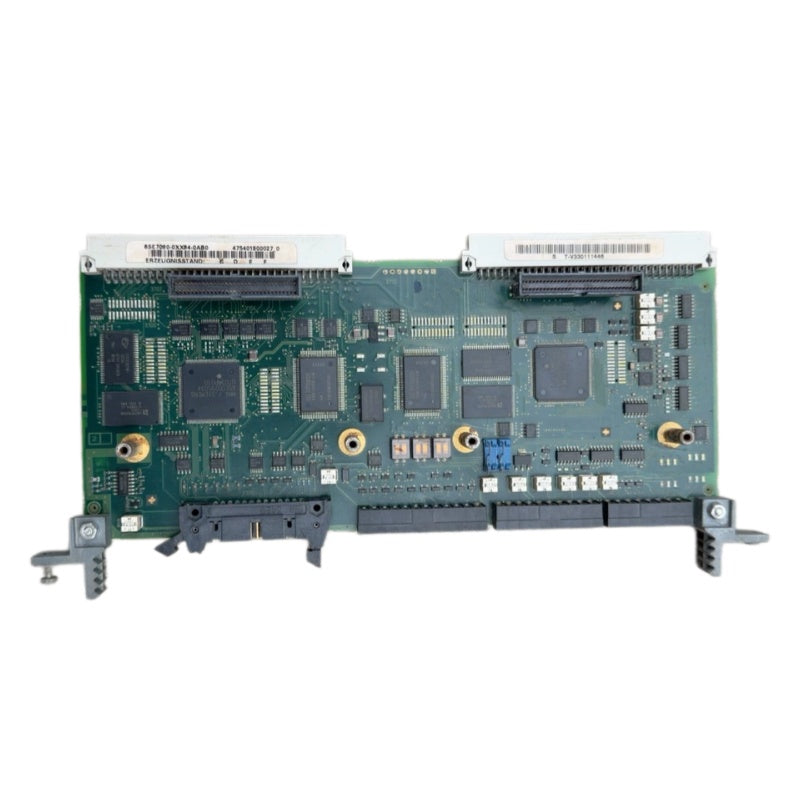

SIEMENS 6SE7090-0XX84-0AB0 CUVC Control Module Vector Control V3.4
Available in stock (400)
Regular price
$137.76
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SE7090-0XX84-0AB0 |
| Product Category | Control Module |
| Product Line | SIMOVERT MASTERDRIVES |
| Module Type | CUVC Control Module |
| Control Function | Closed-Loop and Open-Loop Vector Control |
| Firmware Version | V3.4 |
| Serial Interface | RS232 / RS485 |
| USS Interface | RS485 |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Configurable Digital I/O | 4 |
| Digital Inputs | 3 |
| Analog Input Ranges | -10 V to +10 V; 0 V to +10 V; 0-20 mA; 4-20 mA; -20 mA to +20 mA |
| Motor Temperature Sensor | KTY84 / PTC Thermistor |
Key Features
Firmware V3.4
The documented product configuration specifies firmware version V3.4.
RS232 and RS485
The CUVC control board provides serial communication functions including RS232 and RS485 interfaces.
Analog Signal Processing
The control board provides two analog inputs and two analog outputs for supported drive control and monitoring functions.
Configurable Analog Inputs
The analog inputs can be parameterized for documented voltage and current ranges including 0-10 V and 4-20 mA.
Motor Temperature Monitoring
The CUVC control board provides connections for supported KTY84 motor temperature sensors or PTC thermistors.
Applications
- SIMOVERT MASTERDRIVES converters
- SIMOVERT MASTERDRIVES inverters
- Closed-loop vector control
- Open-loop vector control
- Industrial motor control systems
- Drive speed and torque control
- Analog drive signal processing
- Industrial drive system control
Purchase Information
We support online purchase of the SIEMENS 6SE7090-0XX84-0AB0 Control Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SE7090-0XX84-0AB0?
SIEMENS 6SE7090-0XX84-0AB0 is a CUVC control module for SIMOVERT MASTERDRIVES vector control systems.
What control functions does 6SE7090-0XX84-0AB0 provide?
The module is documented for closed-loop and open-loop vector control.
What firmware version is specified for 6SE7090-0XX84-0AB0?
The documented product configuration specifies firmware version V3.4.
Which drive product line uses this CUVC control module?
The module is documented for SIMOVERT MASTERDRIVES converters and inverters.
What serial interfaces are provided?
The CUVC control board documentation identifies RS232 and RS485 serial communication functions, including an RS485 USS interface.
How many analog inputs and outputs are provided?
The control board provides two analog inputs and two analog outputs.
What analog input ranges can be configured?
Documented parameterizable ranges include -10 V to +10 V, 0 V to +10 V, 0-20 mA, 4-20 mA and -20 mA to +20 mA.
Does the CUVC module provide digital I/O?
Yes. The documented control terminals include four configurable digital inputs/outputs and three digital inputs.
Does 6SE7090-0XX84-0AB0 support motor temperature monitoring?
The CUVC control board provides connections for KTY84 motor temperature sensors or PTC thermistors.
What applications can 6SE7090-0XX84-0AB0 be considered for?
It can be considered for supported SIMOVERT MASTERDRIVES vector control, motor control and drive signal processing applications after system requirements have been checked.
Can 6SE7090-0XX84-0AB0 be considered for an existing drive system?
It can be considered after the complete article number, firmware version, control configuration, interfaces and system requirements have been checked against the existing drive system.
What should be checked before ordering 6SE7090-0XX84-0AB0?
Check the complete article number, CUVC control requirement, firmware version V3.4, drive configuration, interfaces and electrical requirements before ordering.
