PROFIBUS DP Communication
The 6SE6400-1PB00-0AA0 provides PROFIBUS DP communication functionality for the MICROMASTER 4 drive platform.

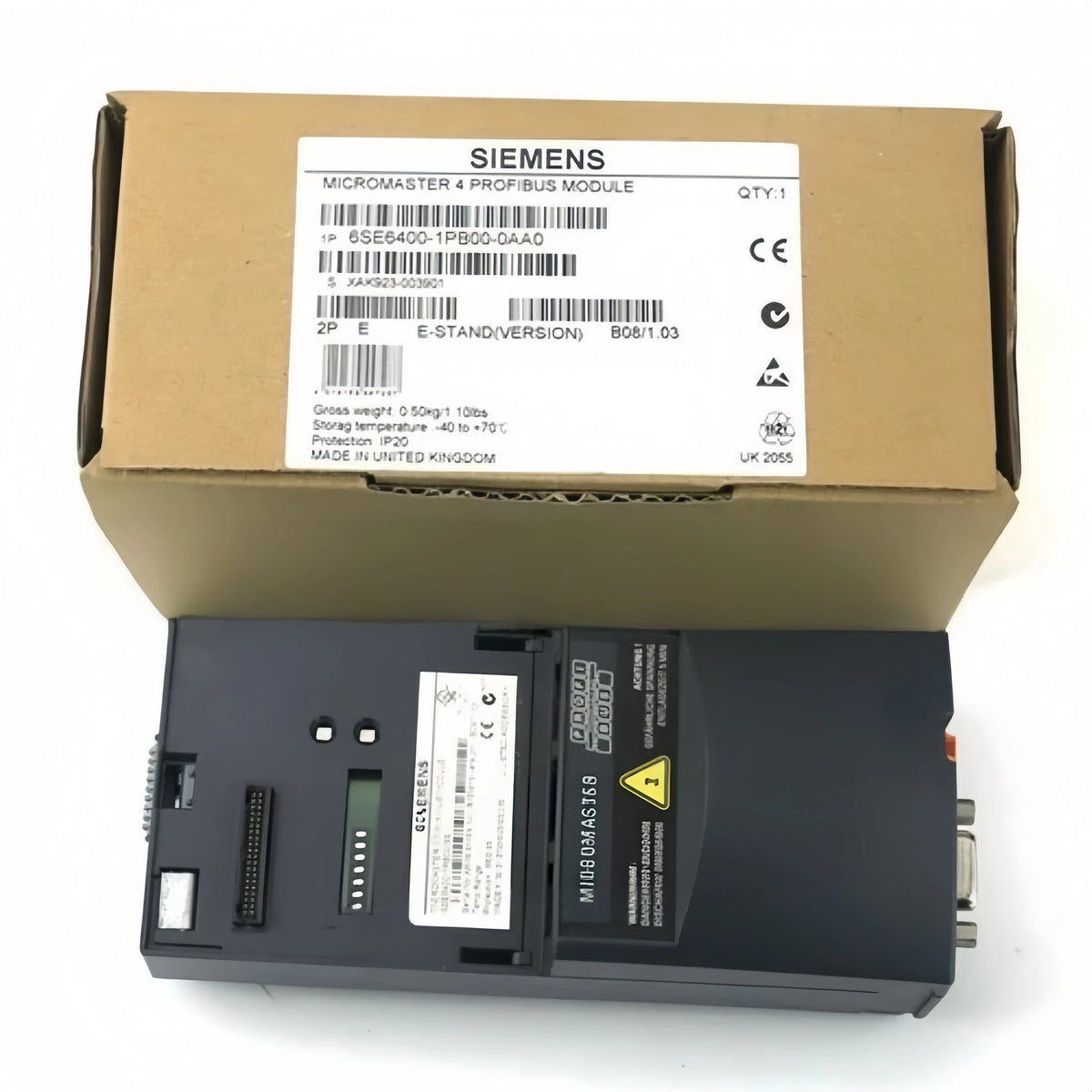

SIEMENS 6SE6400-1PB00-0AA0 PROFIBUS Communication Module 12Mbaud
Available in stock (400)
Regular price
$72.64
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SE6400-1PB00-0AA0 |
| Product Category | Communication Module |
| Module Type | PROFIBUS Module |
| Drive Family | MICROMASTER 4 |
| Communication Protocol | PROFIBUS DP |
| Maximum Data Transmission Rate | 12 Mbaud |
| Interface | RS-485 |
| Connector | 9-Pin Sub-D |
| Internal Supply Voltage | 6.5 VDC ±5% |
| Internal Supply Current | Max. 300 mA |
| External Supply Voltage | 24 VDC ±10% |
| External Supply Current | Max. 350 mA |
| Degree of Protection | IP20 |
| Cooling Method | Natural Air Cooling |
Key Features
Up to 12 Mbaud
The documented maximum PROFIBUS data transmission rate is 12 Mbaud.
RS-485 Interface
The module uses an RS-485 PROFIBUS interface with a 9-pin Sub-D connection.
Internal Power Supply
The module can receive a documented 6.5 VDC ±5% internal supply from the inverter with a maximum current of 300 mA.
External 24 VDC Supply
An external 24 VDC ±10% supply with a maximum current of 350 mA is also documented for the module.
IP20 Protection
The documented degree of protection for the communication module is IP20.
Applications
- PROFIBUS drive communication
- Industrial drive network integration
- PLC-to-drive communication
- Industrial automation networks
- Variable frequency drive communication
- Factory automation systems
- Drive parameter communication
- Industrial control networks
Purchase Information
We support online purchase of the SIEMENS 6SE6400-1PB00-0AA0 Communication Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SE6400-1PB00-0AA0?
SIEMENS 6SE6400-1PB00-0AA0 is a PROFIBUS communication module for the MICROMASTER 4 drive platform.
What communication protocol does 6SE6400-1PB00-0AA0 use?
The module supports PROFIBUS DP communication.
What is the maximum data transmission rate?
The documented maximum PROFIBUS transmission rate is 12 Mbaud.
What communication interface does the module use?
The module uses an RS-485 PROFIBUS interface with a 9-pin Sub-D connector.
What internal supply does 6SE6400-1PB00-0AA0 use?
The documented internal supply is 6.5 VDC ±5% with a maximum current of 300 mA, supplied from the inverter.
Can the module use an external power supply?
Yes. A documented external supply of 24 VDC ±10% with a maximum current of 350 mA can be used.
What degree of protection does 6SE6400-1PB00-0AA0 have?
The documented degree of protection is IP20.
How is the communication module cooled?
The documented cooling method is natural air cooling.
What applications can 6SE6400-1PB00-0AA0 be considered for?
It can be considered for PROFIBUS communication between supported industrial drive equipment and higher-level automation control systems after network requirements have been checked.
What should be checked before ordering 6SE6400-1PB00-0AA0?
Check the complete model number, drive configuration, PROFIBUS network requirements, connector requirements and power supply requirements against the existing system documentation.
Is there a special connector requirement for MM4 FX/GX configurations?
Siemens specifies connector 6GK1500-0EA02 for mechanical reasons when the module is used with MM4 FX/GX configurations.
