CPU 317-2 DP
Model 6ES7317-2AJ10-0AB0 is a SIMATIC S7-300 CPU 317-2 DP central processing unit for industrial automation control systems.

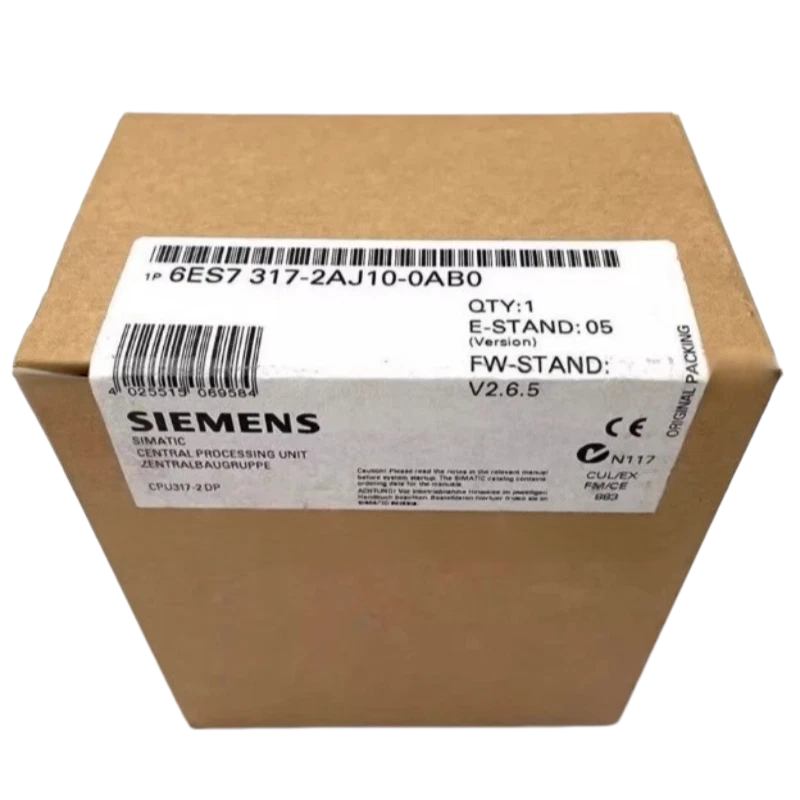

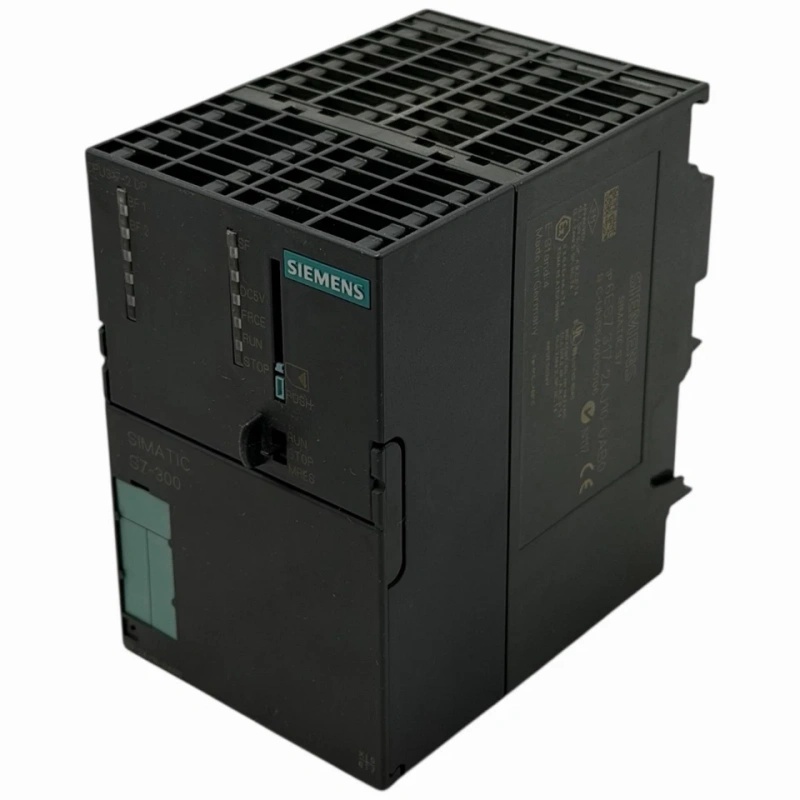

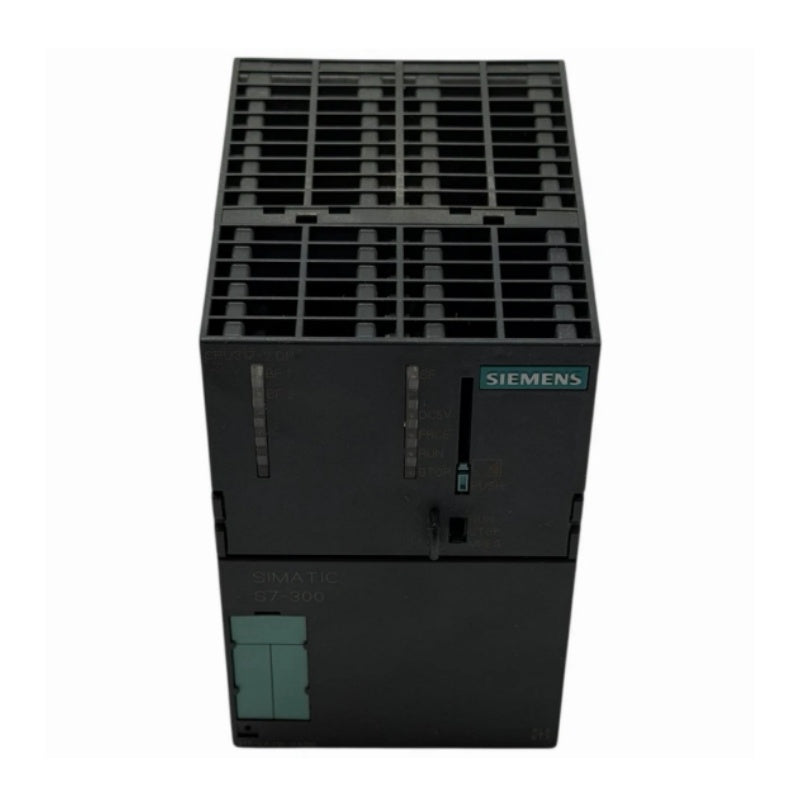

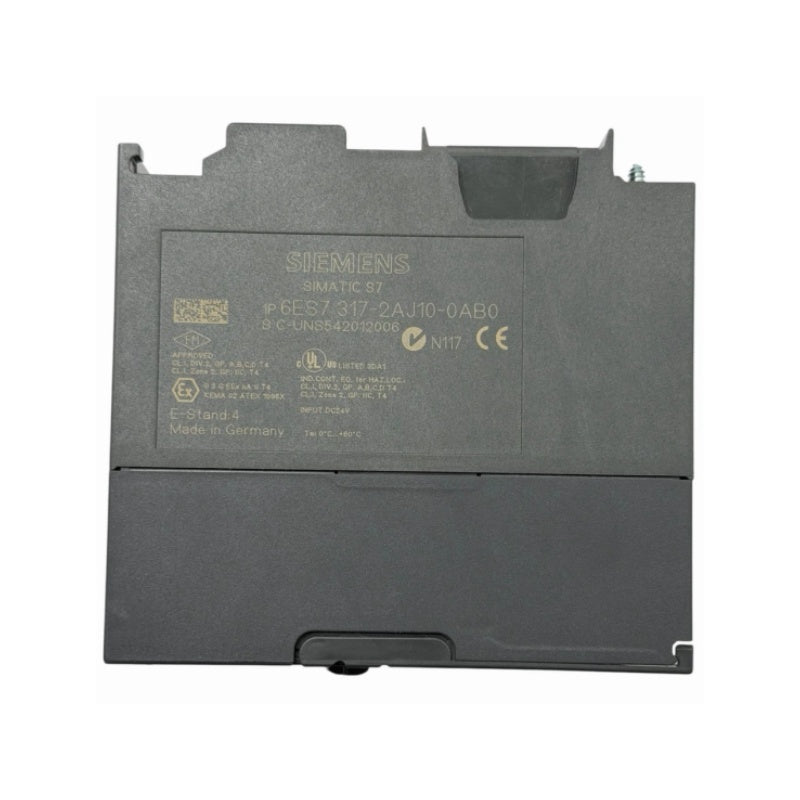

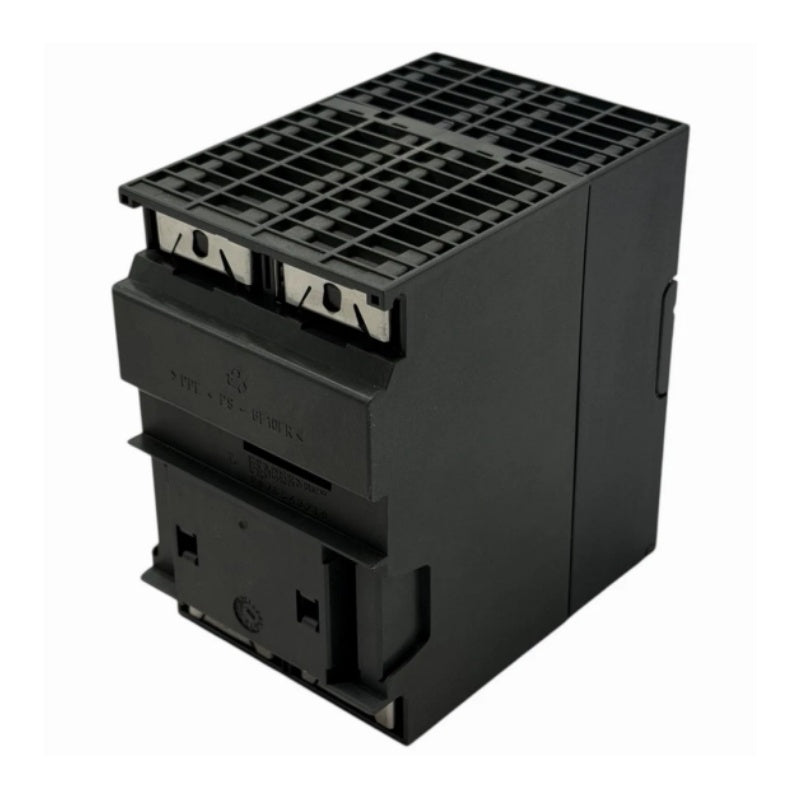

SIEMENS 6ES7317-2AJ10-0AB0 PLC CPU 317-2 DP 512KB 24VDC
Available in stock (400)
Regular price
$217.59
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7317-2AJ10-0AB0 |
| Product Category | Programmable Logic Controller |
| Product Platform | SIMATIC S7-300 |
| CPU Type | CPU 317-2 DP |
| Work Memory | 512 KB |
| Rated Supply Voltage | 24 VDC |
| Permissible Supply Voltage | 20.4-28.8 VDC |
| Rated Current Consumption | 850 mA |
| Firmware Version | V2.6 |
| First Interface | MPI/DP, up to 12 Mbit/s |
| Second Interface | PROFIBUS DP Master/Slave |
| Load Memory | Plug-In Micro Memory Card |
| Maximum MMC Capacity | 8 MB |
| Programming Package | STEP 7 V5.2 + SP1 or Higher with HW Update |
Key Features
512 KB Work Memory
The CPU provides 512 KB of integrated work memory for program execution and data processing.
24 VDC Supply
The documented rated supply voltage is 24 VDC with a permissible operating range of 20.4-28.8 VDC.
MPI/DP Interface
The first integrated interface supports MPI/DP communication with a transmission rate of up to 12 Mbit/s.
DP Master/Slave Interface
A second integrated PROFIBUS DP interface supports operation as a DP master or DP slave.
Micro Memory Card
A plug-in Micro Memory Card is required for load memory, with a documented maximum capacity of 8 MB.
Applications
- Industrial machine control
- Factory automation systems
- Production line automation
- PROFIBUS DP control networks
- Distributed I/O control
- Process sequence control
- Industrial equipment automation
- PLC-based control systems
Purchase Information
We support online purchase of the SIEMENS 6ES7317-2AJ10-0AB0 Programmable Logic Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ES7317-2AJ10-0AB0?
SIEMENS 6ES7317-2AJ10-0AB0 is a SIMATIC S7-300 CPU 317-2 DP central processing unit with 512 KB of work memory.
How much work memory does 6ES7317-2AJ10-0AB0 provide?
The CPU provides 512 KB of integrated work memory.
What supply voltage does 6ES7317-2AJ10-0AB0 use?
The rated supply voltage is 24 VDC, with a documented permissible range of 20.4-28.8 VDC.
What is the rated current consumption?
The documented rated current consumption is 850 mA.
What is the first communication interface?
The first integrated interface is MPI/DP and supports transmission rates up to 12 Mbit/s.
What is the second communication interface?
The second interface is PROFIBUS DP and supports DP master or DP slave operation.
Does 6ES7317-2AJ10-0AB0 require a memory card?
Yes. A Micro Memory Card is required for load memory.
What is the maximum supported Micro Memory Card capacity?
The documented maximum plug-in MMC capacity is 8 MB.
What firmware version is specified for 6ES7317-2AJ10-0AB0?
The documented firmware version is V2.6.
Which programming package is specified?
The documented engineering requirement is STEP 7 V5.2 + SP1 or higher with the applicable hardware update.
What applications can 6ES7317-2AJ10-0AB0 be considered for?
It can be considered for industrial machine control, factory automation, distributed I/O systems and PROFIBUS DP networks after system requirements have been checked.
What should be checked before ordering 6ES7317-2AJ10-0AB0?
Check the complete model number, 24 VDC supply requirements, work memory, MPI/DP and PROFIBUS DP requirements, Micro Memory Card requirements and engineering configuration against the existing system documentation.
