CPU 1214C DC/DC/Relay
Model 6ES7214-1HG40-0XB0 is a SIMATIC S7-1200 compact CPU with DC supply, DC digital inputs and relay digital outputs.
1 / 12
SIEMENS

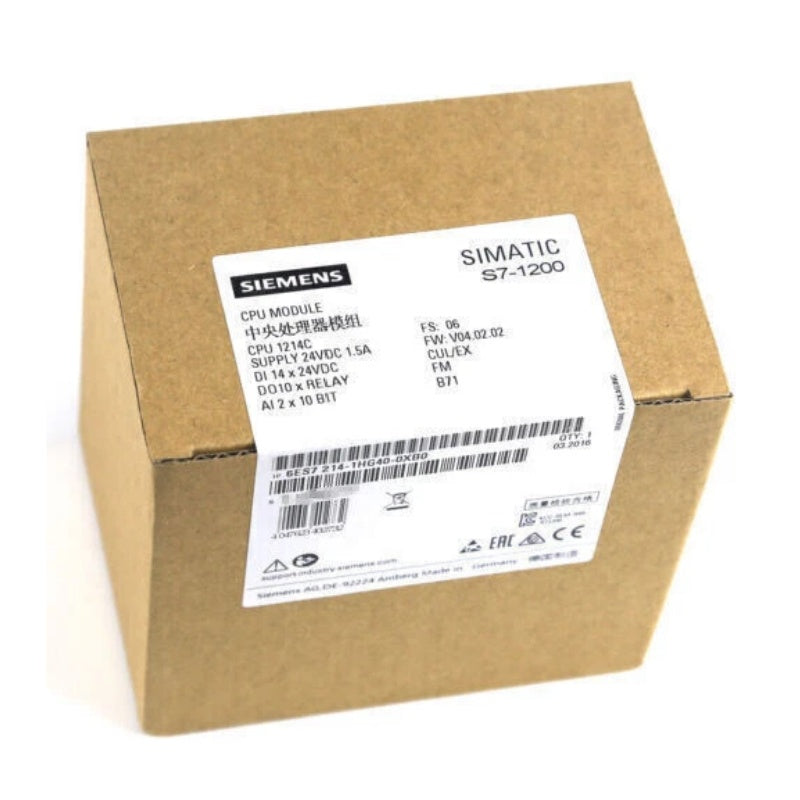

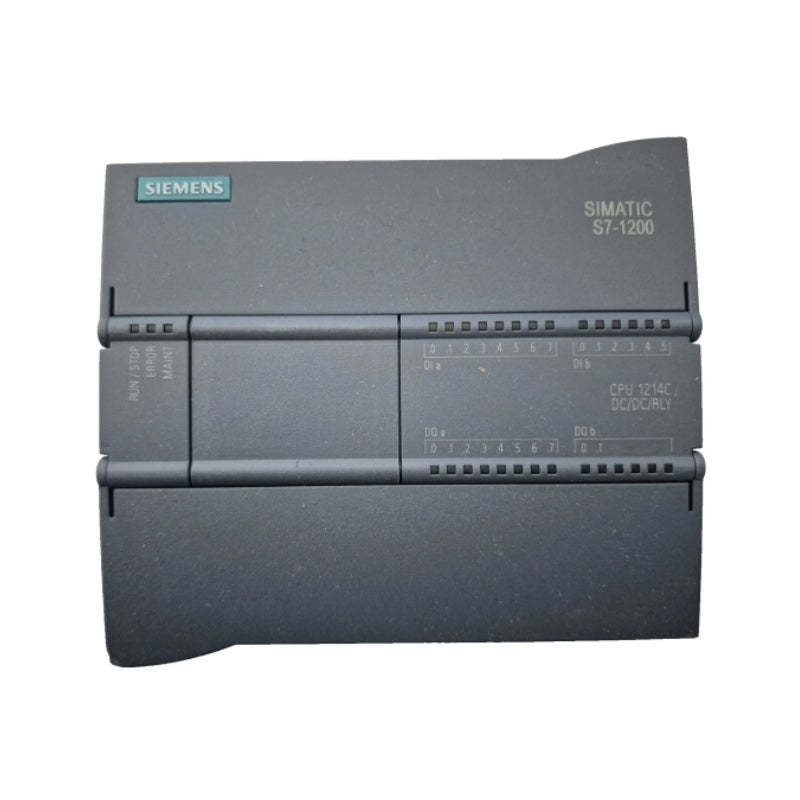

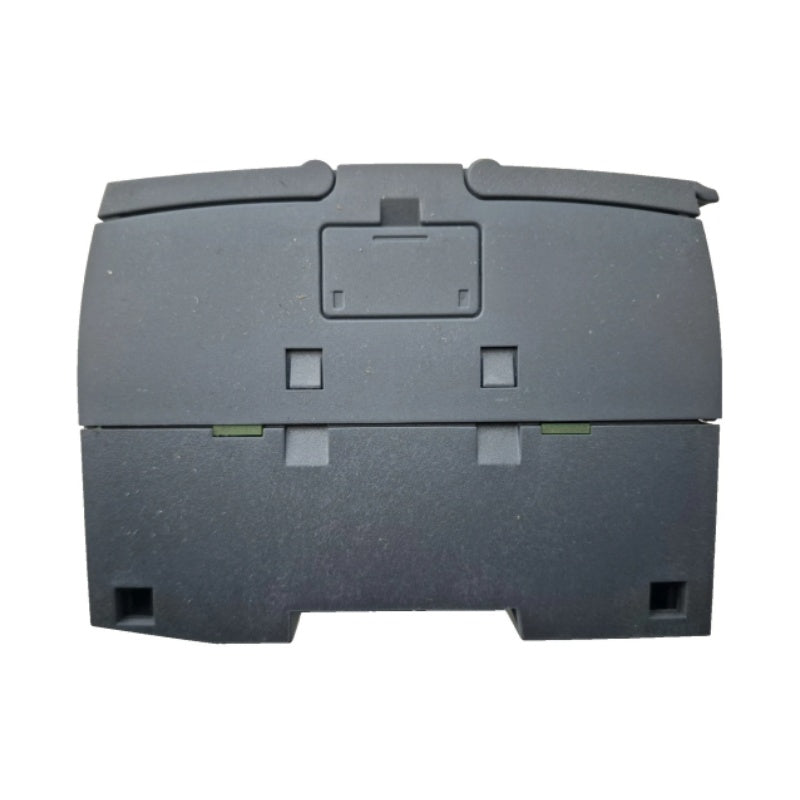

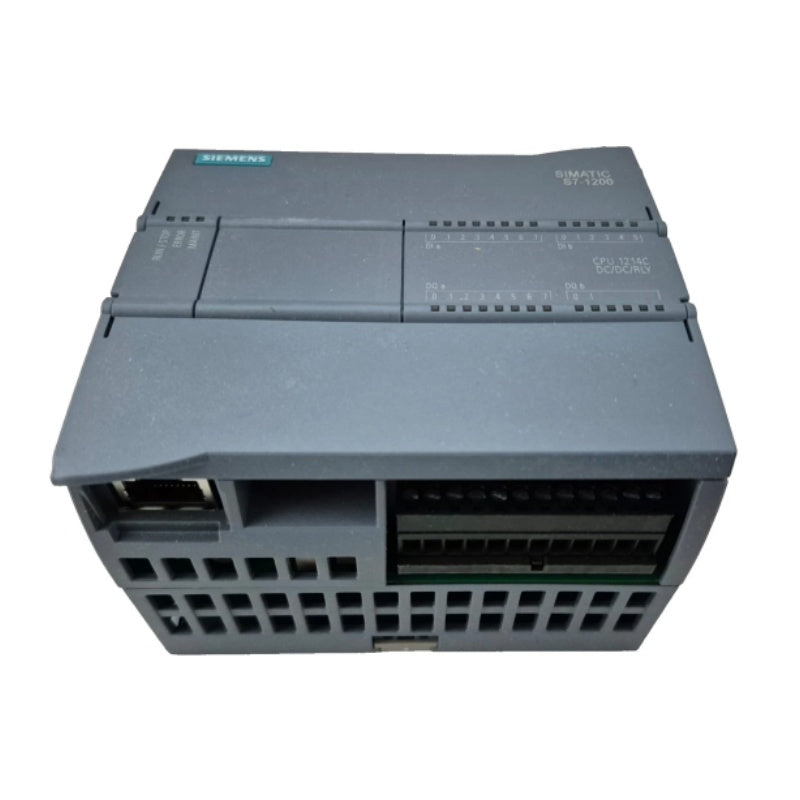

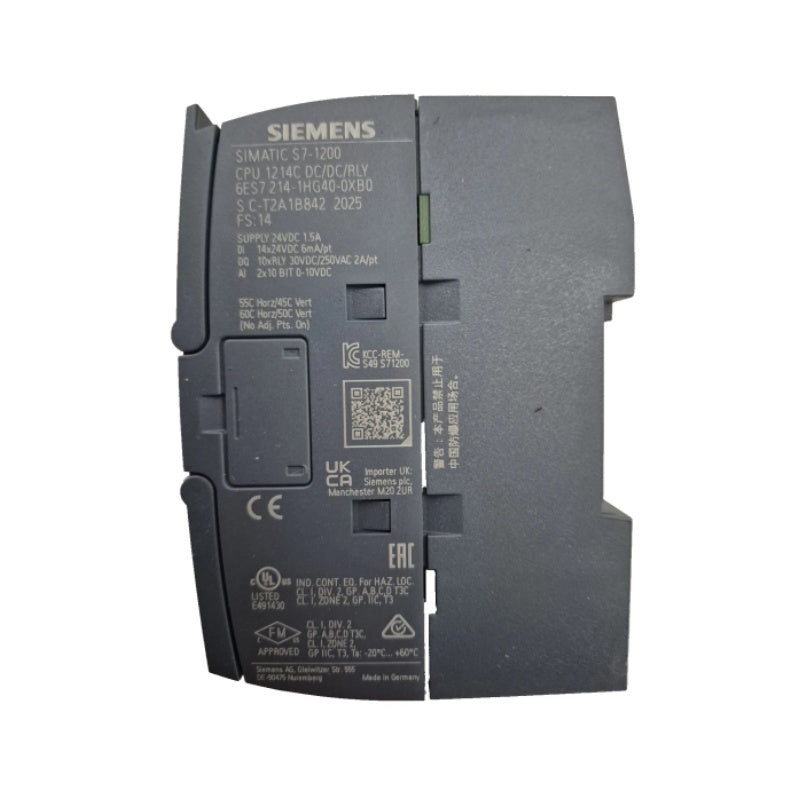

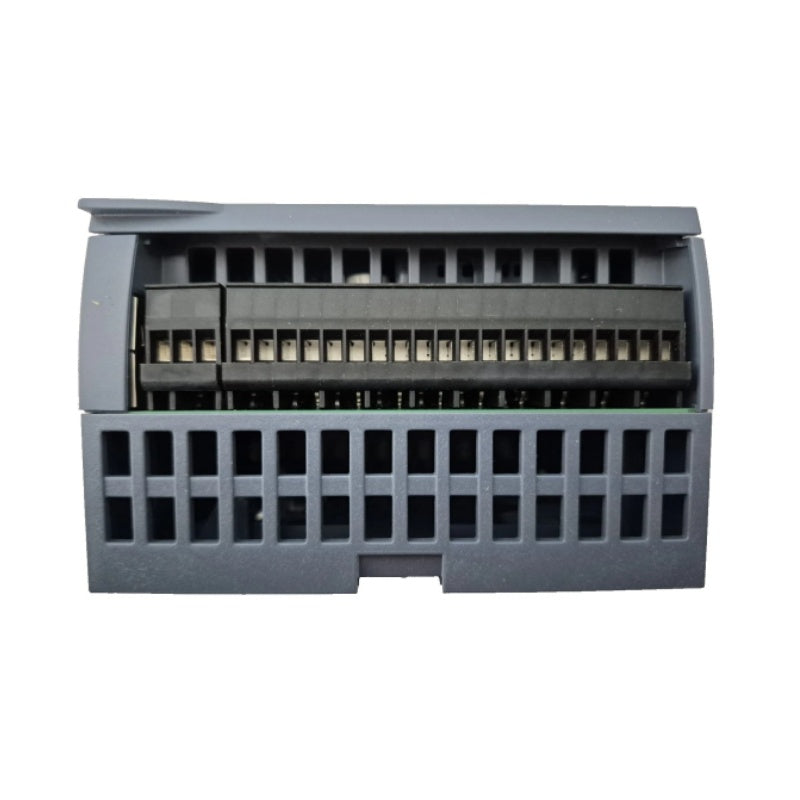

SIEMENS 6ES7214-1HG40-0XB0 PLC CPU 1214C DC/DC/Relay 150KB
PRODUCT PRICE
USD
$257.98
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7214-1HG40-0XB0 |
| Product Category | Programmable Logic Controller |
| Product Family | SIMATIC S7-1200 |
| CPU Type | CPU 1214C DC/DC/Relay |
| CPU Design | Compact CPU |
| Supply Voltage | 20.4-28.8 VDC |
| Digital Inputs | 14 x 24 VDC |
| Digital Outputs | 10 x Relay |
| Analog Inputs | 2 x 0-10 VDC |
| Work Memory | 150 KB |
| Integrated Load Memory | 4 MB |
| Firmware Version | V4.7 |
| Programming Package | STEP 7 V20 or Higher |
Key Features
14 Digital Inputs
The compact CPU provides 14 onboard digital inputs for 24 VDC signals.
10 Relay Outputs
The controller includes 10 onboard relay digital outputs for configured automation control functions.
2 Analog Inputs
Two onboard analog inputs support documented 0-10 VDC input signals.
150 KB Work Memory
The CPU provides 150 KB of integrated work memory together with 4 MB of integrated load memory.
20.4-28.8 VDC Supply
The documented permissible DC supply voltage range is 20.4-28.8 VDC.
Applications
- Industrial machine control
- Factory automation systems
- Production line control
- Digital input signal processing
- Relay output control
- 0-10 V analog signal acquisition
- Equipment sequence control
- OEM automation systems
Purchase Information
We support online purchase of the SIEMENS 6ES7214-1HG40-0XB0 Programmable Logic Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ES7214-1HG40-0XB0?
SIEMENS 6ES7214-1HG40-0XB0 is a SIMATIC S7-1200 CPU 1214C compact programmable logic controller with a DC/DC/Relay configuration.
How many digital inputs does 6ES7214-1HG40-0XB0 provide?
The CPU provides 14 onboard digital inputs for 24 VDC signals.
How many digital outputs are integrated?
The controller provides 10 onboard relay digital outputs.
Does 6ES7214-1HG40-0XB0 include analog inputs?
Yes. It provides two onboard analog inputs with a documented 0-10 VDC input range.
What supply voltage does 6ES7214-1HG40-0XB0 use?
The documented permissible DC supply voltage range is 20.4-28.8 VDC.
How much work memory does the CPU provide?
The documented integrated work memory is 150 KB.
How much integrated load memory is provided?
The CPU provides 4 MB of integrated load memory.
What firmware version is specified?
The documented firmware version is V4.7.
Which programming package is specified?
The documented engineering requirement is STEP 7 V20 or higher.
What applications can 6ES7214-1HG40-0XB0 be considered for?
It can be considered for industrial machine control, production automation, digital I/O processing, relay output control and 0-10 V analog signal acquisition after system requirements have been checked.
What should be checked before ordering 6ES7214-1HG40-0XB0?
Check the complete model number, DC supply requirements, digital input requirements, relay output requirements, analog input requirements, memory requirements and engineering configuration against the existing system documentation.
Need help confirming a model?
Send us your part number and technical requirements.
