PROFINET Communication Interface
Establishes PROFINET IO communication between ET 200SP distributed I/O system and upper-level industrial controllers.

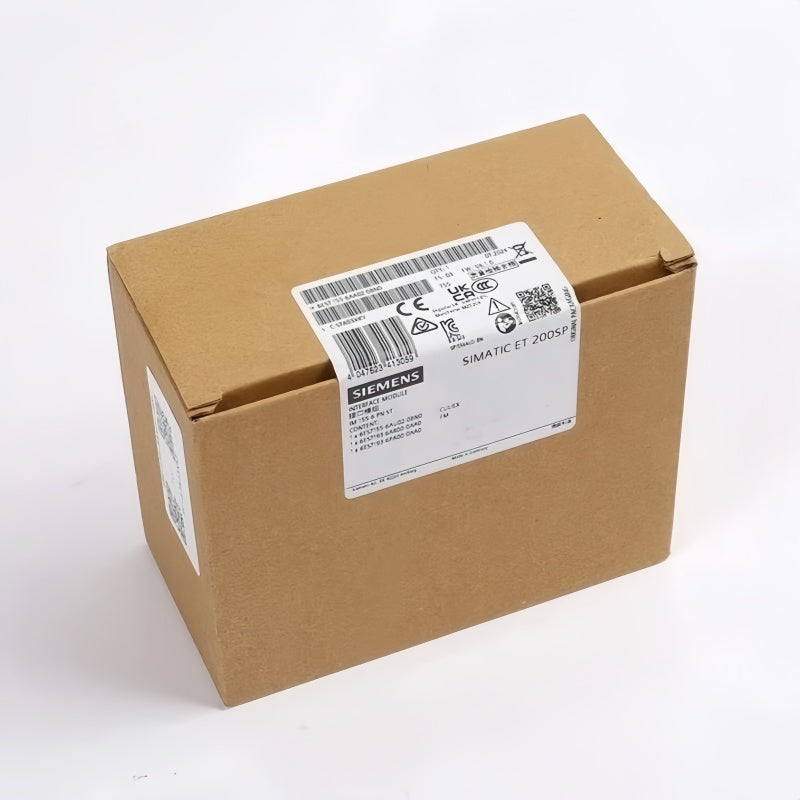

SIEMENS 6ES7155-6AA02-0BN0 Interface Module PROFINET 24 VDC
Available in stock (200)
Regular price
$250.27
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7155-6AA02-0BN0 |
| Product Category | Interface Module |
| Product Family | SIMATIC ET 200SP |
| Module Designation | IM 155-6 PN ST Bundle |
| Communication Protocol | PROFINET IO |
| Supply Voltage | 24 VDC (19.2–28.8 VDC) |
| Max Supported I/O Modules | 32 ET 200SP I/O Modules |
| Max Supported ET 200AL Modules | 16 Units |
| Data Transfer Rate | 100 Mbps Full Duplex |
| Interface Type | Ethernet RJ45 (BA 2x RJ45 BusAdapter Included) |
| Typical Power Loss | 1.8 W |
| Operating Temperature Horizontal | -30°C to +60°C |
| Operating Temperature Vertical | -30°C to +50°C |
Key Features
Supports 32 I/O Modules
Allows installation of up to 32 standard ET 200SP peripheral I/O modules on the backplane bus.
Multi Hot Swap Function
Enables replacement of individual I/O modules without full station shutdown during operation.
24 VDC Power Supply
Operates on standard industrial 24 VDC power with 19.2 VDC to 28.8 VDC permissible voltage range.
Integrated Bus Adapter Bundle
Complete bundle includes IM 155-6 PN ST module, server module and BA 2x RJ45 BusAdapter for direct wiring.
Wide Operating Temperature Range
Compatible with horizontal and vertical cabinet mounting with broad ambient temperature tolerance.
Applications
- Distributed ET 200SP I/O station construction
- PROFINET industrial automation control systems
- Manufacturing production line signal collection
- Process automation remote I/O expansion
- Machine tool distributed signal acquisition
- Logistics conveyor control cabinet systems
- Industrial cabinet modular I/O expansion
- TIA Portal configured PLC peripheral systems
Purchase Information
We support online purchase of the SIEMENS 6ES7155-6AA02-0BN0 Interface Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ES7155-6AA02-0BN0?
SIEMENS 6ES7155-6AA02-0BN0 is a bundled PROFINET interface module from the SIMATIC ET 200SP product family, designated IM 155-6 PN ST with included bus adapter and server module.
What communication protocol does 6ES7155-6AA02-0BN0 use?
The module operates on PROFINET IO protocol with 100 Mbps full duplex Ethernet transmission.
How many I/O modules can the 6ES7155-6AA02-0BN0 support?
The interface module supports a maximum of 32 ET 200SP I/O modules and up to 16 ET 200AL modules per station.
What power supply does the 6ES7155-6AA02-0BN0 require?
Rated 24 VDC supply with a permissible operating range of 19.2 VDC to 28.8 VDC.
Does the 6ES7155-6AA02-0BN0 support hot swapping?
Yes, the module features multi hot swap function to replace peripheral modules while the station remains powered.
What components are included in the 6ES7155-6AA02-0BN0 bundle?
The bundle contains IM 155-6AU02-0BN0 interface module, server module and BA 2x RJ45 BusAdapter for dual RJ45 Ethernet ports.
What is the operating temperature range for this module?
Horizontal mounting: -30°C to +60°C; vertical mounting: -30°C to +50°C with no condensation permitted.
Which engineering software configures the 6ES7155-6AA02-0BN0?
The module can be configured via TIA Portal starting from V20 and STEP 7 V5.7 SP3.
What industrial systems can utilize this interface module?
It can be considered for distributed I/O stations connected to PROFINET-capable SIMATIC PLC controllers after verifying backplane, wiring and cabinet layout requirements.
What should be checked before ordering 6ES7155-6AA02-0BN0?
Confirm full catalog number, ET 200SP station expansion quantity, PROFINET network layout, cabinet mounting orientation and 24 VDC field power specifications before purchase.
Is 6ES7155-6AA02-0BN0 the same as standalone IM 155-6AU02-0BN0?
No, the AA suffix catalog number is a pre-assembled bundle with bus adapter and server module, while AU suffix is the bare interface module without included accessories.
