800 kHz Counting
The TM Count 1x24V provides one counter with a maximum counting frequency of 800 kHz when using quadruple evaluation.

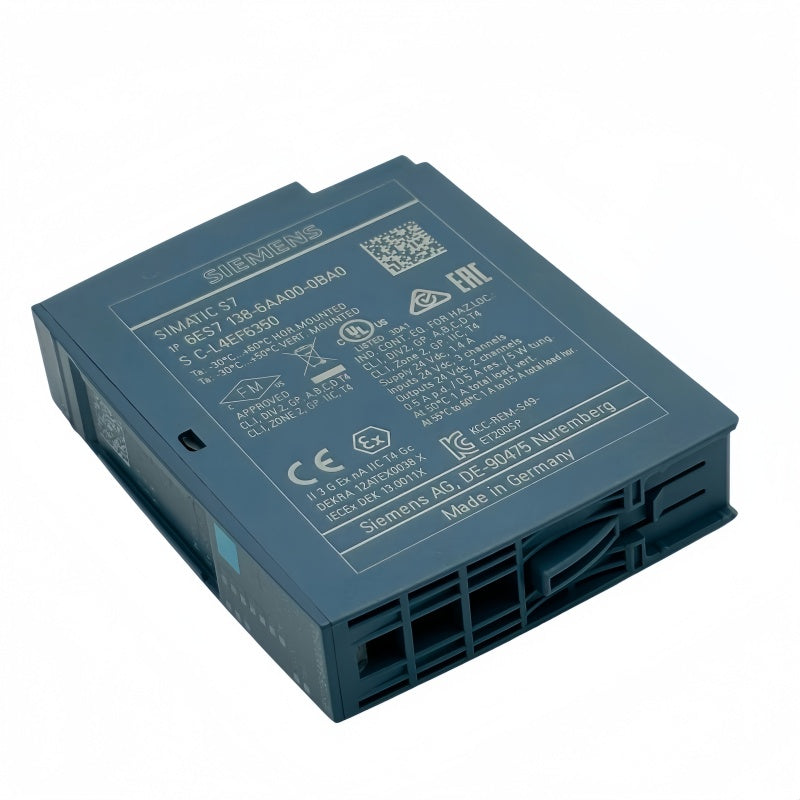

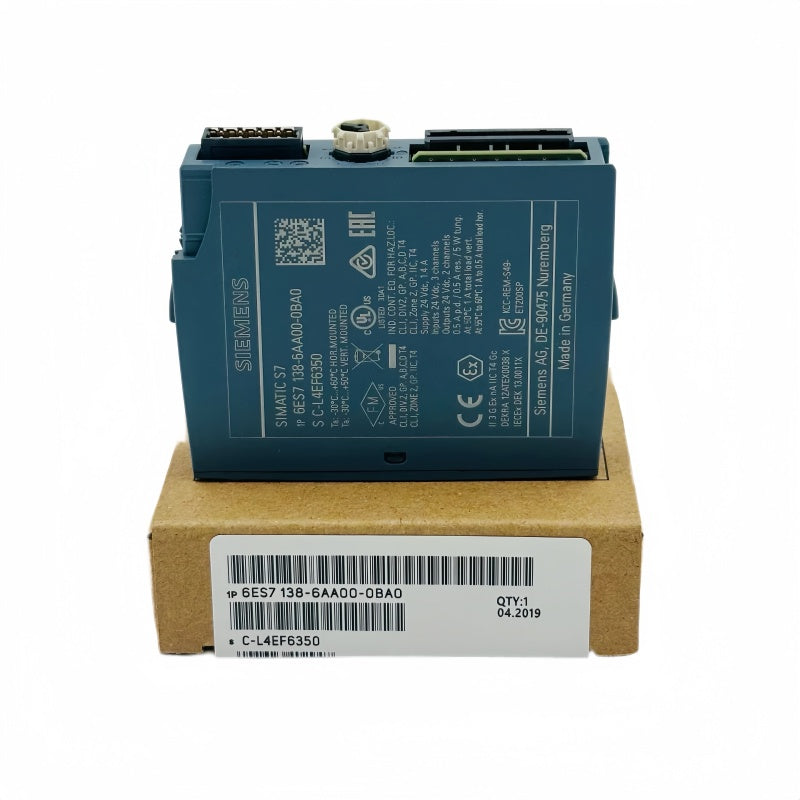

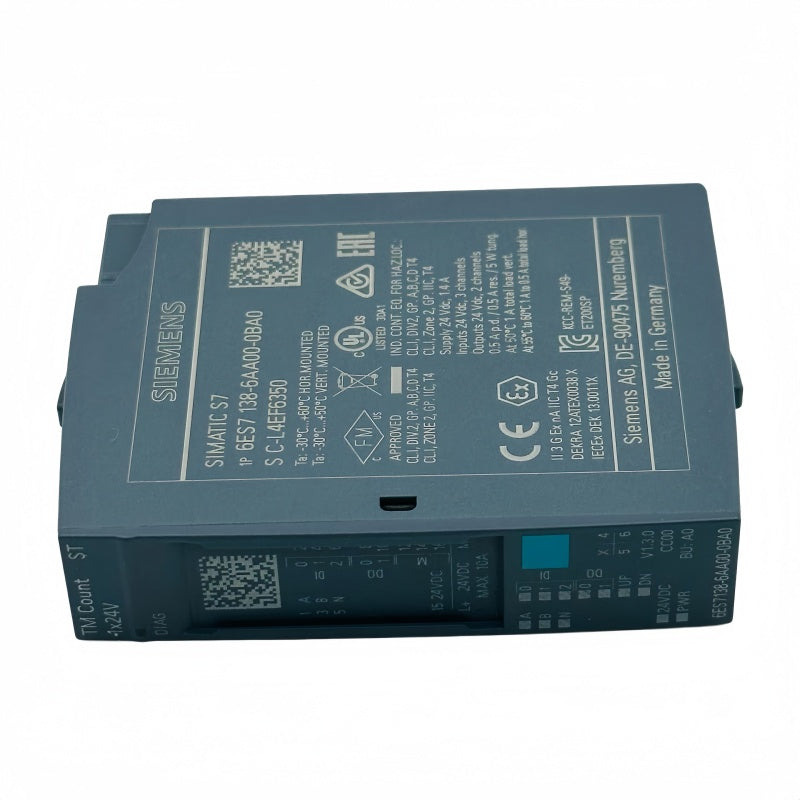

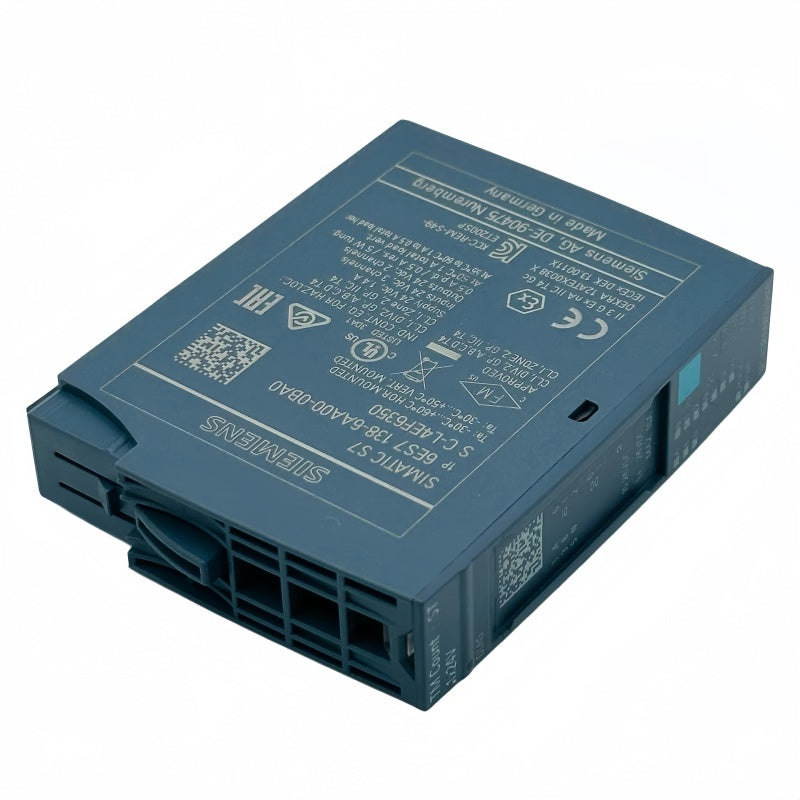

SIEMENS 6ES7138-6AA00-0BA0 TM Count 1x24V Counting Module 24VDC 800kHz
Available in stock (400)
Regular price
$124.98
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7138-6AA00-0BA0 |
| Product Category | Counting Module |
| Product Type Designation | TM Count 1x24V |
| System | SIMATIC ET 200SP |
| Rated Load Voltage | 24 VDC |
| Valid Voltage Range | 19.2-28.8 VDC |
| Number of Counters | 1 |
| Maximum Counting Frequency | 800 kHz with quadruple evaluation |
| Encoder Supply Outputs | 1 |
| Encoder Supply Output Current | 300 mA max. |
| Current Consumption | 60 mA max. without load |
| Power Loss | 1 W typ. |
| Required BaseUnit Type | A0 |
| Input Address Area | 16 bytes; 4 bytes with Fast Mode |
| Output Address Area | 12 bytes; 4 bytes with Motion Control; 0 bytes with Fast Mode |
Key Features
24 VDC Operation
The module has a rated load voltage of 24 VDC with a documented valid operating range from 19.2 to 28.8 VDC.
Counting and Measurement
The technology module supports counting, measurement and position detection functions within SIMATIC ET 200SP applications.
Encoder Connection
TM Count 1x24V supports encoder signal processing and provides a protected 24 V encoder supply output.
Configurable Counter Functions
Supported functions include continuous counting, hardware and software gates, synchronization and configurable counting ranges.
Diagnostic Functions
The module supports diagnostic and hardware interrupts together with monitoring for supply voltage, wire break and short-circuit conditions.
Applications
- High-speed pulse counting
- Incremental encoder signal acquisition
- Position detection systems
- Industrial measurement applications
- Machine automation systems
- Motion-related position input
- Production line counting
- SIMATIC ET 200SP distributed I/O systems
Purchase Information
We support online purchase of the SIEMENS 6ES7138-6AA00-0BA0 Counting Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ES7138-6AA00-0BA0?
It is a SIMATIC ET 200SP TM Count 1x24V technology module designed for counting, measurement and position detection functions.
What is the supply voltage of 6ES7138-6AA00-0BA0?
The rated load voltage is 24 VDC, with a documented valid range of 19.2 to 28.8 VDC.
What is the maximum counting frequency?
The module supports a maximum counting frequency of 800 kHz with quadruple evaluation.
How many counters does the module provide?
The 6ES7138-6AA00-0BA0 provides one counter.
Can 6ES7138-6AA00-0BA0 work with an incremental encoder?
Yes. The TM Count 1x24V is designed to process encoder signals for counting and position-related applications.
Does the module provide an encoder supply?
Yes. It provides a 24 V encoder supply with a maximum output current of 300 mA.
Which SIMATIC system is this module designed for?
The module belongs to the SIMATIC ET 200SP distributed I/O system.
Which BaseUnit type is required?
A BaseUnit of type A0 is required for operation of the technology module.
Does the module support diagnostic functions?
Yes. Documented functions include diagnostic interrupts, hardware interrupts and monitoring for supply voltage, wire break and short circuit.
Can 6ES7138-6AA00-0BA0 be considered for an existing ET 200SP installation?
It can be considered after the exact article number, BaseUnit, encoder type, signal levels, counting requirements, firmware and system configuration have been checked.
What should be checked before ordering?
Check the complete 6ES7138-6AA00-0BA0 article number together with the ET 200SP configuration, BaseUnit type, encoder requirements, counting frequency and engineering environment before ordering.
