16 Digital Output Channels
Provides sixteen digital transistor output channels for distributed automation signal switching tasks.

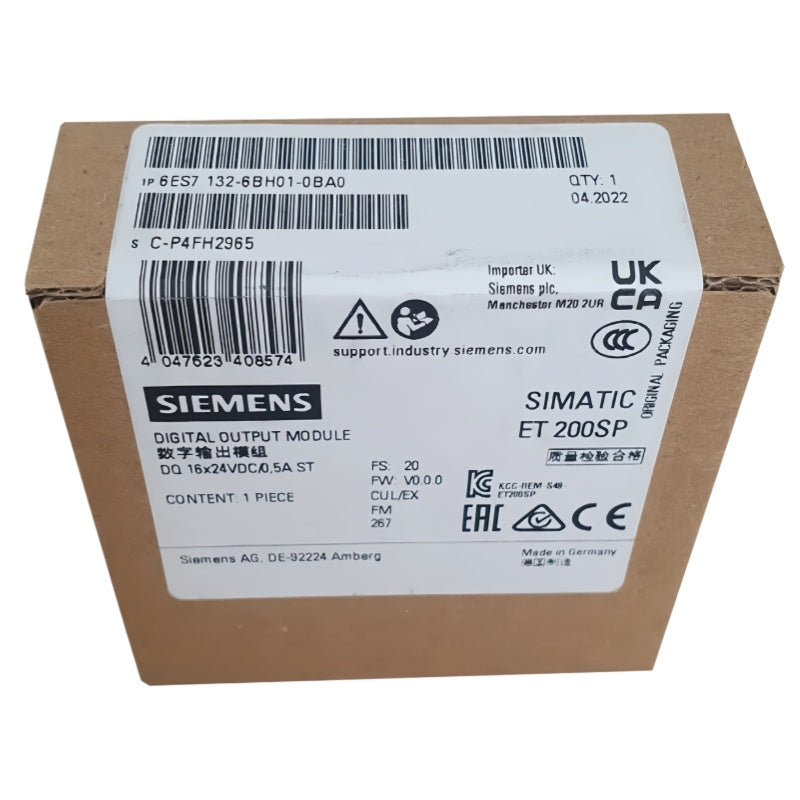

Siemens 6ES7132-6BH01-0BA0 Interface Module 16 Digital Outputs 24VDC 0.5A
Available in stock (200)
Regular price
$65.47
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Siemens |
| Model Number | 6ES7132-6BH01-0BA0 |
| Product Category | Interface Module |
| Product Family | SIMATIC ET 200SP |
| Module Type | Digital Output Module |
| Number of Digital Outputs | 16 |
| Output Type | Source PNP Transistor Output |
| Rated Output Voltage | 24 VDC |
| Per Channel Output Current | 0.5 A |
| Short-Circuit Protection | Yes |
| Open-Circuit Detection | Yes |
| Backplane Isolation | 707 VDC Tested |
| Operating Temperature Horizontal Mount | -30°C to +60°C |
| Operating Temperature Vertical Mount | -30°C to +50°C |
| Module Dimensions | 15 mm Width × 73 mm Height × 58 mm Depth |
| Approximate Weight | 30 g |
Key Features
24VDC 0.5A PNP Output
Standard PNP source output design with 0.5 amp maximum switching capacity per channel at 24 VDC.
Built-In Circuit Diagnostics
Supports open-circuit detection and short-circuit monitoring with module diagnostic status LED.
SIMATIC ET 200SP Compatibility
Designed for integration within Siemens ET 200SP distributed I/O station system architecture.
Backplane Electrical Isolation
Isolation tested to 707 VDC between field output circuits and internal module backplane bus.
Narrow 15mm Form Factor
Compact 15-millimeter width module to save cabinet installation space for multi-I/O expansion layouts.
Applications
- Distributed industrial automation control
- 24VDC actuator switching control
- Industrial solenoid valve actuation
- Indicator light and signal lamp control
- Machine peripheral output signal control
- ET 200SP I/O station expansion
- Factory machinery digital output expansion
- Process equipment signal distribution
Purchase Information
We support online purchase of the Siemens 6ES7132-6BH01-0BA0 Interface Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Siemens 6ES7132-6BH01-0BA0?
Siemens 6ES7132-6BH01-0BA0 is a 16-channel digital transistor output interface module belonging to the SIMATIC ET 200SP distributed I/O product family.
How many digital outputs does 6ES7132-6BH01-0BA0 have?
This module features sixteen independent digital output channels for field device control.
What output voltage and current does this module support?
The module operates at 24 VDC rated voltage with a maximum 0.5 A switching current per PNP output channel.
Is the output type PNP or NPN?
The 6ES7132-6BH01-0BA0 uses PNP source transistor digital outputs for industrial field wiring standards.
Does this module include diagnostic monitoring functions?
Yes, it provides open-circuit detection and short-circuit protection with visual diagnostic LED feedback on the module housing.
What product series does this interface module belong to?
It is engineered exclusively for the SIMATIC ET 200SP distributed I/O station system platform.
What is the operating temperature range for horizontal mounting?
Horizontal installation supports an operating temperature range from -30°C up to +60°C.
What are the physical dimensions of 6ES7132-6BH01-0BA0?
Module dimensions measure 15 mm width, 73 mm height, and 58 mm depth with an approximate weight of 30 grams.
Can this module switch solenoid valves and indicator lights?
Its 24VDC 0.5A PNP output design can drive compatible low-current field actuators after verifying electrical load limits.
What should be checked before ordering 6ES7132-6BH01-0BA0?
Confirm full catalog number, required digital output channel count, ET 200SP base unit compatibility, 24VDC field load requirements and cabinet mounting layout specifications prior to purchase.
Is there electrical isolation between field outputs and backplane bus?
707 VDC isolation testing is implemented between external field circuits and the internal ET 200SP backplane bus interface.
What mounting orientation temperature limits apply for vertical installation?
Vertical mounting limits the maximum operating temperature to +50°C with a minimum of -30°C.
