16 Digital Input Channels
Provides sixteen digital input channels for distributed industrial signal collection under ET 200SP system.

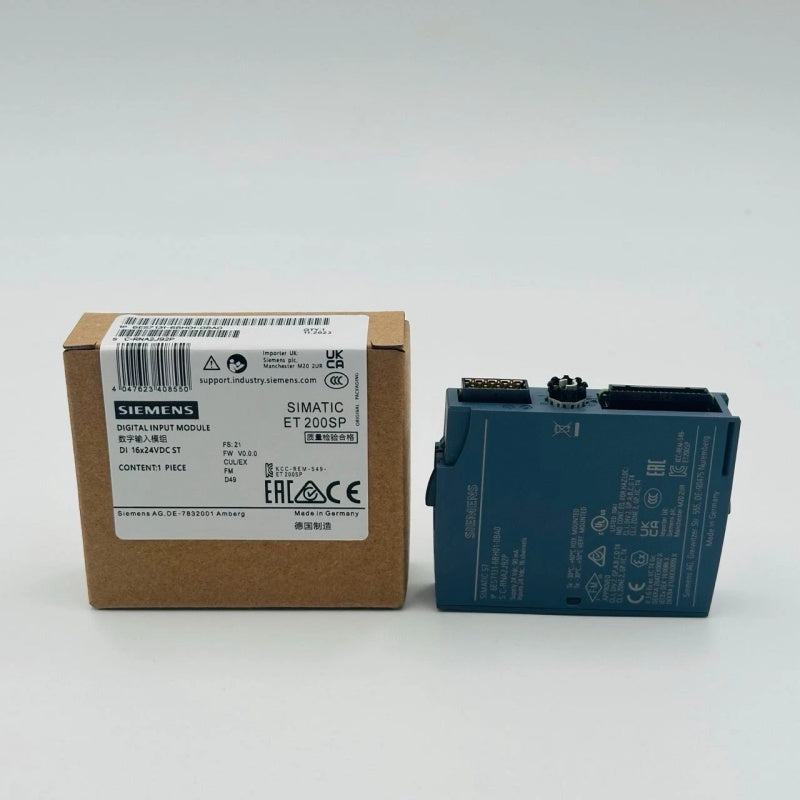

SIEMENS 6ES7131-6BH01-0BA0 Interface Module 16 Channels 24V DC Digital Input
Available in stock (200)
Regular price
$72.93
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7131-6BH01-0BA0 |
| Product Category | Interface Module |
| Product Family | SIMATIC ET 200SP |
| Module Type | Digital Input Module DI 16×24V DC Standard |
| Number of Inputs | 16 |
| Input Voltage | 24 V DC |
| Input Signal Type | Digital |
| Input Compatibility | PNP / NPN Sensors |
| Per Channel Input Current | 2.5 mA Typical |
| Adjustable Filter Delay | 0.05 ms to 20 ms |
| Isolation Rating | 500 V AC Between Channel Group and Backplane |
Key Features
24V DC Digital Input
Designed for standard 24 V DC industrial digital sensor and switch input signals.
PNP/NPN Compatible Input
Supports both PNP and NPN type two-wire and three-wire field sensors for flexible wiring.
Adjustable Input Filter Delay
Configurable channel filter range from 0.05 ms to 20 ms to eliminate contact bounce and electrical noise.
ET 200SP Distributed I/O Series
Standard form factor module matching SIMATIC ET 200SP distributed remote I/O architecture.
Group Electrical Isolation
500 V AC isolation between input channel group and backplane bus to protect control hardware.
Applications
- Distributed industrial digital signal acquisition
- PNP/NPN proximity sensor signal collection
- Machine limit switch status monitoring
- Production line pushbutton input detection
- Packaging equipment I/O expansion
- Factory automation distributed control systems
- Material handling equipment signal monitoring
- PLC remote I/O extension projects
Purchase Information
We support online purchase of the SIEMENS 6ES7131-6BH01-0BA0 Interface Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ES7131-6BH01-0BA0?
SIEMENS 6ES7131-6BH01-0BA0 is a 16-channel standard digital input interface module within the SIMATIC ET 200SP distributed I/O product family.
How many input channels does 6ES7131-6BH01-0BA0 have?
This module comes equipped with 16 independent digital input channels.
What input voltage does 6ES7131-6BH01-0BA0 accept?
The module supports standard 24 V DC digital input signals for industrial field devices.
Is the module compatible with PNP and NPN sensors?
Yes, the input circuit supports connection to both PNP and NPN type industrial digital sensors.
Can input filter timing be adjusted on this module?
Filter delay per channel can be parameterized between 0.05 ms and 20 ms via TIA Portal software configuration.
Does the module include electrical isolation?
500 V AC isolation is implemented between the input channel group and the module backplane bus.
Which product series does 6ES7131-6BH01-0BA0 belong to?
It belongs to the SIEMENS SIMATIC ET 200SP distributed remote I/O system series.
What field devices can connect to this interface module?
It can connect to 24V DC digital sensors, limit switches, pushbuttons and contact feedback signals from industrial machinery after wiring verification.
Is 6ES7131-6BH01-0BA0 interchangeable with 6ES7131-6BH00-0BA0?
6ES7131-6BH01-0BA0 is the updated successor model, with matching pinout, electrical specs and base compatibility; system configuration should be validated before replacement.
What should be checked before ordering 6ES7131-6BH01-0BA0?
Verify complete catalog number, required digital input channel count, ET 200SP system architecture, compatible BU-Type A0 base unit, 24V field signal wiring and TIA Portal software compatibility before purchase.
