24 VAC / 24 VDC Supply
The LOGO! 24RCE supports both 24 VAC and 24 VDC supply configurations within the documented electrical requirements.

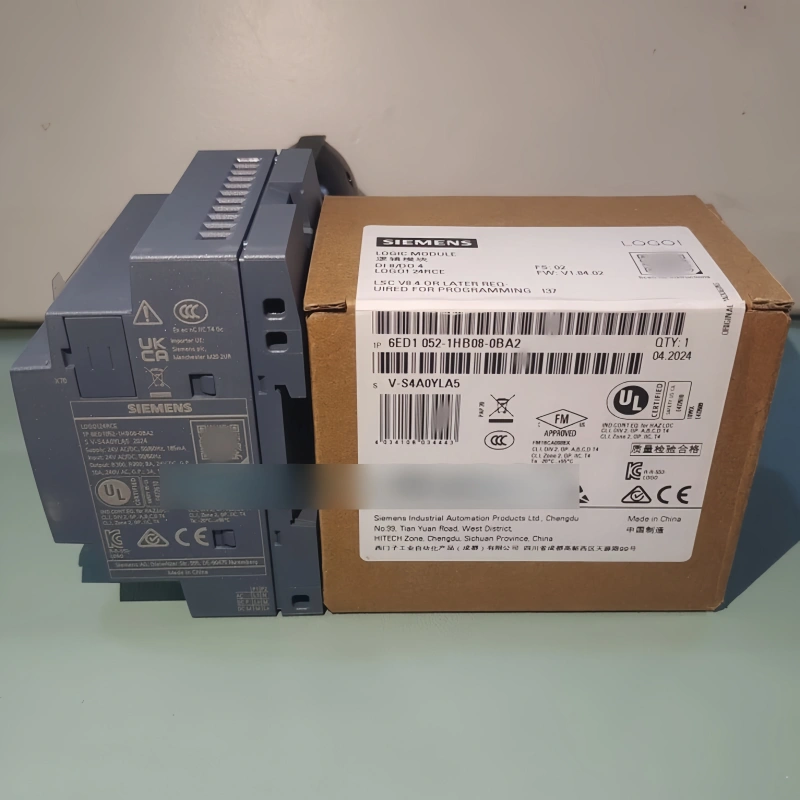

SIEMENS 6ED1052-1HB08-0BA2 Logic Control Module 24VAC/DC 8DI 4DO
Available in stock (400)
Regular price
$112.07
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ED1052-1HB08-0BA2 |
| Product Category | Logic Control Module |
| Product Family | LOGO! 8 |
| Product Designation | LOGO! 24RCE |
| Display | Yes |
| Supply Voltage | 24 VAC / 24 VDC |
| DC Supply Range | 20.4-28.8 VDC |
| Line Frequency | 47-63 Hz |
| Digital Inputs | 8 |
| Digital Outputs | 4 Relay Outputs |
| Program Memory | 400 Blocks |
| Communication | Ethernet |
| Web Server | Integrated |
| Data Logging | Supported |
| Memory Card | Standard microSD Card |
| Mounting | 35 mm DIN Rail, 4 Spacing Units |
| Dimensions (W x H x D) | 71.5 x 90 x 60 mm |
| Protection Rating | IP20 |
Key Features
8 Digital Inputs
The module provides eight digital inputs for receiving discrete control and monitoring signals.
4 Relay Outputs
Four relay outputs are provided for switching applicable external control circuits.
400-Block Program Memory
The documented program capacity supports up to 400 function blocks for LOGO! control applications.
Ethernet Interface
Ethernet communication is integrated for programming, networking and supported communication functions.
Integrated Web Functions
The module includes an integrated web server, data logging and support for user-defined web pages.
Applications
- Machine control applications
- Industrial automation control
- Pump control systems
- Building automation functions
- Lighting control applications
- Time-based control systems
- Small equipment control panels
- Industrial process control tasks
Purchase Information
We support online purchase of the SIEMENS 6ED1052-1HB08-0BA2 Logic Control Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ED1052-1HB08-0BA2?
SIEMENS 6ED1052-1HB08-0BA2 is a LOGO! 24RCE logic control module with display, digital I/O, Ethernet communication and programmable control functions.
What supply voltage does 6ED1052-1HB08-0BA2 use?
The documented supply configuration is 24 VAC or 24 VDC. The permissible DC supply range is 20.4-28.8 VDC.
How many digital inputs does the module provide?
The module provides eight digital inputs.
How many digital outputs are included?
The module provides four relay outputs.
What is the program memory capacity?
The documented program memory capacity is up to 400 function blocks.
Does 6ED1052-1HB08-0BA2 support Ethernet?
Yes. Ethernet communication is integrated into the LOGO! 24RCE module.
Does the module include a web server?
Yes. An integrated web server and support for user-defined web pages are documented for this model.
Can a microSD card be used with this module?
Yes. Siemens documentation identifies support for a standard microSD card.
How is 6ED1052-1HB08-0BA2 mounted?
The module is designed for mounting on a 35 mm DIN rail and occupies four spacing units.
What are the dimensions of 6ED1052-1HB08-0BA2?
The documented dimensions are 71.5 x 90 x 60 mm for width, height and depth.
What applications can 6ED1052-1HB08-0BA2 be considered for?
It can be considered for programmable control tasks in machinery, building systems, pumps, lighting and other automation applications after the required I/O and system requirements have been checked.
What should be checked before ordering 6ED1052-1HB08-0BA2?
Check the complete model number, required supply voltage, digital input and relay output requirements, Ethernet requirements, mounting space and system documentation before ordering.
