24VAC/DC Supply
The ZBVB4 light block is specified for a rated supply voltage of 24 VAC/DC at 50/60 Hz.

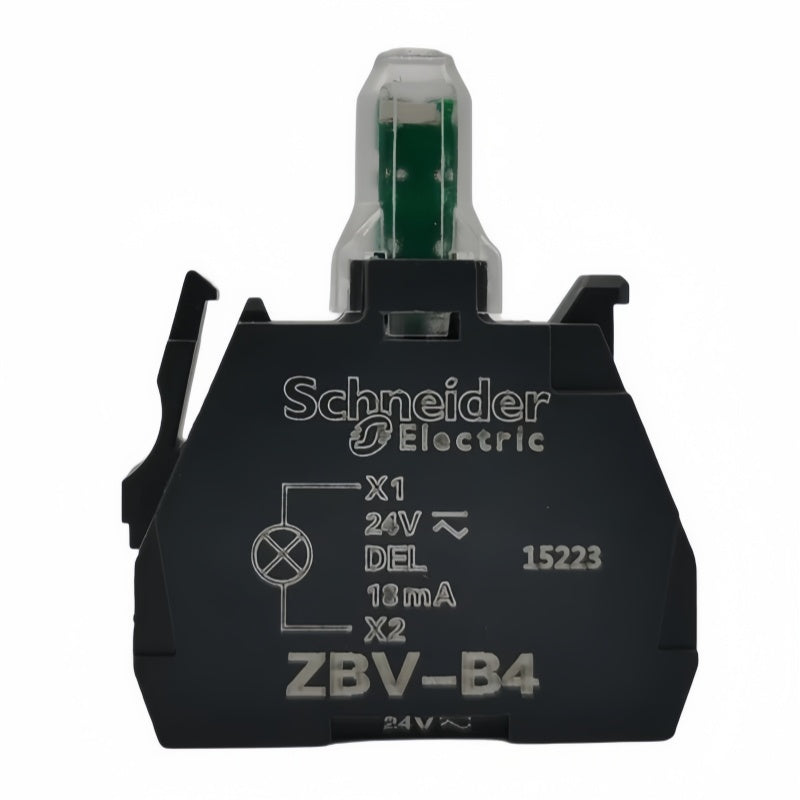

Schneider ZBVB4 Light Block 24VAC/DC Red LED Screw Terminals
Available in stock (200)
Regular price
$11.34
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ZBVB4 |
| Product Category | Light Block |
| Product Range | Harmony XB4 / Harmony XB5 |
| Device Short Name | ZBV |
| Signalling Type | Steady |
| Light Source | Protected LED |
| Bulb Base | Integral LED |
| Light Source Colour | Red |
| Rated Supply Voltage | 24 VAC/DC, 50/60 Hz |
| Supply Voltage Limits | 19.2-30 VDC / 21.6-26.4 VAC |
| Current Consumption | 18 mA |
| Connections | Screw Clamp Terminals |
| Mounting of Block | Front Mounting |
| Surge Withstand | 1 kV |
Key Features
Red Integral LED
The documented configuration uses a protected integral LED with a red light source.
Steady Signalling
Schneider specifies steady signalling for the ZBVB4 light block.
18mA Consumption
The documented current consumption for the ZBVB4 is 18 mA.
Screw Clamp Terminals
The light block uses screw clamp terminals for electrical connection.
Front Mounting
The documented block mounting arrangement is front mounting for supported Harmony operator assemblies.
Applications
- Industrial control panel indication
- Machine status indication
- Operator station signalling
- Automation equipment indication
- Electrical cabinet status display
- Process status indication
- Control circuit visual signalling
- Industrial equipment maintenance projects
Purchase Information
We support online purchase of the Schneider ZBVB4 Light Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ZBVB4?
Schneider ZBVB4 is a Harmony light block with a protected red integral LED for steady visual signalling.
What supply voltage does ZBVB4 use?
The documented rated supply voltage is 24 VAC/DC at 50/60 Hz.
What colour LED does ZBVB4 use?
The documented light source colour is red.
What type of light source is used in ZBVB4?
Schneider specifies a protected integral LED.
What signalling type does ZBVB4 provide?
The documented signalling type is steady.
What is the current consumption of ZBVB4?
The documented current consumption is 18 mA.
What voltage limits are specified for ZBVB4?
The documented supply voltage limits are 19.2-30 VDC and 21.6-26.4 VAC.
What connection type does ZBVB4 use?
The documented configuration uses screw clamp terminals.
How is the ZBVB4 light block mounted?
Schneider specifies front mounting for the light block.
What applications can ZBVB4 be considered for?
It can be considered for industrial control panel indication, machine status signalling, operator stations and other 24 VAC/DC visual indication circuits after the electrical requirements have been checked.
Can ZBVB4 be used with an existing operator assembly?
The complete model number, operator head, mounting arrangement, supply voltage and electrical connection requirements should be verified against the existing assembly before use.
What should be checked before ordering ZBVB4?
Check the complete ZBVB4 model number, 24 VAC/DC supply requirement, red LED requirement, screw clamp terminal arrangement and operator assembly requirements before purchasing.
