Red Integral LED
The XVBC2B4 illuminated unit uses a red integral LED light source for steady visual signalling.

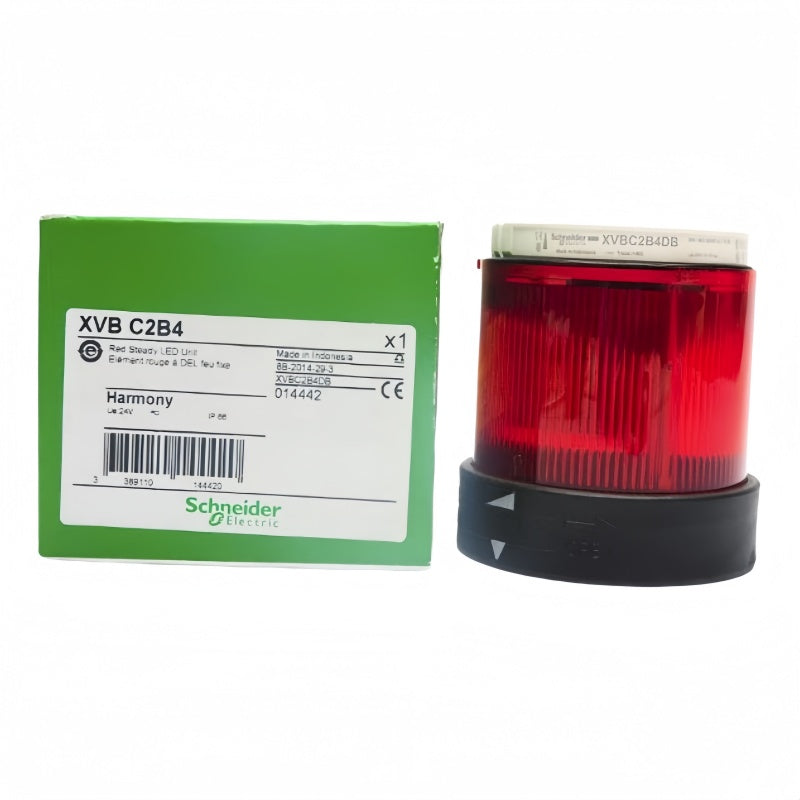

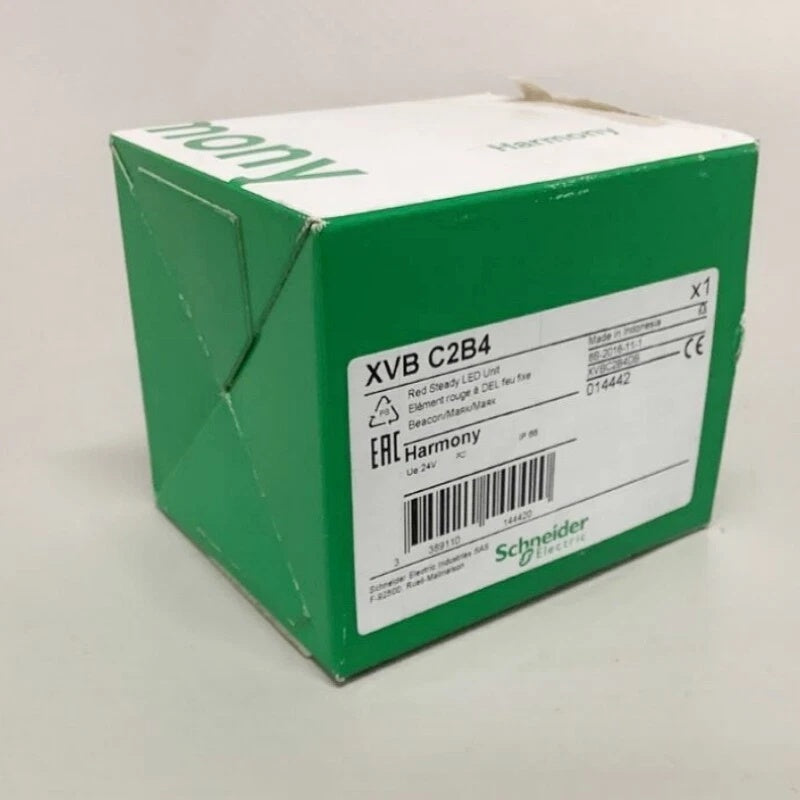

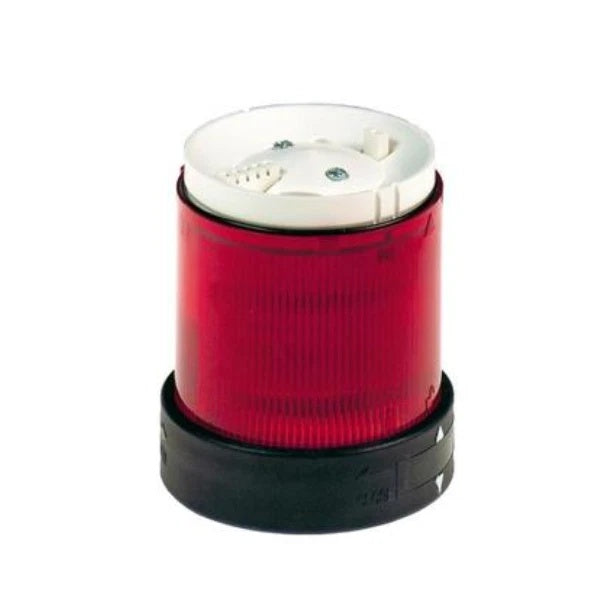

Schneider XVBC2B4 Illuminated Unit Red LED 24V AC/DC 70mm
Available in stock (200)
Regular price
$37.46
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | XVBC2B4 |
| Product Category | Illuminated Unit |
| Product Range | Harmony XVB Universal |
| Component Name | XVBC |
| Signalling Type | Steady |
| Light Source | Red Integral LED |
| Bulb Type | Protected LED |
| Rated Supply Voltage | 24 V AC/DC |
| Mounting Diameter | 70 mm |
| Material | Polycarbonate |
| Assembly Style | Customer Assembly, Up to 5 Units |
| Connections | Screw Clamp Terminals |
| Rated Insulation Voltage | 250 V |
| Current Consumption | < 47 mA AC/DC |
| Rated Impulse Withstand Voltage | 4 kV |
| Dimensions | 70 × 63 × 70 mm |
| Product Weight | 0.15 kg |
Key Features
24 V AC/DC Supply
The documented rated supply voltage is 24 V AC/DC for integration into applicable industrial signalling circuits.
70 mm Harmony XVB
The unit belongs to the Harmony XVB Universal range and has a documented mounting diameter of 70 mm.
Steady Signalling
The XVBC2B4 is configured for steady visual indication rather than a flashing signalling mode.
Modular Assembly
Schneider specifies customer assembly of up to five units within the applicable Harmony XVB modular configuration.
Screw Clamp Terminals
Electrical connections are provided through documented screw clamp terminals for the signalling unit.
Applications
- Industrial machine status indication
- Control panel visual signalling
- Production line status indication
- Automation equipment signalling
- Machine operating state indication
- Industrial process status signalling
- Assembly equipment indication
- Material handling system signalling
Purchase Information
We support online purchase of the Schneider XVBC2B4 Illuminated Unit. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XVBC2B4?
Schneider XVBC2B4 is a Harmony XVB illuminated signalling unit with a red integral LED and steady light output.
What is the rated supply voltage of XVBC2B4?
The documented rated supply voltage is 24 V AC/DC.
What color is the XVBC2B4 signalling light?
The unit uses a red integral LED light source.
What signalling mode does XVBC2B4 use?
The XVBC2B4 provides steady visual signalling.
What is the mounting diameter of XVBC2B4?
The documented mounting diameter is 70 mm.
Which Schneider product range includes XVBC2B4?
The XVBC2B4 belongs to the Harmony XVB Universal range.
What material is used for XVBC2B4?
Schneider specifies polycarbonate as the material for the unit.
What connection type does XVBC2B4 use?
The unit uses screw clamp terminals for electrical connections.
What is the current consumption of XVBC2B4?
Schneider specifies current consumption below 47 mA AC/DC.
Can multiple XVB units be assembled together?
Schneider documentation specifies customer assembly of up to five units for the applicable Harmony XVB configuration.
Can XVBC2B4 be mixed with Harmony XVB7 modules?
No. Schneider states that XVB and XVB7 modules are not interoperable, so the complete signalling configuration should be checked before selecting components.
What should be checked before ordering XVBC2B4?
Check the complete model number, 24 V AC/DC supply, red steady LED requirement, 70 mm Harmony XVB configuration, terminal arrangement and complete signalling assembly requirements before purchasing.
