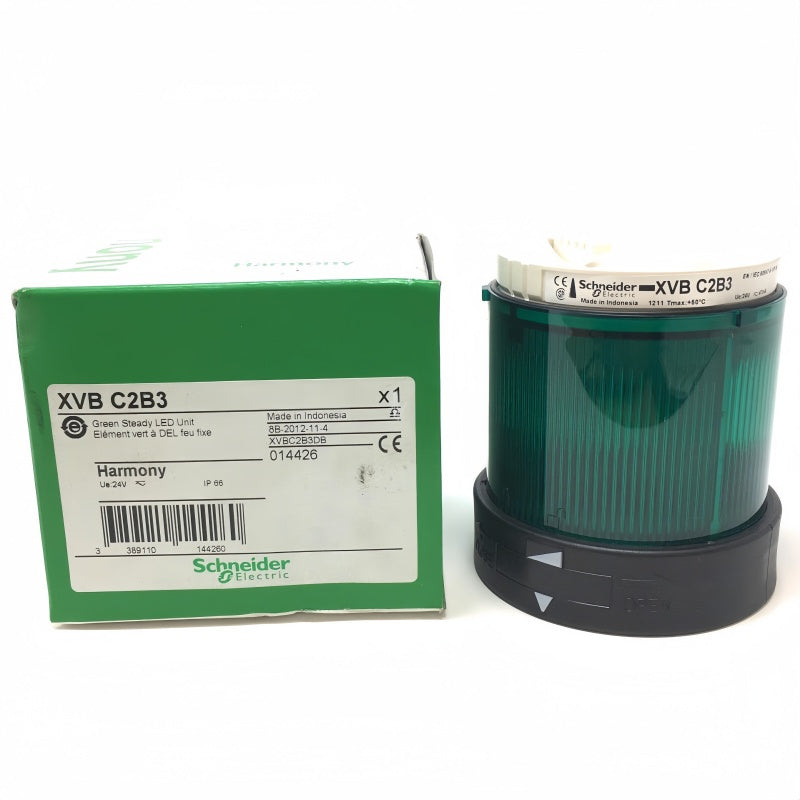

Green Integral LED
XVBC2B3 uses a green integral protected LED as its light source for visual machine-status signalling.
1 / 7
Schneider
Schneider XVBC2B3 Harmony XVB Series Modular Signal Light
PRODUCT PRICE
USD
$29.49
0 pcs / pack
Currently unavailable
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | XVBC2B3 |
| Product Category | Illuminated Unit |
| Product Range | Harmony XVB Universal |
| Component Name | XVBC |
| Signalling Type | Steady |
| Light Source | Green Integral LED |
| Bulb Type | Protected LED |
| Rated Supply Voltage | 24 V AC/DC |
Key Features
24 V AC/DC Supply
The illuminated unit operates from a rated 24 V AC/DC supply with current consumption below 47 mA AC/DC.
Steady Signalling
The XVBC2B3 provides a steady green visual indication rather than a flashing signal.
70 mm Harmony XVB Format
The unit belongs to the Harmony XVB Universal range and uses the 70 mm modular indicator-bank format.
Modular Assembly
Schneider specifies customer assembly of up to five units within the applicable Harmony XVB modular configuration.
Screw Clamp Connection
Electrical connection is provided through screw clamp terminals supporting up to one 1.5 mm² conductor with cable end.
Applications
- Industrial machine status indication
- Production equipment signalling
- Automation system visual indication
- Machine control panels
- Assembly line status signalling
- Material handling equipment indication
- Industrial process status indication
- Modular tower light assemblies
Purchase Information
We support online purchase of the Schneider XVBC2B3 Illuminated Unit. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XVBC2B3?
Schneider XVBC2B3 is a Harmony XVB Universal illuminated unit for modular indicator-bank and tower-light assemblies.
What color is the XVBC2B3 light?
The unit uses a green integral LED.
Does XVBC2B3 provide steady or flashing signalling?
XVBC2B3 provides steady visual signalling.
What supply voltage does XVBC2B3 use?
The rated supply voltage is 24 V AC/DC.
What is the current consumption?
Schneider specifies current consumption below 47 mA AC/DC.
What is the mounting diameter?
The product uses the 70 mm Harmony XVB format.
What material is used for XVBC2B3?
Schneider specifies polycarbonate material for the illuminated unit.
How is XVBC2B3 electrically connected?
The unit uses screw clamp terminals supporting up to one 1.5 mm² conductor with cable end.
How many units can be assembled?
Schneider specifies customer assembly of up to five units for the applicable Harmony XVB configuration.
What are the dimensions of XVBC2B3?
The documented overall dimensions are approximately 70 mm wide, 63 mm high and 70 mm deep.
What certifications are documented?
The product data sheet lists CCC, CSA C22-2 No 14, GOST and UL 508 certifications and EN/IEC 60947-5-1 as the applicable standard.
What should be checked before ordering XVBC2B3?
Check the XVBC2B3 model number, green steady LED requirement, 24 V AC/DC supply, 70 mm Harmony XVB format, terminal requirements and the configuration of the existing signalling assembly before purchasing.
